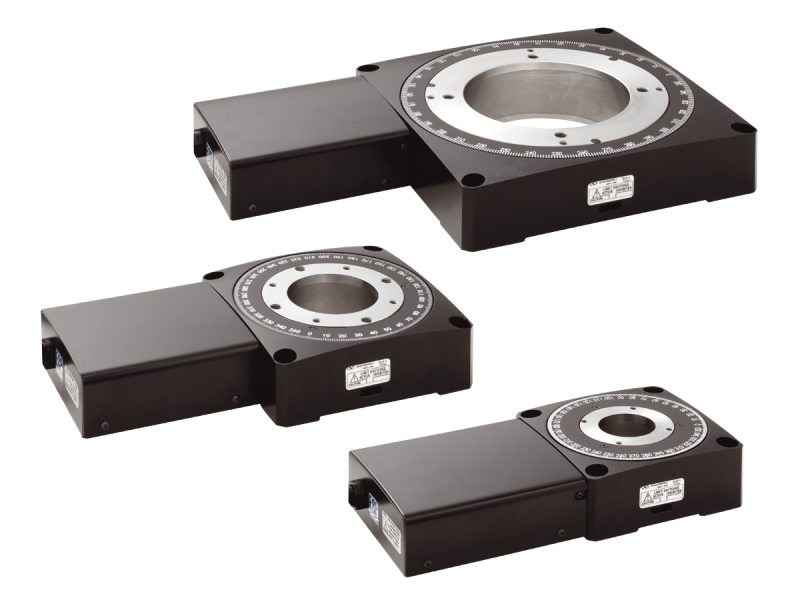

The URS family of rotation stages provides 360° continuous motion in a low profile package and is suitable for research and industrial applications needing precision performance at an affordable cost. This stage’s closed-loop DC motor system makes it the recommended choice for applications that require higher accuracy and bi-directional repeatability. Also, rotation speeds of up to 80°/sec are available on most models.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
URS50BCC Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS50 |
In Stock
|
$3,766 |
|
|||
|
URS75BCC Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS75 |
In Stock
|
$5,206 |
|
|||
|

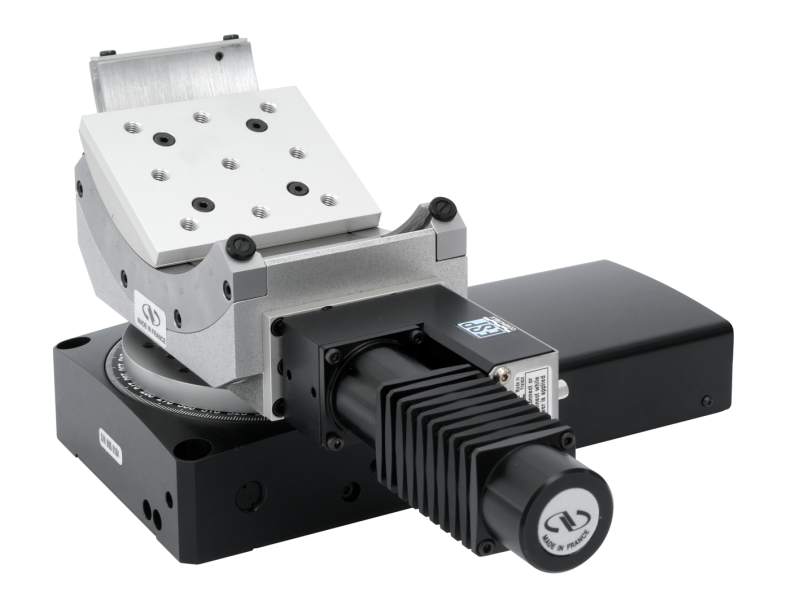

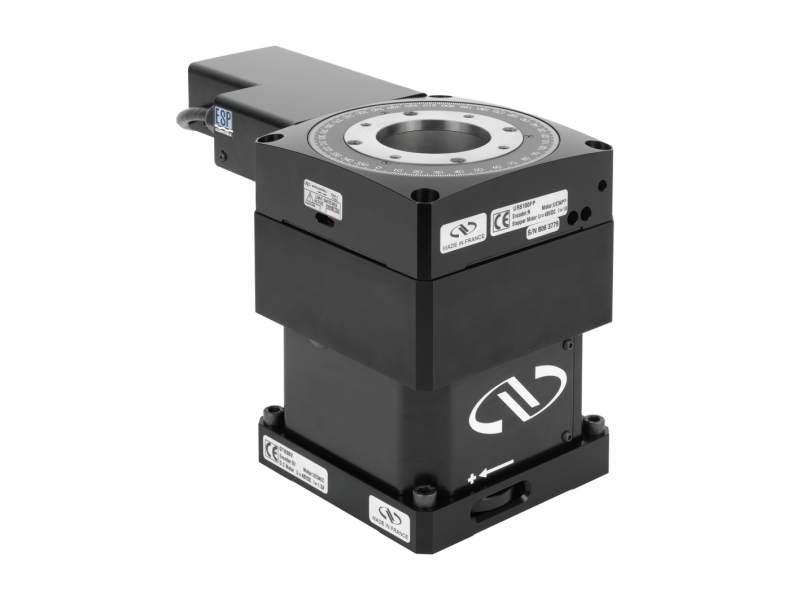

URS100BCC Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS100 |
In Stock
|
$5,543 |
|
|||
|
URS150BCC Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS150 |
In Stock
|
$6,204 |
|
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Angular Range | 360° | 360° | 360° | 360° | |
| Maximum Speed | 20°/s | 80°/s | 80°/s | 80°/s | |
| Maximum Torque | 0.25 N·m | 0.5 N·m | 1 N·m | 2 N·m | |
| Centered Load Capacity | 100 N | 200 N | 300 N | 300 N | |
| Thread Type | M3 | M3 | M6 | M6 | |
| Minimum Incremental Motion | 1.0 mdeg | 2.0 mdeg | 2.0 mdeg | 2.0 mdeg | |
| Uni-directional Repeatability, Guaranteed | ±1.0 mdeg | ±1.0 mdeg | ±1.0 mdeg | ±1.0 mdeg | |
| Bi-directional Repeatability, Guaranteed | ±2.0 mdeg | ±3.0 mdeg | ±3.0 mdeg | ±3.0 mdeg | |
| Accuracy, Typical | ±10 mdeg | ±6 mdeg | ±6.0 mdeg | ±6.0 mdeg | |
| Accuracy, Guaranteed | ±20 mdeg | ±11.5 mdeg | ±11.5 mdeg | ±11.5 mdeg | |
| Wobble, Typical | ±12 µrad | ±12 µrad | ±12 µrad | ±12 µrad | |
| Wobble, Guaranteed | ±25 µrad | ±25 µrad | ±25 µrad | ±25 µrad | |
| Eccentricity, Typical | ±3.0 µm | ±0.30 µm | ±0.40 µm | ±0.50 µm | |
| Transversal Compliance | 100 µrad/N·m | 30 µrad/N·m | 10 µrad/N·m | 5 µrad/N·m | |
| Origin Repeatability | ±25 mdeg | ±0.25 mdeg | ±0.25 mdeg | ±0.25 mdeg | |
| Cable Length | 3 m | 3 m | 3 m | 3 m | |
| Aperture Diameter | 25.7 mm | 30 mm | 50 mm | 90 mm | |
| Weight | 0.7 kg | 1.7 kg | 2 kg | 3.4 kg | |
| MTBF | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | |
| RoHS |
The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS-B stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to guarantee a backlash free operation.
The URS75BCC, URS100BCC and URS150BCC feature an ultra-high resolution 8,000 cts/rev rotary encoder with index pulse for precision homing and are recommended for applications requiring accurate bi-directional positioning. For the tightest position control, the rotary encoder is mounted directly on the worm screw. This eliminates most of the possible error sources associated with indirect read feedback devices. The high torque of some DC motor versions provides the highest dynamic speed range and allows for rotating speeds up to 80°/sec. The URS50BCC is the smallest version, and its motor encoder feature provides a very compact and easy to integrate version which can rotate up to 20°/s with 100 N maximum load capacity.

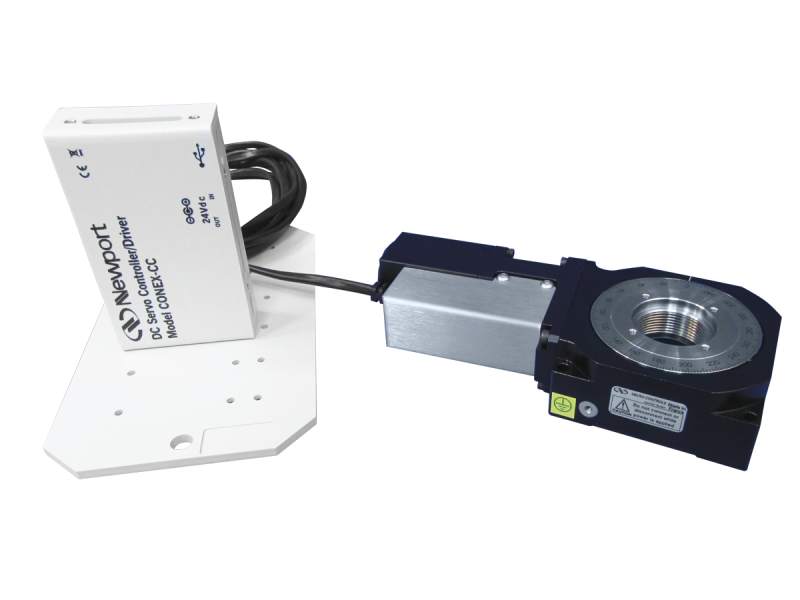

Newport also offers a version of the DC motor, 25.7-mm aperture rotary stage with integrated CONEX controller, the
All URS-B rotation stages feature a proprietary ball bearing to provide a low-profile compact stage with exceptional stiffness, high reliability and low wobble and eccentricity.
Except for the URS50 version, all URS stages feature adjustable limit switches to prevent over travel.
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Compatible motion controllers for these stepper motor driven stages are:
