Mounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes
Mounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes
Model: URS100TP
Product Series Overview

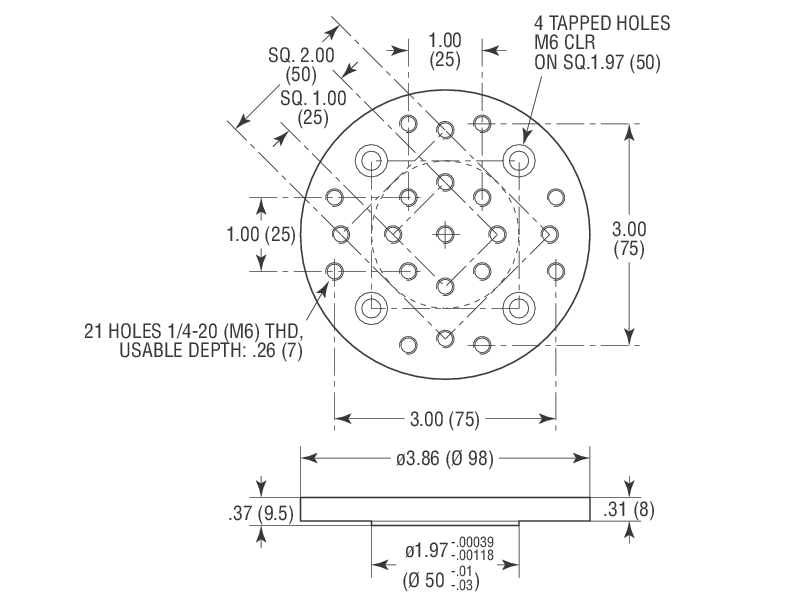

Base and Top Plates for Motorized StagesThe URS100TP Mounting Plate is a solid top mounting plate for the URS100 rotation stage. It has (21) 1/4-20 threaded holes, and (4) M6 CLR tapped holes.
Resources & Downloads
Other
URS100TP RoHS Certificate(278.3 kB, PDF)
Technical Notes
URS Rotation Stages Limit Switches Position Change(124 kB, PDF)
