Mounting Plate, Solid Top, URS75 Series, 1/4-20 Threaded Holes

Base and Top Plates for Motorized Stages

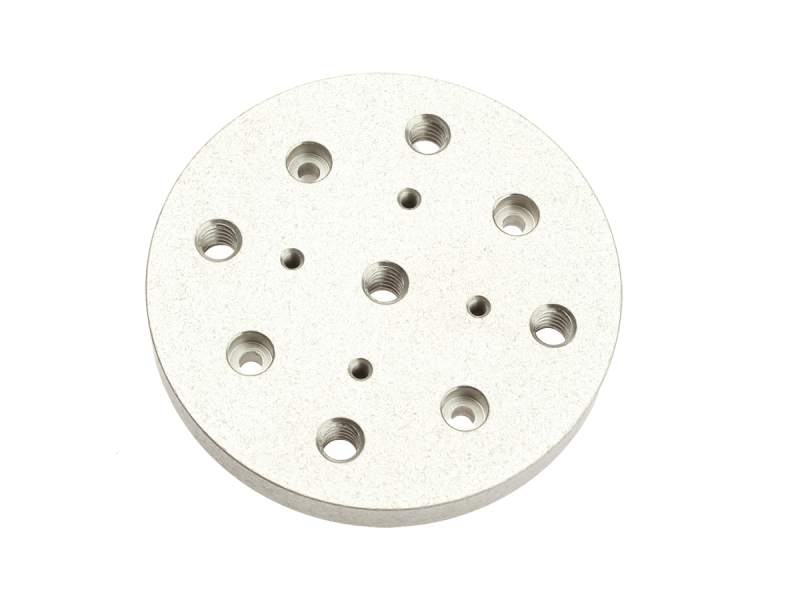

The URS75TP Mounting Plate is a solid top mounting plate for the URS75 rotation stages. The top plate has (5) 1/4-20 threaded holes, and (4) M6 CLR tapped holes for mounting.

Specifications

Technical Specs

Material
Stainless Steel

Material
Stainless Steel

Resources & Downloads

Other

URS75TP RoHS Certificate(277.9 kB, PDF)

2D Product Drawings

URS75TP(388.3 kB, PDF)

Literature

URS Data Sheet.pdf(2.8 MB, PDF)
