Mounting Plate, Solid Top, URS100 Series, M6 Threaded Holes
Mounting Plate, Solid Top, URS100 Series, M6 Threaded Holes
Model: M-URS100TP
Product Series Overview

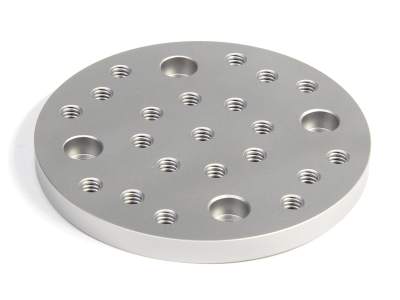

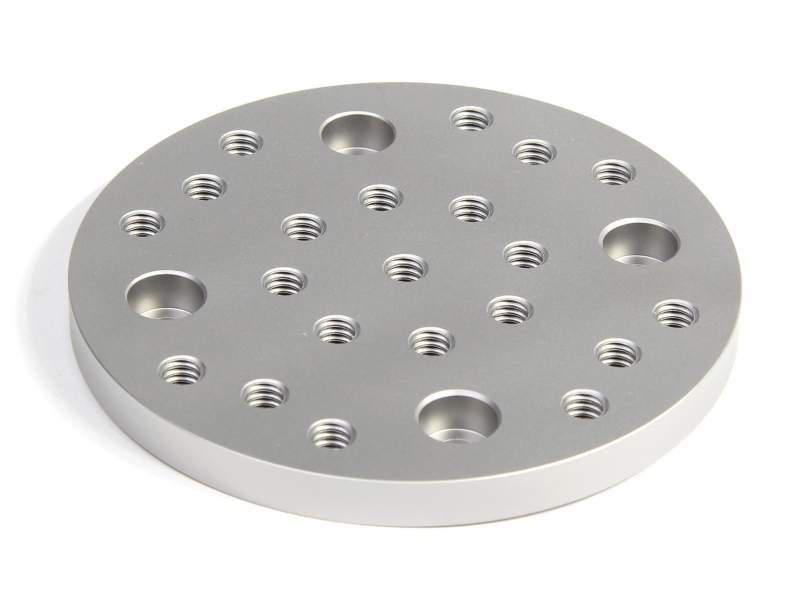

Base and Top Plates for Motorized StagesThe M-URS100TP Mounting Plate is a solid top mounting plate for the URS100 rotation stage. It has (21) M6 Metric Threaded holes, and (4) M6 CLR Tapped holes.
Resources & Downloads
Other
M-URS100TP RoHS Certificate(278.5 kB, PDF)
2D Product Drawings
M-URS100TP(398.2 kB, PDF)
