V-Groove Registered Variable Size Lens Mounts

Universal lens mounts provide a single holder for many different sizes of lenses in a convenient one-size-fits-all design.

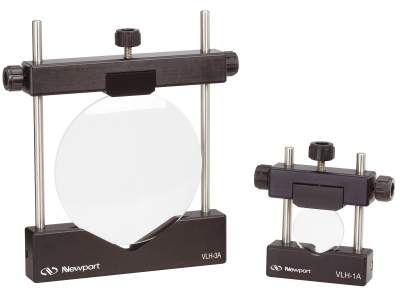

One mount for 6.3 to 91.4 mm lenses
Kinematic V-groove lens registration

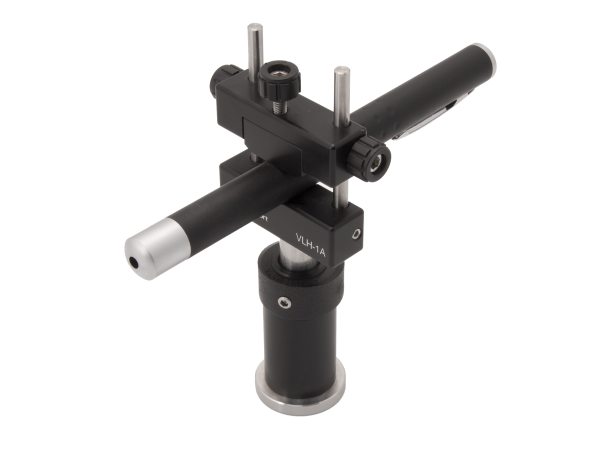

Holds thin lenses or cylindrical-shaped lens barrels

See All Features

Show Filters:

Showing 2 of 2 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Optic Diameter	Adjustments	Type	Thread Type	Avail.	Price
		VLH-1AV-Groove Lens Holder, 0.25 to 1.25 in. Diameter Lenses	UNIVERSAL		6.3-31.8 mm	Fixed	Variable Size Lens Mount	8-32 (M4) CLR	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$164
		VLH-3AV-Groove Lens Holder, 0.60 to 3.60 in. Diameter Lenses	UNIVERSAL		15.2-91.4 mm	Fixed	Variable Size Lens Mount	8-32 (M4) CLR	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$180

Features

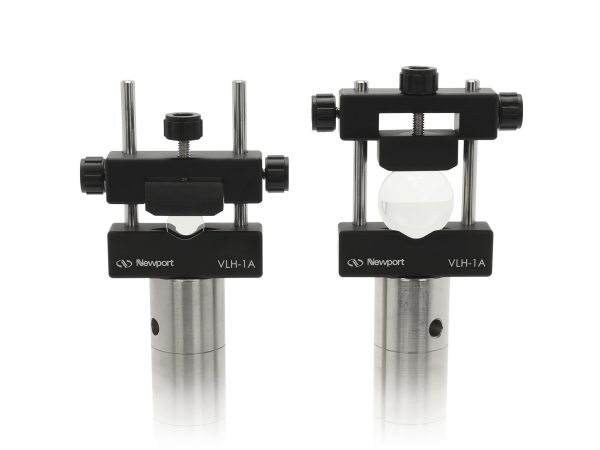

One Size Fits All

The VLH V-Groove Lens Holders can hold optics of almost any size or configuration. Optics are automatically registered and held gently, but firmly, between a kinematically designed V-shaped mounting base and a Delrin V-block that is secured into place using the top thumbscrew. The top crossbar slides along the guide rods smoothly without jamming or wobbling and locks easily into place by turning the side thumbscrews.
