Opti-Claw Self-Centering Variable Size Lens Mounts
Opti-Claw Self-Centering Variable Size Lens Mounts

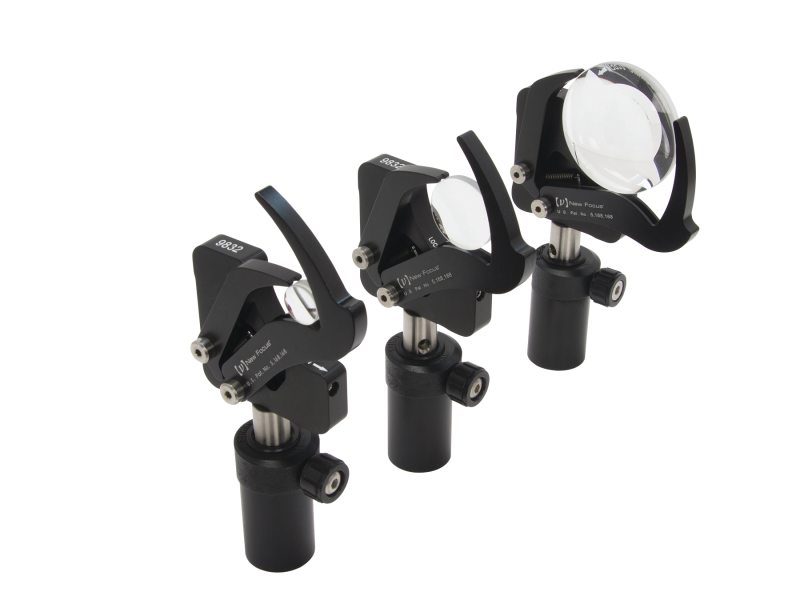

With the unique Opti-Claw mount, you won’t have to adjust the height of the mount every time you want to use a different-diameter optic. This clever mount automatically centers any optic with a diameter from 0.10 inch (2.5 mm) to 2.0 inch (50.8 mm) to within 0.005 inch.
- Self-centering mechanism deal for swapping optics quickly
- Great for round or square optics
- Locking screw provides secure hold
- Fixed or tilting versions See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9832Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9832-MOpti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, M4 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9854Opti-Claw Mount, Tilting.1 to 2.0 in., 3 Knob Adjustment | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9872-KOpti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key Adjustment | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9872-K-VOpti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key, Vacuum |
Specifications
| Models | | | | | | |
|---|---|---|---|---|---|---|
| Optic Diameter | 2.5-50.8 mm | 2.5-50.8 mm | 2.5-50.8 mm | 1.5-16 mm | 1.5-16 mm | |
| Edge Thickness (Te) | 3.00 to 8.87 mm | 3.00 to 8.87 mm | ||||
| Optical Axis Height | 50.8 mm | 50.8 mm | 50.8 mm | 15.9 mm | 15.9 mm | |
| Adjustments | Fixed | Fixed | Z θXθY | Z θXθY | Z θXθY | |
| Thread Type | 8-32 | M4 | 8-32 (M4) CLR | 2-56 (M2) CLR | 2-56 (M2) CLR | |
| Material | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Stainless Steel | Stainless Steel |
Features
Automatically Self Centering

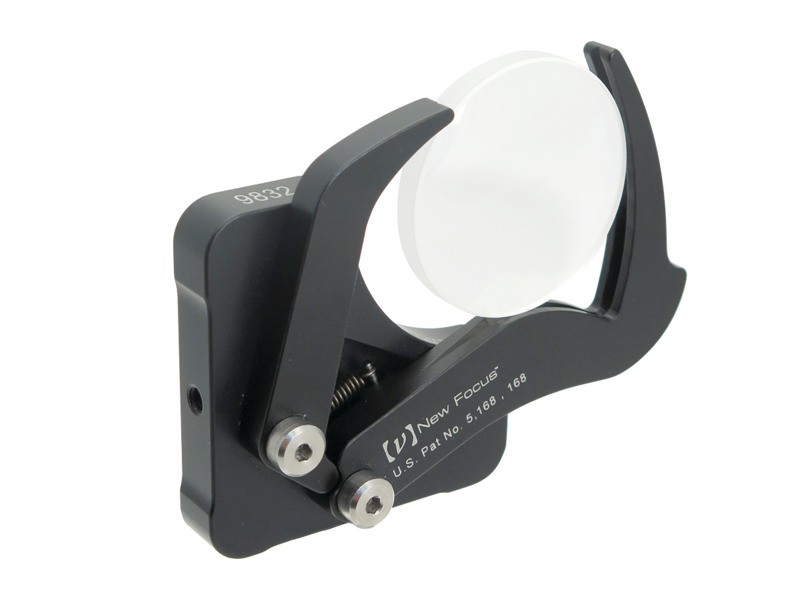

The self aligning movement of the of Opti-Claw's V-clamp keeps lenses on a common optical axis regardless of diameter.

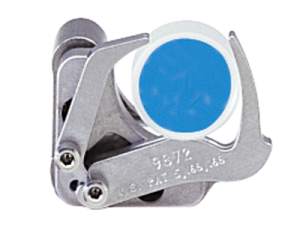

Tiny Opti-Claw mount model 9872-K

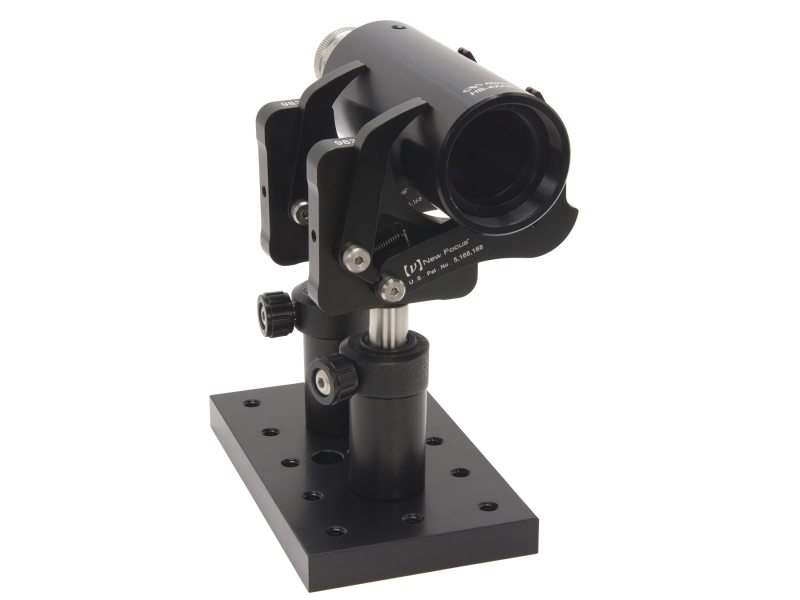

Holds More Than Just Lenses

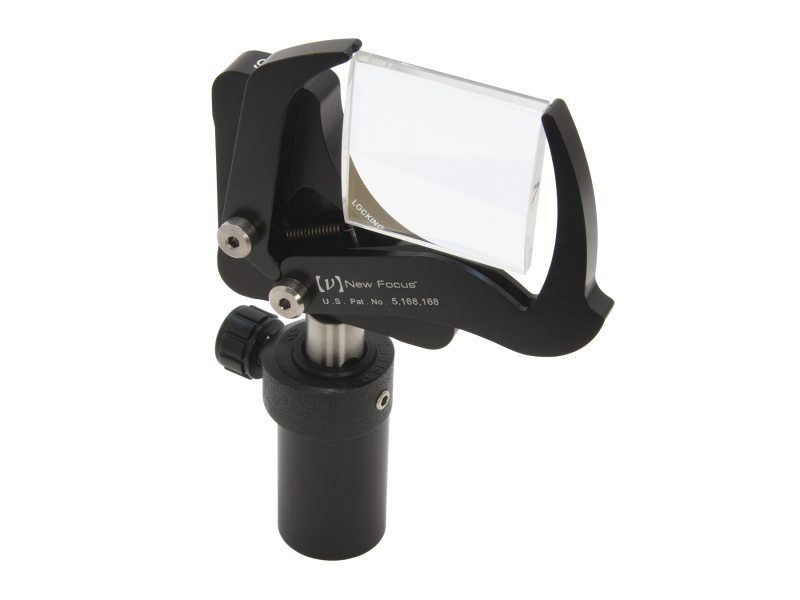

The 3-point optic mount on the Opti-Claw allows it to hold square or cylindrical optics in addition to round lenses.
Lenses Held as Firm as Fixed Lens Mounts
Once in place, a setscrew locks the jaws solidly as a fixed-diameter mount by pushing them against the mounting plate.
