Top Adjust Gimbal Mirror Mounts
Top Adjust Gimbal Mirror Mounts

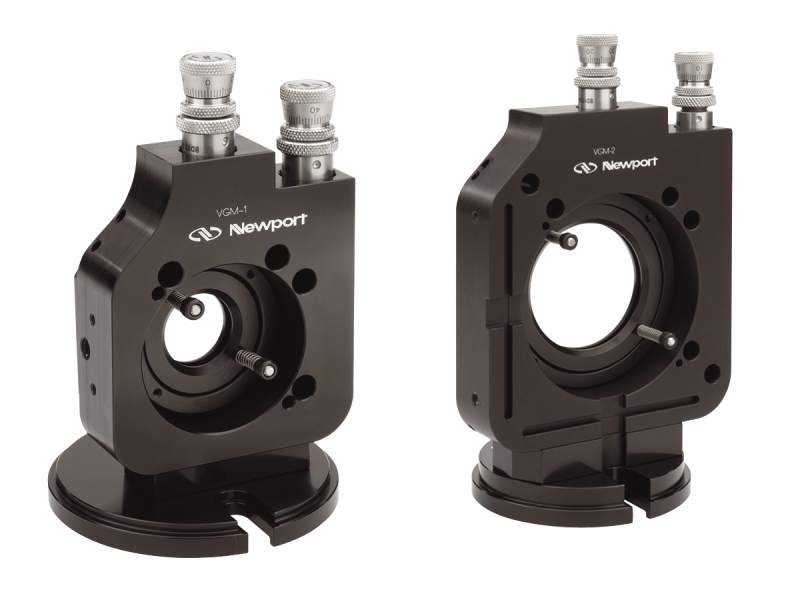

With both drives accessible from the top side, VGM Series top-adjust gimbal mounts are ideal for applications where adjustments must be performed without obstructing the beam path, such as laser-cavity mirrors, output couplers and beamsplitters.
- Adjustment without obstructing the beam path
- True gimbal motion
- Exchangeable actuators
- Low stress mirror mounting mechanism See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | VGM-1N | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | VGM-1AJS | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| VGM-1BM | In Stock | ||||
 | VGM-2N | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | VGM-2AJS | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| VGM-2BM | In Stock |
Features
Keep Your Hands Out of Harms Way
Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.
Your Choice of Actuator - Or Not
VGM series Top-Adjust Gimbal Mounts are offered in three choices. For applications requiring a user-supplied actuator, VGM mounts can be ordered without actuators.
| Model | Included Actuators |
|---|---|
| -AJS | AJS100-0.5 |
| -BM | BM17.04N |
| -N | N/A |
