Standard Polarization Maintaining Fibers

Our Polarization Maintaining (PM) fibers are designed to give the highest levels of polarization maintenance for wavelengths from 480nm to greater than 1650nm. We offer both Bow-Tie and PANDA type PM fiber. Both the Bow-tie and the PANDA PM fiber have a step index profile.

Bow-Tie and PANDA™ polarization maintaining fibers
Bow-Tie is highly birefringent
Short beat-lengths and strong PER maintaining
Broad wavelength ranges

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Fiber Type	Operating Wavelength	Numerical Aperture	Mode Field Diameter, Nominal	Maximum Attenuation	Avail.	Price
F-HB1500PM Optical Fiber, Bow-Tie, 1550-1650 nm, 0.14-0.18 NA.	UNIVERSAL	Bow-Tie Polarization Maintaining	1550 - 1650 nm	0.14 - 0.18	7.0 - 9.2 µm @1550 nm	2 dB/km @1550 nm	Contact Us	$22/meter
F-HB750Bow-Tie Polarization Maintaining Fiber, 780-830 nm, 0.14-0.18 NA.	UNIVERSAL	Bow-Tie Polarization Maintaining	780 - 830 nm	0.14 - 0.18	3.5 - 4.6 µm @780 nm	8 dB/km @780 nm	In Stock	$22/meter
F-PM1550Polarization Maintaining Optical Fiber, Panda, 1550 nm, 0.10-0.13 NA	UNIVERSAL	Panda Polarization Maintaining	1550 nm	0.10 - 0.13	10.0 - 11.0 µm @1550 nm	0.5 dB/km @1550 nm	Contact Us	$18.20
F-PM480Polarization Maintaining Optical Fiber, Panda, 480 nm, 0.10-0.13 NA	UNIVERSAL	Panda Polarization Maintaining	480 nm	0.10 - 0.13	3.5 - 4.5 µm @480 nm	30 dB/km @480 nm	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$53/meter
F-PM630Polarization Maintaining Optical Fiber, Panda, 630 nm, 0.10-0.13 NA	UNIVERSAL	Panda Polarization Maintaining	630 nm	0.10 - 0.13	4.0 - 5.0 µm @630 nm	12 dB/km @630 nm	In Stock	$40
F-PM850Polarization Maintaining Optical Fiber, Panda, 850 nm, 0.10-0.13 NA	UNIVERSAL	Panda Polarization Maintaining	850 nm	0.10 - 0.13	5.0 - 6.0 µm @850 nm	3.0 dB/km @850 nm	Contact Us	$50
F-PM980Polarization Maintaining Optical Fiber, Panda, 980 nm, 0.10-0.13 NA	UNIVERSAL	Panda Polarization Maintaining	980 nm	0.10 - 0.13	6.1 - 7.1 µm @980 nm	2.5 dB/km @980 nm	Contact Us	$23/meter
F-SPAPolarization Maintaining Fiber, Bow-Tie, 488-633 nm, 0.10-0.13 NA	UNIVERSAL	Bow-Tie Polarization Maintaining	488 - 633 nm	0.10 - 0.13	3.0 - 4.1 µm @488 nm	100 dB/km @488 nm	In Stock	$17/meter
F-SPFPolarization Maintaining Optical Fiber, Bow-Tie, 830-1060 nm, 0.14-0.18 NA.	UNIVERSAL	Bow-Tie Polarization Maintaining	830 - 1060 nm	0.14 - 0.18	3.7 - 4.9 µm @830 nm	5 dB/km @830 nm	In Stock	$20/meter
F-SPVPolarization Maintaining Fiber, Bow-Tie, 633-780 nm, 0.14-0.18 NA.	UNIVERSAL	Bow-Tie Polarization Maintaining	633 - 780 nm	0.14 - 0.18	2.8 - 3.7 µm @633 nm	15 dB/km @633 nm	In Stock	$19/meter

Specifications

Index Profile
Step
Cladding Diameter
125 ±1 µm
Coating Diameter
245 ±15 µm (F-PM630: 400 ±15 µm)
Cable Diameter
2.5 mm

Cut-off Wavelength
See product page
Buffer Coating Material
Dual Acrylate
Proof Test
100 kpsi

Features

Bow-Tie Polarization Maintaining Fiber

The core is flanked by areas of high expansion, boron-doped glass, which shrink back more than the surrounding silica. Tension caused induces birefringence (creating two different indices of refraction: a higher index parallel and a lower index perpendicular to the applied stress).

Cross section diagram of the Bow-Tie Polarization Maintaining Fiber.

High Birefringence

"Bow-Tie" cladding preserves polarization with stress-induced intrinsic birefringence. The fast axis is oriented horizontally.

“Bow-Tie” cladding preserves polarization with stress-induced intrinsic birefringence. The fast axis is oriented horizontally.

Large Wavelength Range and Short Beat Lengths

These Bow-tie polarization maintaining fibers, also known as highly birefringent (HiBi) fibers, are optimized for Visible through NIR wavelengths and have a beat-length of less than 2 mm. The beat-length, the length over which the fiber polarization rotates through 360°, is one of the fundamental performance measures: the shorter the beat-length, the better the polarization-preserving properties of the fiber.

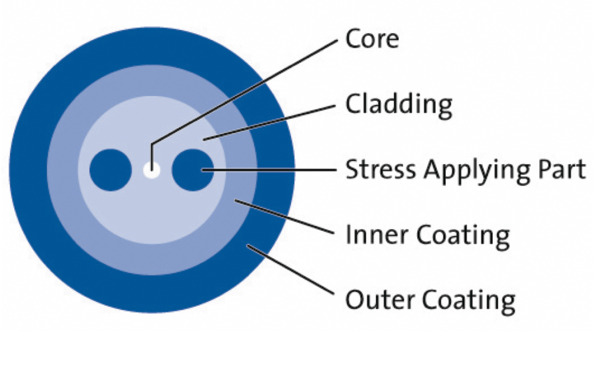

Corning's PANDA Polarization Maintaining Fiber

Corning's PANDA polarization maintaining fibers offer low attenuation and excellent birefringence for high performance applications. Their design uses two stress applying parts to create an extremely high birefringence, resulting in fiber with excellent polarization maintaining properties. The operating wavelengths range from 480 to 1550 nm with beat lengths ranging from less than 1.7 to 5 mm.

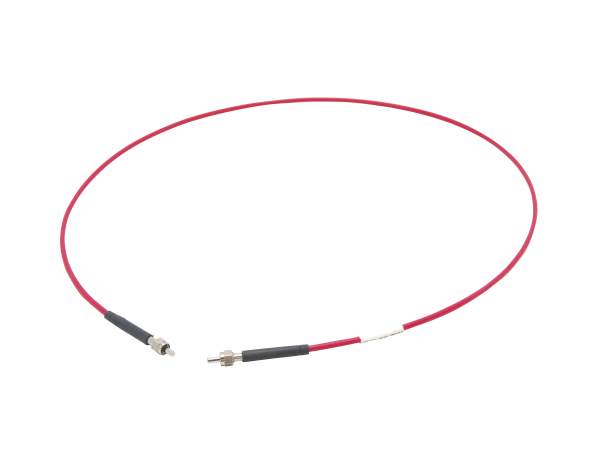

Standard and Custom Patch Cables

Standard patch cables are available in several standard lengths with FC/UPC or FC/APC connectors. Please note that slow axis is accurately aligned to the connector key. If you need custom configuration, please use our custom patch configurator model:

Applications

High-data-rate communications systems
Polarization-sensitive components
Raman amplifiers
Fiber optic sensors - polarimetric, polarization state sensing
Gyroscopes
Coherent transmission and detection
Interferometric sensors
Modulators
Delay lines
Spectroscopy
Biomedical applications

Note on Fiber Length Availability

Due to increasing supply constraints, obtaining fiber lengths greater than 1 km has become more challenging. If you require fiber longer than 1 km, please contact us directly to discuss availability and lead times.
