Polarization Beam Combiner/Splitter
Polarization Beam Combiner/Splitter

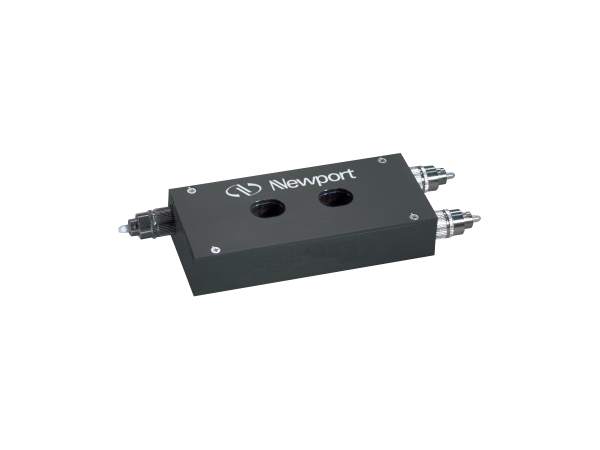

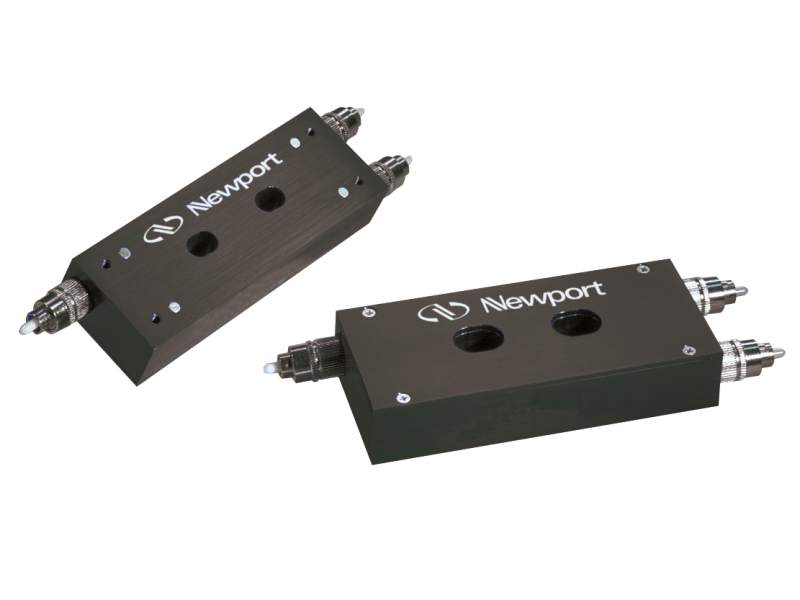

Newport's F-PBC Series Polarization Beam Combiner/Splitters can be used to combine light from two PM input fibers into a single SMF-28 output fiber, or to separate the orthogonal polarization components of an input signal between two output fibers.
- High Power Handling
- Low Insertion Loss
- Rugged No-Pigtail Design See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-PBC-15-PM-FPPolarization Beam Combiner, Splitter, 1550 nm, PM Input, FC/PC. | In Stock | ||||
| F-PBC-15-SM-FAPolarization Beam Combiner, Splitter, 1550 nm, SMF-28 Input, FC/APC. | In Stock |
Specifications
- TypePolarization Beam Combiner
- Center Wavelength1550 nm
- Extinction Ratio22 dB
- Typical Insertion Loss0.4 dB
- Maximum Insertion Loss0.6 dB
- Return Loss50 dB
- Maximum Optical Power500 mW
- Center Wavelength Tolerance40 nm
- Operating Temperature-5 to 70°C
- Dimensions88.9 x 38.1 x 15.9 mm
Features
Rugged Bulkhead Design
These rugged devices are designed with bulkhead connectors (no fiber pigtails). Without pigtails, these device make handling much easier as users do not need to worry about fragile fibers. We also minimize the fiber length inside the device to nearly eliminate environmental effects.
Superior Performance
These devices feature best in class performance in insertion loss, back reflection, and extinction ratio - all at an attractive price. They have a wide operation bandwidth and high power handling capability as well.
Applications
- EDFA and Raman Amplifiers
- Polarization Division Mux/DeMux
- R & D
- Fiber Sensor Systems
- Fiber Laser Systems
Resources
Literature
Polarization Maintaining Couplers(312.3 kB, PDF)
