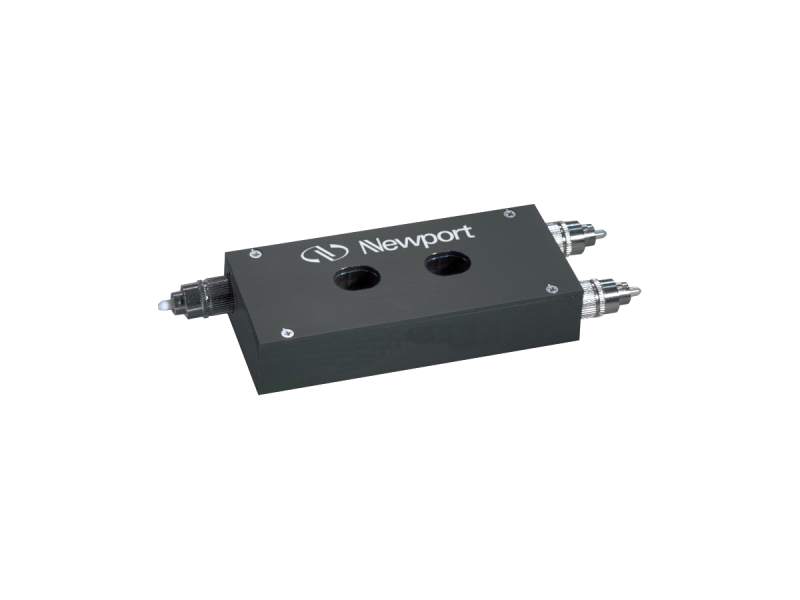

Polarization Beam Combiner, Splitter, 1550 nm, SMF-28 Input, FC/APC.

The F-PBC-15-SM-FA Polarization Beam Combiner/Splitters can be used to combine light from two PM input fibers into a single SMF-28 output fiber, or to separate the orthogonal polarization components of an input signal between two output fibers. These rugged bulkhead devices use FC/APC connectors and have a wide operation bandwidth and high power handling capability. They feature best in class performance in insertion loss, back reflection, and extinction ratio - all at an attractive price.

While supplies last!

Specifications

Technical Specs

Type
Polarization Beam Combiner
Wavelength Range
1550 nm
Center Wavelength
1550.0
Fiber Type
Single Mode
Fiber Connector
FC/APC
Extinction Ratio
22 dB
Typical Insertion Loss
0.4 dB
Maximum Insertion Loss
0.6 dB

Return Loss
50 dB
Maximum Optical Power
500.0 mW
Center Wavelength Tolerance
40 nm
Operating Temperature
-5 to 70°C
Dimensions
88.9 x 38.1 x 15.9 mm

Type
Polarization Beam Combiner
Wavelength Range
1550 nm
Center Wavelength
1550.0
Fiber Type
Single Mode
Fiber Connector
FC/APC
Extinction Ratio
22 dB
Typical Insertion Loss
0.4 dB
Maximum Insertion Loss
0.6 dB

Return Loss
50 dB
Maximum Optical Power
500.0 mW
Center Wavelength Tolerance
40 nm
Operating Temperature
-5 to 70°C
Dimensions
88.9 x 38.1 x 15.9 mm
