Precision Cylindrical N-BK7 Lens Sets

Made from fine annealed glass and polished to tight tolerances, N-BK7 cylindrical lenses focus or expand light within a single axis only. The Cylindrical Lens Kits give convenient access to lenses in a range of focal lengths, an ideal addition to any research laboratory.

Research quality lenses in convenient focal lengths
≤λ/2 surface irregularity in Y, λ/4/cm in X
40-20 scratch-dig
Broadband or laser line AR coatings
Standard sizes and focal lengths
Available in rectangular shapes

See All Features

Show Filters:

Showing 8 of 8 total products

Compatibility:

Description	Compatibility	Lens Material	Antireflection Coating	Avail.	Price
CKIT-1-PMaster Cylindrical Lens Set, N-BK7, Includes 13 Lenses, Uncoated	UNIVERSAL	Grade A N-BK7	Uncoated	Contact Us	$3,859
CKIT-1AR.14-PMaster Cylindrical Lens Set, N-BK7, Includes 13 Lenses, 430-700nm	UNIVERSAL	Grade A N-BK7	430-700 nm	In Stock	$4,902
CKIT-1AR.16-PMaster Cylindrical Lens Set, N-BK7, Includes 13 Lenses, 650-1000nm	UNIVERSAL	Grade A N-BK7	650-1000 nm	Contact Us	$5,383
CKIT-1AR.18-PMaster Cylindrical Lens Set, N-BK7, Includes 13 Lenses, 1000-1550 nm	UNIVERSAL	Grade A N-BK7	1000-1550 nm	Contact Us	$5,383
CKIT-2-PCylindrical Lens Set, Introductory, N-BK7, Inc. 5 Lenses, Uncoated	UNIVERSAL	Grade A N-BK7	Uncoated	Contact Us	$1,627
CKIT-2AR.14-PCylindrical Lens Set, Introductory, N-BK7, Inc. 5 Lenses, 430-700nm	UNIVERSAL	Grade A N-BK7	430-700 nm	Contact Us	$2,082
CKIT-2AR.16-PCylindrical Lens Set, Introductory, N-BK7, Inc. 5 Lenses, 650-1000nm	UNIVERSAL	Grade A N-BK7	650-1000 nm	Contact Us	$2,254
CKIT-2AR.18-PCylindrical Lens Set, Introductory, N-BK7, Inc. 5 Lenses, 1000-1550nm	UNIVERSAL	Grade A N-BK7	1000-1550 nm	Contact Us	$2,332

Features

N-BK7 Master Set

These lens sets provide a comprehensive selection of lens shapes and focal lengths in N-BK7 optical glass. Plano-convex lenses are provided with focal lengths from 25.4 to 300 mm. Plano-concave lenses are provided with focal lengths from -75 to -200 mm.

N-BK7 Introductory Set

These lens sets provide a more economical selection of lenses that can be expanded as required. Like the BK 7 Master Sets, the lenses in these sets are made from quality N-BK7 optical glass. Only plano-convex lenses are included with focal lengths from 25.4 to 200 mm.

Model	Included Plano-convex Cylindrical Lenses	Included Plano-concave Cylindrical Lenses
CKIT-1	CKX025, CKX038, CKX050, CKX062, CKX075, CKX100, CKX150, CKX200, CKX300	CKV075, CKV100, CKV150, CKV200
CKIT-2	CKX025, CKX050, CKX100, CKX150, CKX200

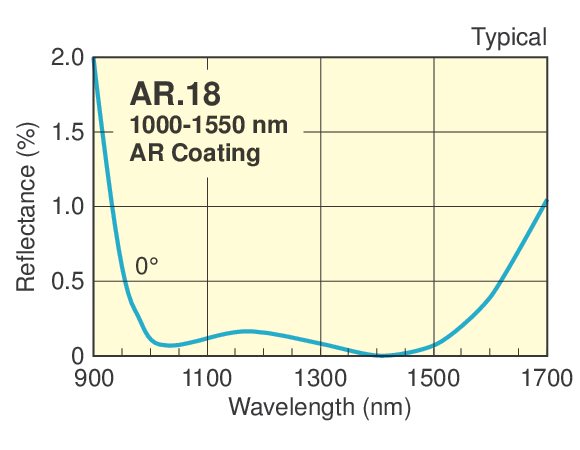

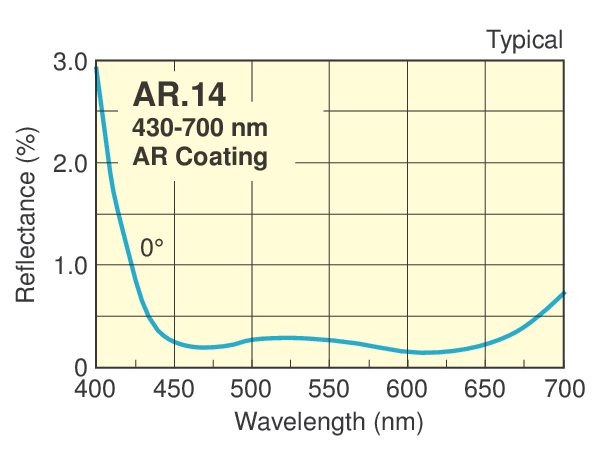

Antireflection Coatings

Antireflection coatings can significantly improve the transmission of a multi-element optical system. Any of our broadband AR coatings are available as standard lens kit options. Laser line V-coatings are also available on request.
