Adjustable Cylindrical Lens Mount
Adjustable Cylindrical Lens Mount
The CYM-2R can hold and position cylindrical optics as large as 2-in in height. What makes this mount unique is its ability to rotate a cylindrical optic about its center. This feature eliminates unwanted translation during rotation of the power axis.
- Rotates cylindrical lens about its center
- Adaptors for many cylindrical lens sizes
- 6 arc-sec sensitivity
- ±5° rotation range See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CYM-2RCylindrical Lens Mount, Adjustable, 50.8 mm Max, +/- 5 Deg., 2 arcs sec | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- UseCylindrical Lens Rotation
- Maximum Height50.8 mm
- Maximum Width60.5 mm
- Adjustmentsθz
- Adjustment Screw Thread100 TPI
- Angular Range±5 °
- Sensitivity2 arc sec
Features

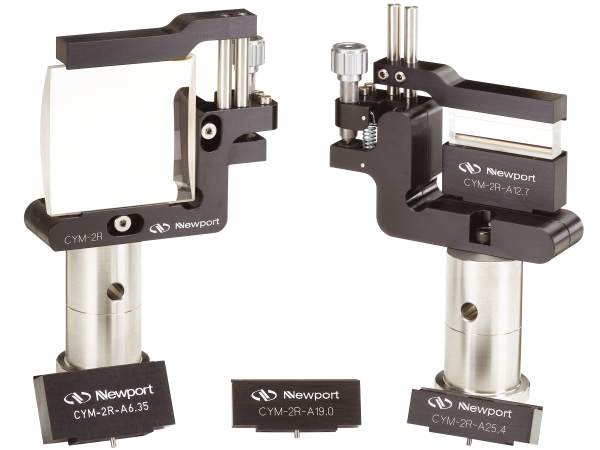

Adaptors Keep Optical Axis Centered to Rotation Axis
Adaptors are available to mount 1/4 in., 1/2 in., 1 in. and 19 mm high cylindrical optics. Each one of these adaptors places the center of the cylindrical lens at the axis of rotation and has a location pin for quick installation.
Provides On-center Roll Adjustment
The CYM-2R rotates a cylindrical optic about its center. This feature eliminates unwanted translation of the lens during rotation of the power axis.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CYM-2R-A25.4Cylindrical Lens Adapter, 25.4 mm Lens, CYM-2R Mount | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CYM-2R-A6.35Cylindrical Lens Adapter, 6.35 mm Lens, CYM-2R Mount | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CYM-2R-A12.7Cylindrical Lens Adapter, 12.7 mm Lens, CYM-2R Mount | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CYM-2R-A19.0Cylindrical Lens Adapter, 19.0 mm Lens, CYM-2R Mount | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
