Microlens Arrays
Microlens Arrays

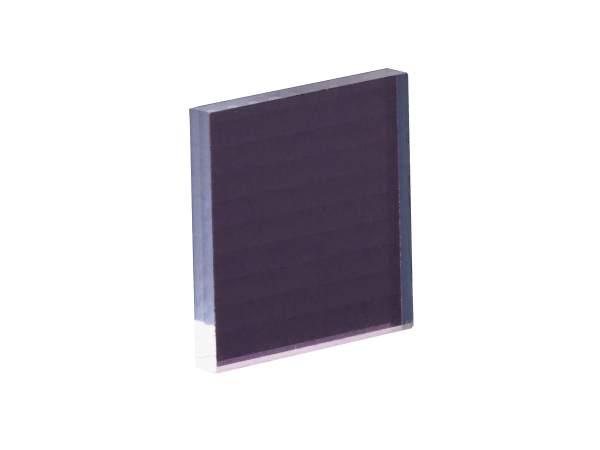

A microlens array is commonly used for homogenizing and shaping a variety of modern light emitters ranging from a line-narrowed excimer lasers to high power LEDs. These lenslet arrays are manufactured using photolithographic techniques based on semiconductor processing technology, yielding exceptionally accurate microlens profiles and lens array positioning.
- UV Fused Silica suitable for homogenizing excimer lasers
- 10 mm x 10 mm lens array size
- High fill factor which eliminates zero-order hot spots
- Square grid arrangement of microlens See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MALS10Micro Lens Array, 10 x 10mm, 300 µm Pitch, 18.8 mm FL, ±0.50° | 4 Weeks | ||||
| MALS11Micro Lens Array, 10 x 10mm, 300 µm Pitch, 8.7 mm FL ,±1.00° | In Stock | ||||
| MALS12Micro Lens Array, 10 x 10mm, 300 µm Pitch, 5.1 mm FL, ±1.60° | 2 Weeks | ||||
| MALS13Micro Lens Array, 10 x 10mm, 300 µm Pitch, 4.8 mm FL, ±2.00° | In Stock | ||||
| MALS14Micro Lens Array, 10 x 10mm, 500 µm Pitch, 46.7 mm FL, ±0.25° | 4 Weeks | ||||
| MALS15Micro Lens Array, 10 x 10mm, 500 µm Pitch, 32.8 mm FL, ±0.25° | 4 Weeks | ||||
| MALS17Micro Lens Array, 10 x 10mm, 500 µm Pitch, 15.3 mm FL ,±1.00° | In Stock | ||||
| MALS18Micro Lens Array, 10 x 10mm, 500 µm Pitch, 13.8 mm FL, ±1.20° | In Stock |
Features
Versatile Focal Length & Pitch Options
Microlens arrays are available in 8 focal lengths ranging from 4.8 mm to 32.8 mm. Depending on selected focal length and pitch (intralens spacing), divergence angles are available between ±0.25° and ±2°.
Manufactured Using Photolithography
These microlens arrays are manufactured using photolithographic techniques based on semiconductor processing technology. The microlens arrays yield exceptionally accurate shaping of the lens profile and precise positioning of the lenses.
