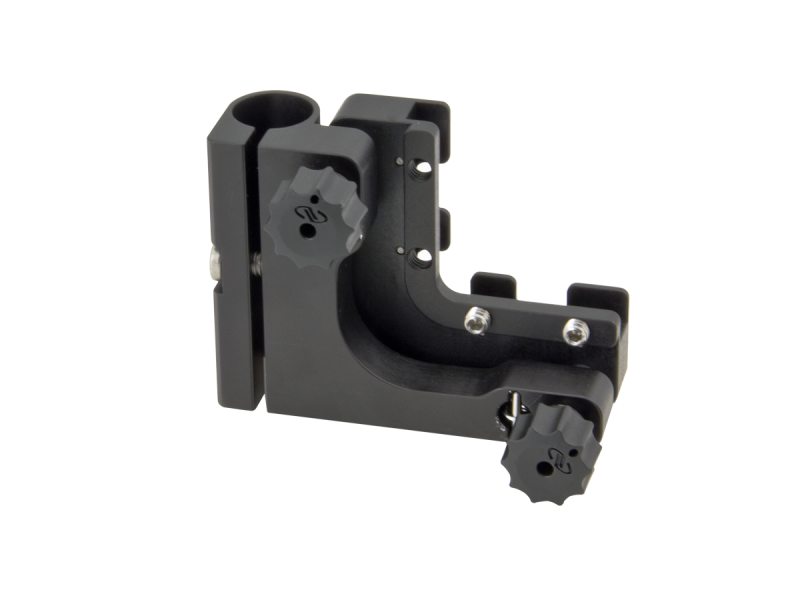

Square Optic Mount, Side-Clamp, 0.25 Thick, 2 Knob Actuators

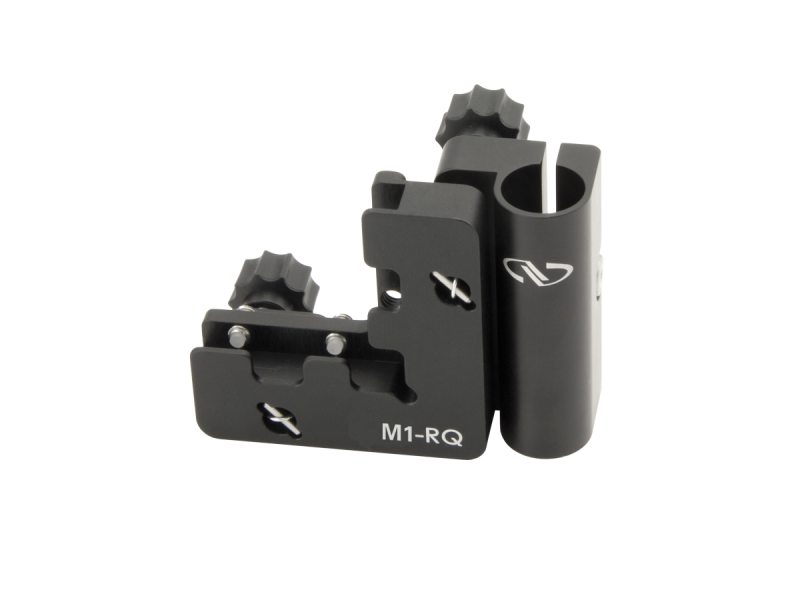

The M1-RQ is made for mounting square optical elements and has a unique integrated post clamp for mounting to standard 0.5 in. (12.7 mm) optical posts. With this mounting mechanism, post holders are no longer required for providing height adjustment; rather, you simply mount directly to a standard post. The side-mounted clamp allows the mirror mount to slide over the full length of the post from table surface level to the top of the post. This wide height-adjustment range is simply not achievable using a standard post and post holder. Mounting this way also allows M1-RQ mirror mounts to be vertically stackable to enable space saving configurations. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment. The clamping screw can be tightened with either a 5/64 in. ( 2 mm) Allen wrench.
