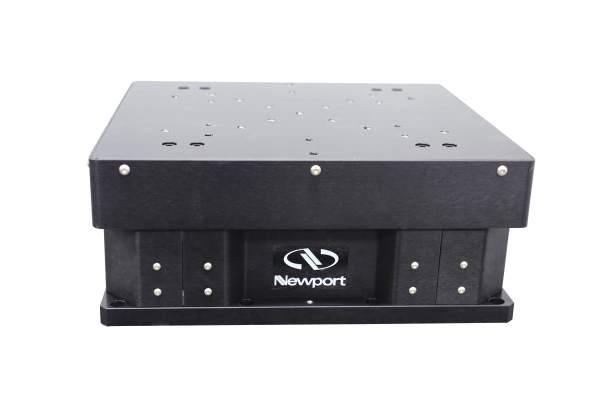

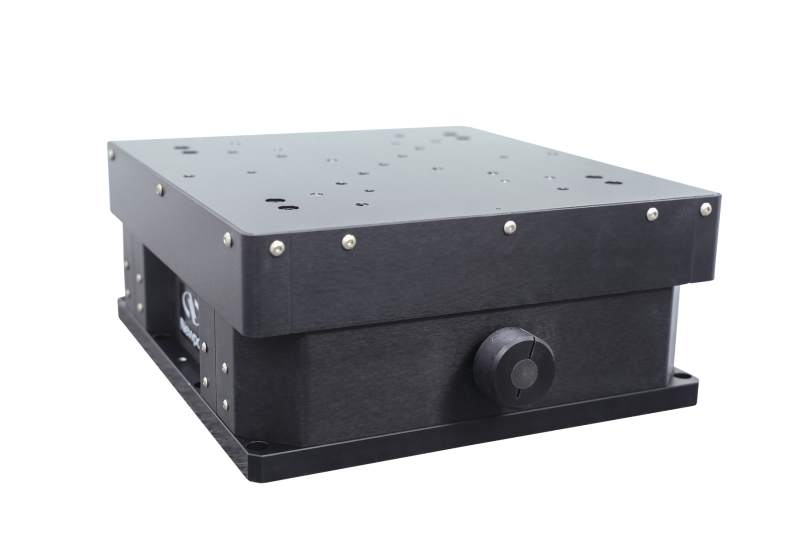

IDL-V Industrial Vertical Stages
IDL-V Industrial Vertical Stages
The IDL-V series was developed for industrial applications that require a high load capacity vertical axis to carry the work. It features sub-micron minimum incremental motion, smooth motion and stiff construction.
- Built for industrial applications
- Up to 500 N load capacity with unobstructed access to the payload from any direction
- Stiff construction
- Fine positioning See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

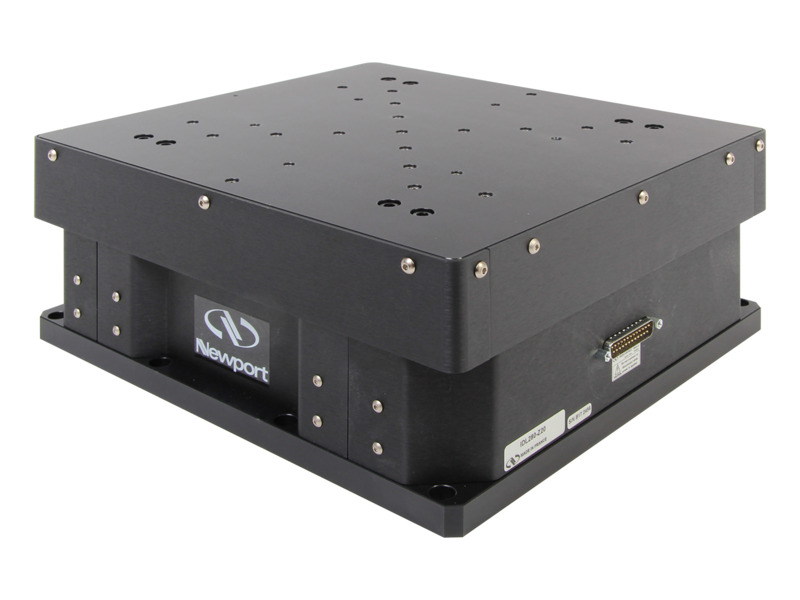

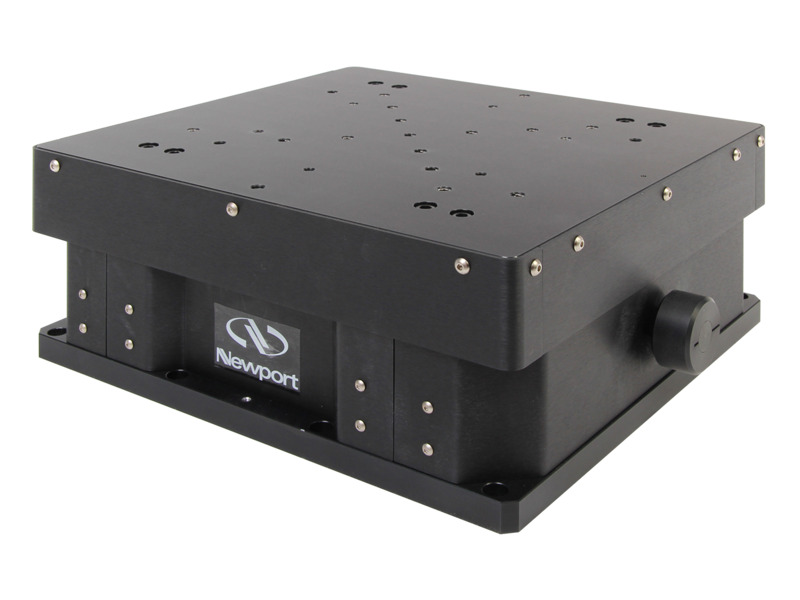

 | IDL280-Z20Motorized Vertical Stage, Industrial Grade, 20 mm Travel | In Stock |
Compatible Controllers
Compatible motion controllers for the IDL280-Z20 vertical stage are:
- XPS-RLD Motion Controller (
or Axis): Requires an Driver Module. - XPS-D Motion Controller (
, , or Axis): Requires an Driver Module.
The maximum power consumption is 50 W.
Specifications
- Travel Range20 mm
- Minimum Incremental Motion0.1 µm
- Maximum Speed5 mm/s
- Centered Load Capacity500 N
- Accuracy, Guaranteed±2 µm (over full travel)
- Bi-directional Repeatability, Guaranteed±0.6 µm
- Uni-directional Repeatability, Guaranteed±0.1 µm
- Drive MechanismPrecision ball screw
- Drive Screw Pitch2 mm
- BearingsDouble row recirculating ball bearings
- Reduction GearBelt gear 1:4 + Wedge 1:2
- Base MaterialAnodized Alumnimum
- FeedbackScrew-mounted rotary encoder, 5,000 cts/rev, index pulse
- Encoder Resolution50 nm
- Limit SwitchesOptical
- OriginOptical, at center of travel, including mechanical zero signal
- Origin Repeatability±0.5 µm
- ConnectorsDB25
- Pitch, Guaranteed±50 µrad
- Roll, Guaranteed±50 µrad
- Cable Length3 m
- Weight32 lbs. (14.5 kg)
- MTBF20,000 h (25% load, 30% duty cycle)
- RoHSCompliant
Features
Industrial-Level Build and Performance
With a focus on high throughput, heavy load capacity, and extreme durability, the IDL-V vertical stage has been designed for the most rigorous demands of precision industrial laser microprocessing. For other travel ranges or sizes, please contact Newport.
Matched to IDL Linear Translation Stages

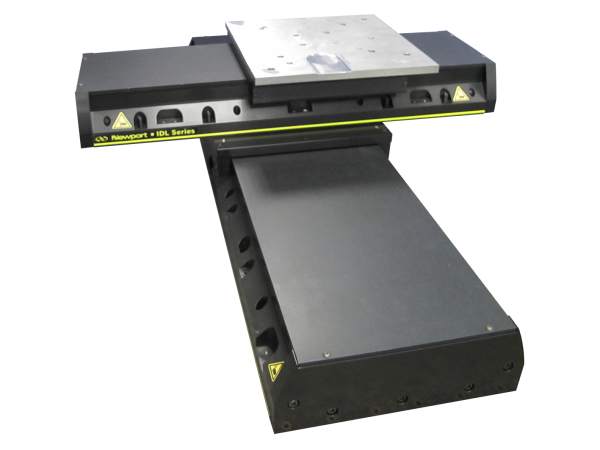

Based on a customer-proven and modular wedge design, the IDL280-Z20 provides sub-micron MIM, smooth motion and stiff construction for use with high dynamic performance XY systems. In particular, it is matched to the IDL280 industrial-grade linear motor translation stages, making it easy to securely construct multi-axis systems, and provides unobstructed access to the payload from any side.

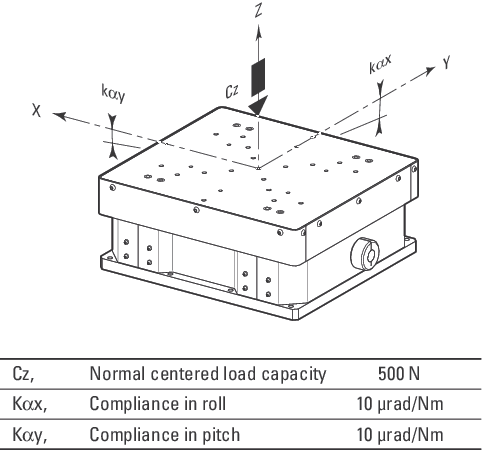

Load Diagram
Accessories
Related Products
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | IDL280-300LMMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 280 mm | In Stock | ||||
| IDL280-1200LMMotorized Linear Stage, Industrial, Linear Motor, 1200 mm Travel, 280 mm |
