Utility Float Glass Broadband Metallic Mirrors
Utility Float Glass Broadband Metallic Mirrors

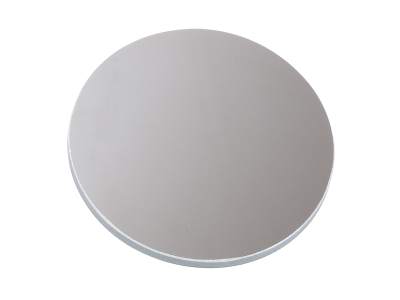

These low cost Float glass 1 and 2 inch diameter mirrors are excellent broadband mirrors for the price. They can be used as a front or back surface reflector.
- One metallic coating covers UV - IR spectral band
- Substrate flatness & surface quality 5λ, 60-40
- Available in diameter 25.4 mm, 50.8mm
- Removable plastic sheet protects the coated surface
- Insensitive to polarization and angle of incidence See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10J00ER.3Aluminum Mirror, Float Glass, 25.4 mm, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 20J00ER.3Aluminum Mirror, Float Glass, 50.8 mm, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Notes:

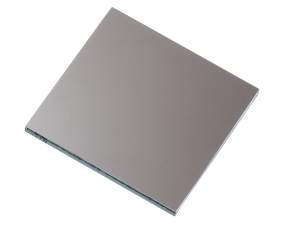

Square mirror is also available.
Specifications
| Models | | | |
|---|---|---|---|
| Wavelength Range | 400-10000 nm | 400-10000 nm | |
| Mirror Shape | Round | Round | |
| Material | Float Glass | Float Glass | |
| Surface Flatness | 5λ at 632.8 nm | 5λ at 632.8 nm | |
| Surface Quality | 60-40 scratch-dig | 60-40 scratch-dig | |
| Reflectivity | Ravg>90% @ 400-2000 nm | Ravg>90% @ 400-2000 nm | |
| Thickness | 3.17 mm | 3.17 mm | |
| Thickness Tolerance | ±0.76 mm | ±0.76 mm | |
| Diameter | 25.4 mm | 50.8 mm | |
| Diameter Tolerance | ±0.25 mm | ±0.25 mm | |
| Cleaning | See How to Clean Optics | See How to Clean Optics |
Features
Low Cost Float Glass Substrate
Float glass is made by floating molten glass over a bed of molten metal. While this is a low cost material that is used in commercial windows, the production method yields a very flat surface of uniform thickness making it a good choice for optics. For more information, refer to the optical material technical note.

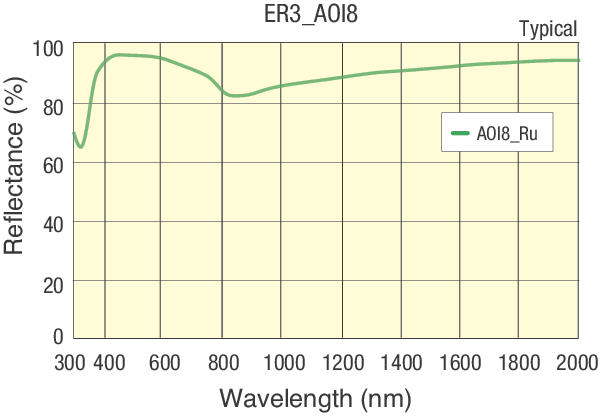

Enhanced Aluminum Broadband Metallic Coating
The front surface is coated with our ER.3 dielectric-enhanced aluminum coating. Average reflectivity is greater than 90% from 400-2000 nm typically.

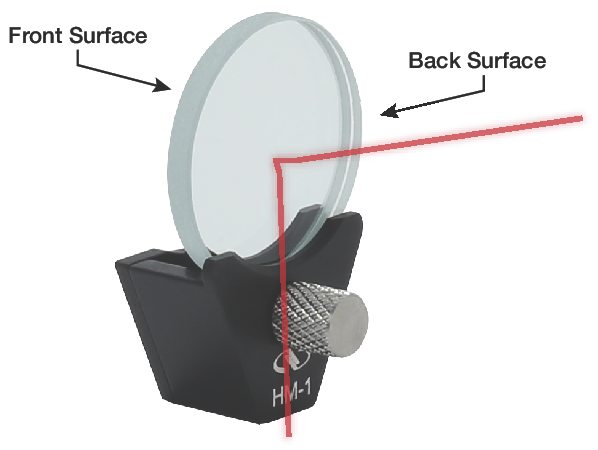

Front or Back Reflector Applications
These mirrors can be used as a front or back surface reflector. A removable plastic sheet is attached to the coated surface to protect the mirror surface during shipment and handling. It can be left on if used as a back surface reflector or removed if used as a front surface reflector.
