Polarization Maintaining (PM) Fiber Coupler

Our F-PMC Series Polarization Maintaining (PM) Fiber Optic Couplers exhibit the highest polarization extinction ratio (PER) available in the market.

Highest polarization extinction ratio available in market
Low insertion loss
Low temperature sensitivity
Nominally 0.2% coupling ratio change per nm away from the operating wavelength

See All Features

Show Filters:

Showing 7 of 7 total products

Compatibility:

Description	Compatibility	Wavelength Range	Coupling Ratio	Avail.	Price

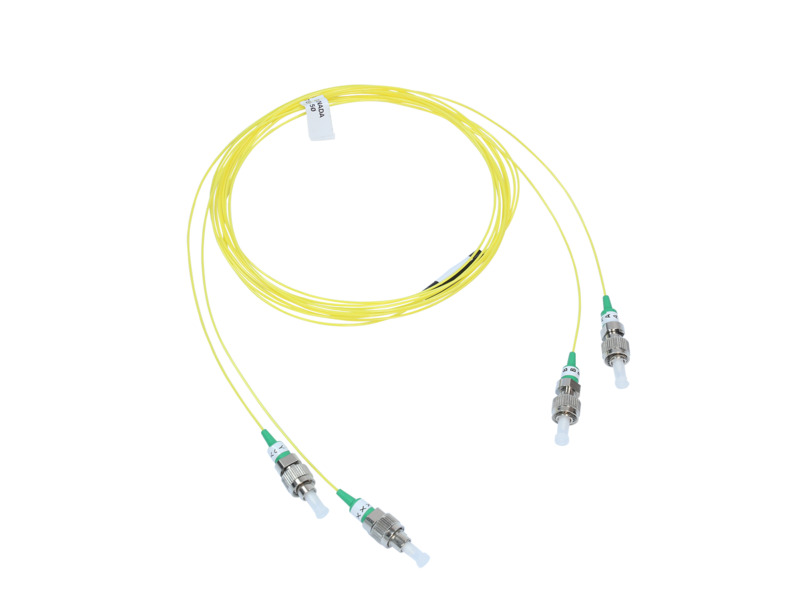

F-PMC-633-10Polarization Maintaining Coupler, 10/90, 633 nm, FC/APC Connectors	UNIVERSAL	633 nm	10/90	In Stock	$2,500
F-PMC-780-1Polarization Maintaining Coupler, 1/99, 780 nm, FC/APC Connectors	UNIVERSAL	780 nm	1/99	In Stock	$2,400
F-PMC-780-50Polarization Maintaining Coupler, 50/50, 780 nm, FC/APC Connectors	UNIVERSAL	780 nm	50/50	In Stock	$2,580
F-PMC-850-50Polarization Maintaining Coupler, 50/50, 850 nm, FC/APC Connectors	UNIVERSAL	850 nm	50/50	In Stock	$2,200
F-PMC-1060-50Polarization Maintaining Coupler, 50/50, 1060 nm, FC/APC Connectors	UNIVERSAL	1060 nm	50/50	Contact Us	$2,200
F-PMC-1550-10Polarization Maintaining Coupler, 10/90, 1550 nm, FC/APC Connectors	UNIVERSAL	1550 nm	10/90	4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,190
F-PMC-1550-50Polarization Maintaining Coupler, 50/50, 1550 nm, FC/APC Connectors	UNIVERSAL	1550 nm	50/50	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,300

Specifications

Fiber Connector
FC/APC
Extinction Ratio
-24 to -27 dB
Typical Insertion Loss
0.05 dB
Maximum Insertion Loss
0.2 dB
Maximum Excess Loss
<0.1 dB (F-PMC-1550-50: <0.03 dB)

Return Loss
-70 dB (Typical)
Back Reflection
<-65 dB
Operating Temperature
-15 to 55 °C
Dimensions
30 x 6 x 6 mm

Features

Evanescent Wave Coupling

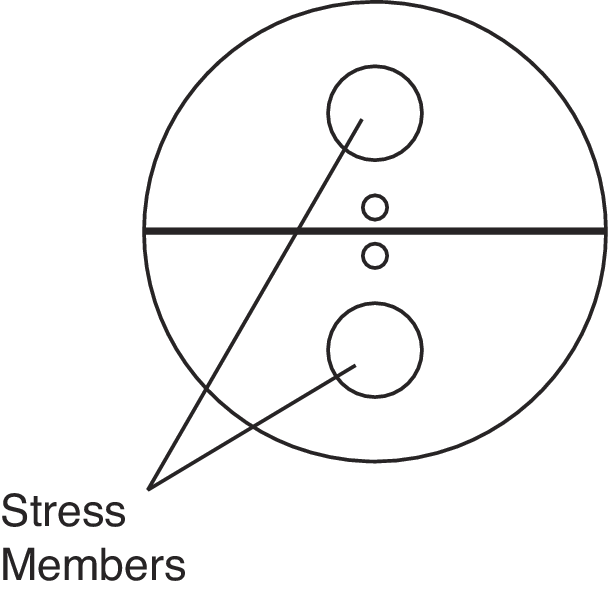

The F-PMC series utilizes evanescent wave coupling to provide fixed ratio 2x2 couplers with high PER and low insertion loss. Evanescent wave coupling is achieved by placing the two Panda fiber halves in direct contact with each other. The rate of the coupling ratio change is nominally 0.2 % per nm, as the wavelength of the light source is away from the specified wavelength. For example, a 50/50 coupler at 1060nm would be 48/52 at 1070nm and 52/48 at 1050nm.

Compact Silicone Rubber Package

These PM couplers come in a small, specially designed silicone rubber package that allows low stress contact of the fiber halves over a broad range of temperatures. They also feature standard 1-m pigtails and FC/APC connectors. Various wavelength versions and coupling ratios are available.

Advanced Wave-guide Design

These couplers enjoy inherent advantages because there is no deformation in the wave-guide cores. Furthermore, since the two Panda fiber halves are placed in direct contact with each other, these PM fiber couplers are more resistant to aging and environmental effects.
