Overview

These accessories mount to multimode ﬁber positioners to provide flexibility in light coupling mechanisms. Microscope objectives and bare aspheric lenses can mount directly to the positioners for direct light coupling into the fiber.

Adapters and coupler bodies attach directly to multimode fiber positioners
Includes adapters to attach objective and aspheric lenses securely
Adapters for coupling to connectorized fibers are also available

See All Features

Products

Compare	Model	Compatibility	rankScore		Availability	Price	Brand
9092 Fiber Aligner Coupler Body, Holds 5708 or 9123, English $161 In Stock	9092 Fiber Aligner Coupler Body, Holds 5708 or 9123, English	IMPERIAL	1.0	1.0	In Stock	$161	New Focus
9092-M Fiber Aligner Coupler Body, Holds 5708 or 9123, Metric $157 In Stock	9092-M Fiber Aligner Coupler Body, Holds 5708 or 9123, Metric	METRIC	1.0	2.0	In Stock	$157	New Focus
5708 Asphere Adapter, Fiber Aligner. Requires 9092 Coupler Body $90 3 Weeks	5708 Asphere Adapter, Fiber Aligner. Requires 9092 Coupler Body	UNIVERSAL	1.0	3.0	3 Weeks	$90	New Focus
9123NF Objective Holder, Fiber Aligner. Requires 9092 Coupler Body $82 In Stock	9123NF Objective Holder, Fiber Aligner. Requires 9092 Coupler Body	UNIVERSAL	1.0	4.0	In Stock	$82	New Focus

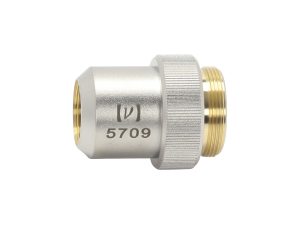

5709 Asphere Adapter, RMS Threaded $106 In Stock	5709 Asphere Adapter, RMS Threaded	UNIVERSAL	1.0	5.0	In Stock	$106	New Focus
9126 Fiber Adaptor, ST, For 9091 Fiber Positioner $116 In Stock	9126 Fiber Adaptor, ST, For 9091 Fiber Positioner	UNIVERSAL	1.0	6.0	In Stock	$116	New Focus
9127NF Fiber Adaptor, FC, For 9091 Fiber Positioner $125 In Stock	9127NF Fiber Adaptor, FC, For 9091 Fiber Positioner	UNIVERSAL	1.0	7.0	In Stock	$125	New Focus
9096 Optical Fiber Bracket, Four Position, FC Connectors $66 In Stock	9096 Optical Fiber Bracket, Four Position, FC Connectors	UNIVERSAL	1.0	8.0	In Stock	$66	New Focus

Show All

Features

Coupler Bodies

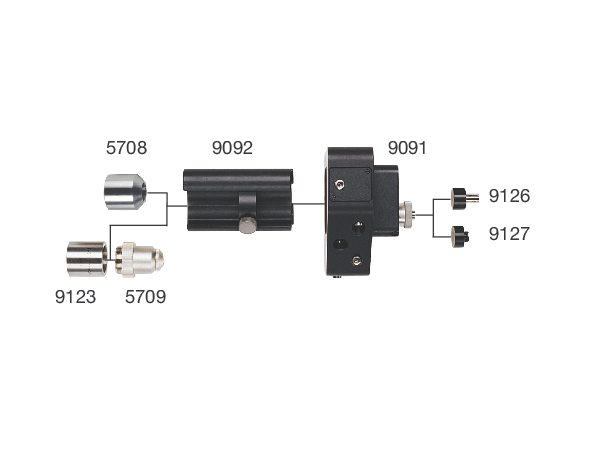

The coupler body attaches either to Model 9091 or Model 9051 fiber aligners (but not Model 9095) for coupling optics directly to the aligner. The coupler body is designed to support both the Model 9123NF objective holder or Models 5708 aspheric adapter.

Connectorized Fibers Adapters

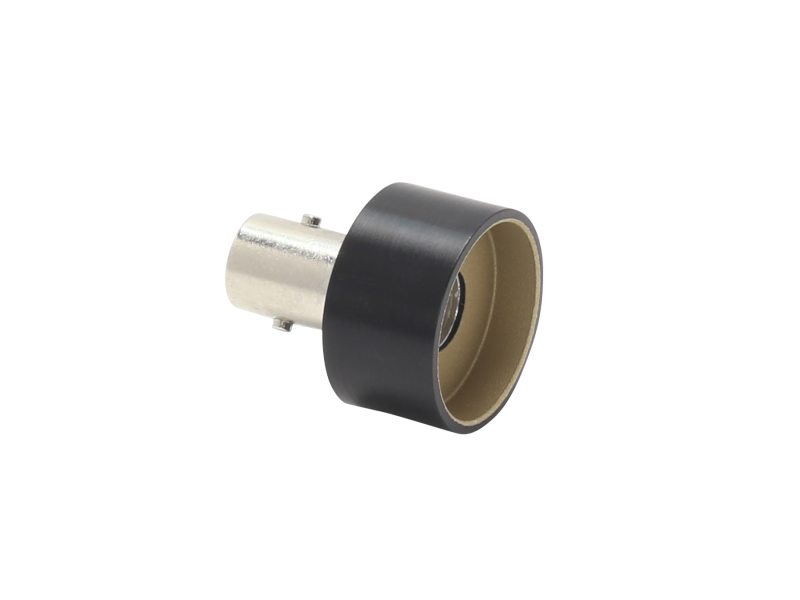

Model 9126 and 9127NF adapters provide direct attachment of connectorized fibers to fiber positioning for light coupling.

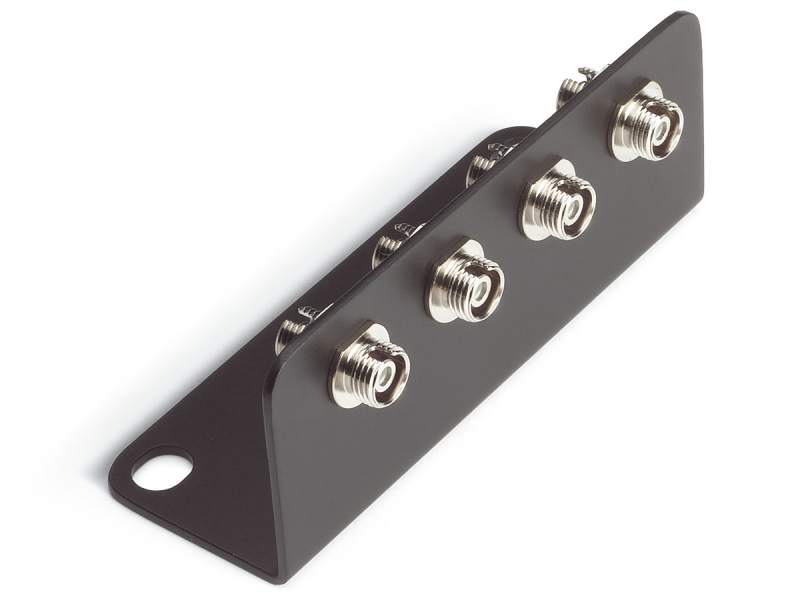

Fiber Bracket With Mechanical Strain Relief

These Model 9096 unique fiber bracket was designed by Newport to offer a convenient and intelligent way to protect and organize multiple fibers feeding into alignment systems. The bracket serves to intercept the mechanical strain on each of the 4 FC connectorized fibers it supports without effecting the optical path. These brackets mount directly to optical tables and breadboards to prevent wear and tear of connecting and disconnecting fibers with equipment. It also provides secure organization of fibers to neatly keep them out of the way.
