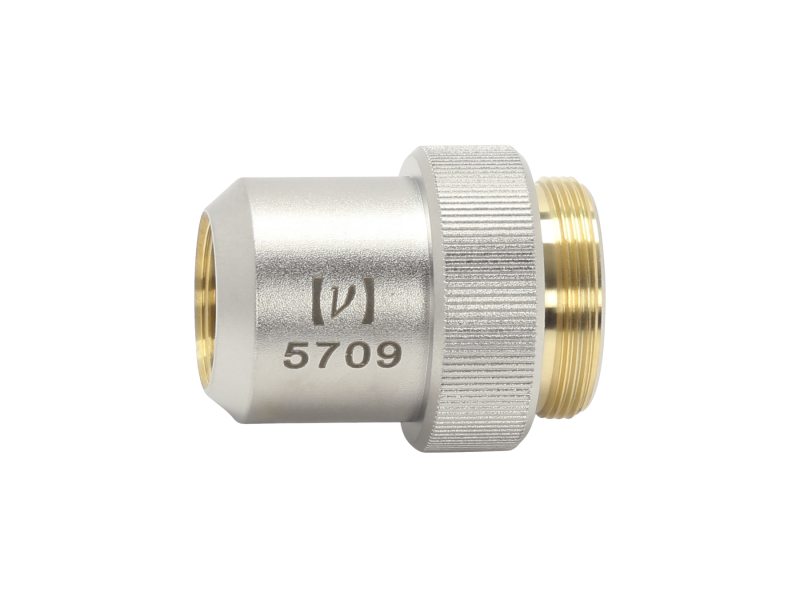

Asphere Adapter, RMS Threaded

Asphere Adapter, RMS Threaded

Model: 5709

$109

Compare

Add to List

Product Series Overview

Fiber Positioner Accessories

The 5709 RMS Threaded Asphere Adapter is for mounting the aspheric lenses as microscope objectives.

Specifications

Technical Specs

Weight

50 g

Weight

50 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

99-5709 (90 kB, PDF)
5709a-Drawing (149.8 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9123NF Objective Holder, Fiber Aligner. Requires 9092 Coupler Body	UNIVERSAL		Contact Us	$84
		5708 Asphere Adapter, Fiber Aligner. Requires 9092 Coupler Body	UNIVERSAL		Show	$93

Supporting

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		5721-C-H Aspheric Objective Lens, 60x, 2.8 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$276
		5723-C-H Aspheric Objective Lens, 30x, 6.2 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$306
		5724-C-H Aspheric Objective Lens, 20x, 8.0 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$306
		5725-C-H Aspheric Objective Lens, 16x, 11.0 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$306
		5726-C-H Aspheric Objective Lens, 10x, 15.3 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$306
		5722-C-H Aspheric Objective Lens, 40x, 4.5 mm EFL, 1050-1600 nm	UNIVERSAL		Show	$286
		5721-B-H Aspheric Objective Lens, 60x, 2.8 mm EFL, 600-1050 nm	UNIVERSAL		Show	$272
		5723-B-H Aspheric Objective Lens, 30x, 6.2 mm EFL, 600-1050 nm	UNIVERSAL		Show	$286
		5724-B-H Aspheric Objective Lens, 20x, 8.0 mm EFL, 600-1050 nm	UNIVERSAL		Show	$306
		5725-B-H Aspheric Objective Lens, 16x, 11.0 mm EFL, 600-1050 nm	UNIVERSAL		Show	$306
		5726-B-H Aspheric Objective Lens, 10x, 15.3 mm EFL, 600-1050 nm	UNIVERSAL		Show	$306
		5722-B-H Aspheric Objective Lens, 40x, 4.5 mm EFL, 600-1050 nm	UNIVERSAL		Contact Us	$286

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9131NF Fiber Coupling Kit, Singlemode, 9091, FC and ST Connectors, 8-32	IMPERIAL		Show	$2,953
