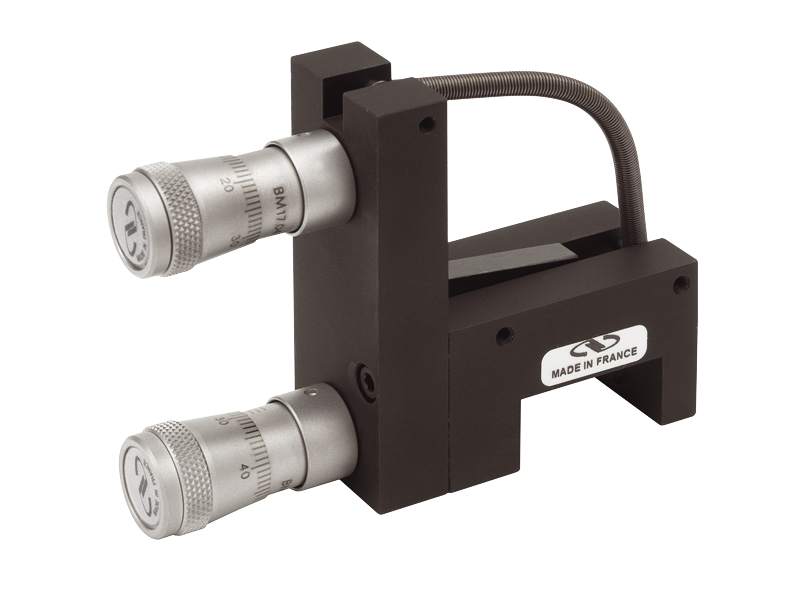

XY Cylindrical Device Mounts for X26 Rails

CT26 optical rail mounts are used to accurately position cylindrical lasers on the X26 rail system. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time.

Adjustable two-axis mounts for cylindrical lasers
0.16 in. (4 mm) XY travel
Compatible with X26 Series optical rails

See All Features

Showing 3 of 3 total products

Compatibility:

Description	Compatibility	Diameter	Avail.	Price
CT26.35BMCylindrical Laser Mount, 1.38 in. (35 mm), BM micrometers	UNIVERSAL	35 mm	Contact Us	$1,450
CT26.44BMCylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers	UNIVERSAL	44 mm	In Stock	$1,556
CT26.50BMCylindrical Laser Mount, 1.97 in. (50 mm), BM micrometers	UNIVERSAL	50 mm	Contact Us	$1,774

Features

Compatible with X26 Optical Rail System

Two mounts are recommended for holding each cylindrical device to enable 0.16 in. (4 mm) of stable XY and tip/tilt adjustment. The beam height is 40 mm, directly compatible with the X26 rail system with no carrier required. Lateral sensitivity is on the order of the BM actuator sensitivity.

Firm Mounting of Cylindrical Lasers

The laser is held firmly against a reference block by a spring that wraps around the tube.
