Compare Model Drawings, CAD & Specs Availability Price
New MFM-050BI
Flexure Optic Mount, Bi-Directional Clear Edge, 0.5 in., Set Screw Mounting
Contact Us
 New MFM-050BI Flexure Optic Mount, Bi-Directional Clear Edge, 0.5 in., Set Screw Mounting
Contact Us
New MFM-050BW
Flexure Optic Mount, Bi-Directional Clear Edge, 0.5 in., Low Wavefront Distortion
Contact Us
 New MFM-050BW Flexure Optic Mount, Bi-Directional Clear Edge, 0.5 in., Low Wavefront Distortion
Contact Us
New MFM-075BI
Flexure Optic Mount, Bi-Directional Clear Edge, 0.75 in., Set Screw
Contact Us
 New MFM-075BI Flexure Optic Mount, Bi-Directional Clear Edge, 0.75 in., Set Screw
Contact Us
New MFM-075BW
Flexure Optic Mount, Bi-Directional Clear Edge, 0.75 in., Low Wavefront Distortion
Contact Us
 New MFM-075BW Flexure Optic Mount, Bi-Directional Clear Edge, 0.75 in., Low Wavefront Distortion
Contact Us
New MFM-100BI
Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Set Screw
Contact Us
 New MFM-100BI Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Set Screw
Contact Us
New MFM-100BT
Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Threaded Mounting
Contact Us
 New MFM-100BT Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Threaded Mounting
Contact Us
New MFM-100BW
Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Low Wavefront Distortion
Contact Us
 New MFM-100BW Flexure Optic Mount, Bi-Directional Clear Edge, 1.0 in., Low Wavefront Distortion
Contact Us

Specifications

  • Type
    Industrial Mirror Mount
  • Mechanism
    Flexure
  • Number of Actuators
    2
  • Actuator Drive
    Allen-Key
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Angular Range
    ±2.5°
  • Optic Loading
    Front
  • Material
    Stainless Steel
  • Special Features
    Bi-Directional Clear Edge

Features

Bi-Directional Clear Edge for Beamsplitting Application

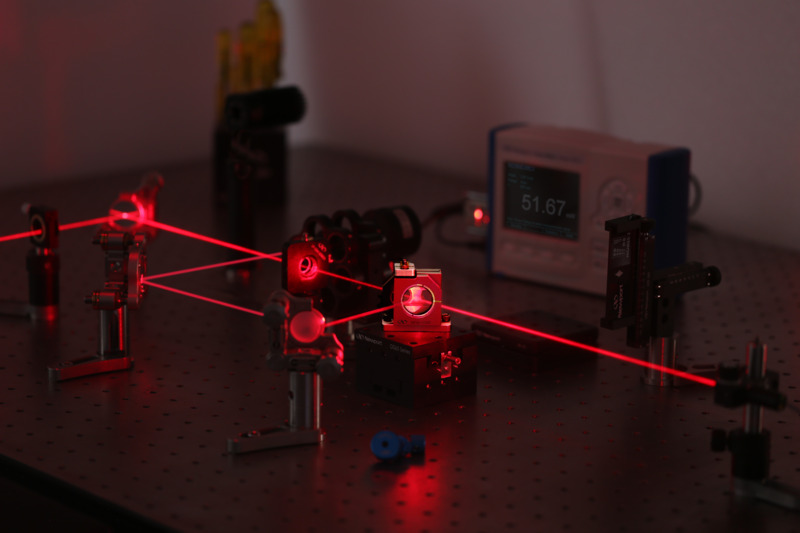

The Clear Edge design enables unobstructed 45° beam transmission through the mount, making it ideal for beam-splitting or beam-combining applications where maintaining a clean optical path is critical. By removing material along the beam path, this design allows the transmitted beam to pass freely without clipping or distortion, even in compact setups. The new bi-directional MFM series supports bi-directional use, offering flexibility, and is especially beneficial in applications requiring precise alignment and minimal interference with the optical axis.

Keep Your Hands Out of Harm's Way

Top-adjust mirror mounts are designed with their adjustment screws positioned on the top of the mount instead of behind it. This allows users to make precise angular changes without reaching into the beam path, improving safety by keeping hands and tools away from active optical paths. The top-access design also enables tighter packing of mounts where compact setups are required.

Versatile Options for Any Setup

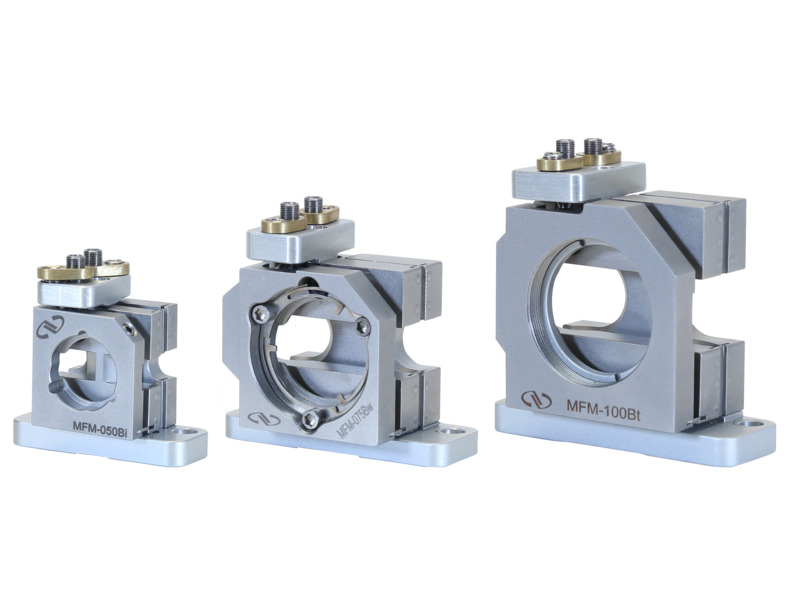

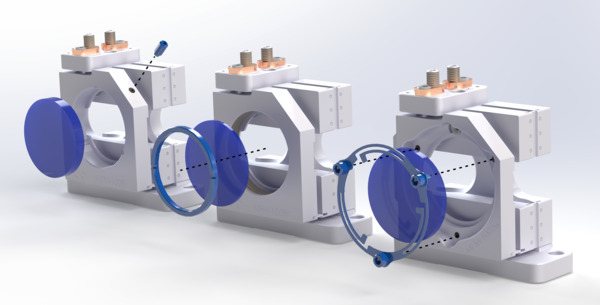

Available in 0.50, 0.75, and 1.0 in. optic diameter sizes across seven distinct models, with choices of low wavefront distortion or set screw mounting. A dedicated threaded bore version is offered exclusively in the 1.0 in. size.

Flexure Design Means Compact Size

With a flexure mirror mount, a spring-steel element provides the means for angular positioning. The double-duty ability of the flexure provides both guided rotation as well as the spring force, enabling a more compact design.
