New Flexure Optic Mount, Bi-Directional Clear Edge, 0.5 in., Low Wavefront Distortion
Model: MFM-050BW
Product Series Overview

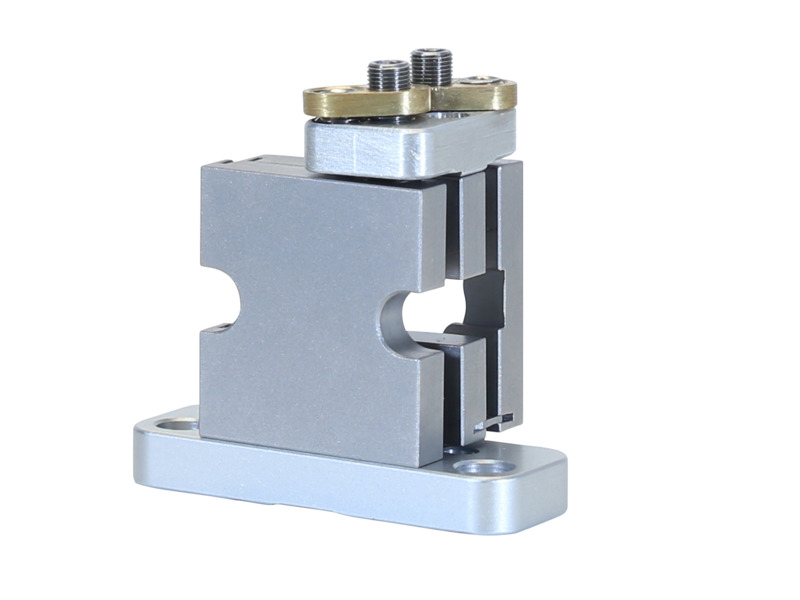

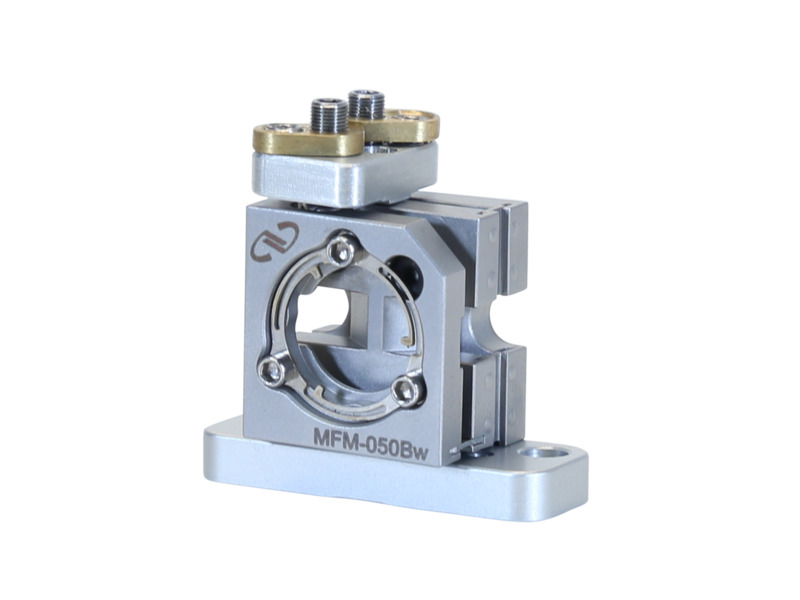

Top Adjust Flexure Mirror Mounts with Bi-Directional Clear EdgeThe MFM-050BW Compact Stainless Steel Flexure Mirror Mount features a bi-directional Clear Edge design for clean 45° beam transmission from either side, making it ideal for beam-splitting or beam-combining applications. The top-adjust driving configuration keeps hands clear of the beam path, enhancing accessibility and safety in compact setups. Welded construction and spring-steel flexure pivots provide stable angular adjustment over a ±2.5° range, driven by 80 TPI screws. A 0.5 inch optic can be secured using adhesive wells or a built-in low-distortion spring, ensuring long-term alignment.
Bi-Directional Clear Edge for Beamsplitting Application

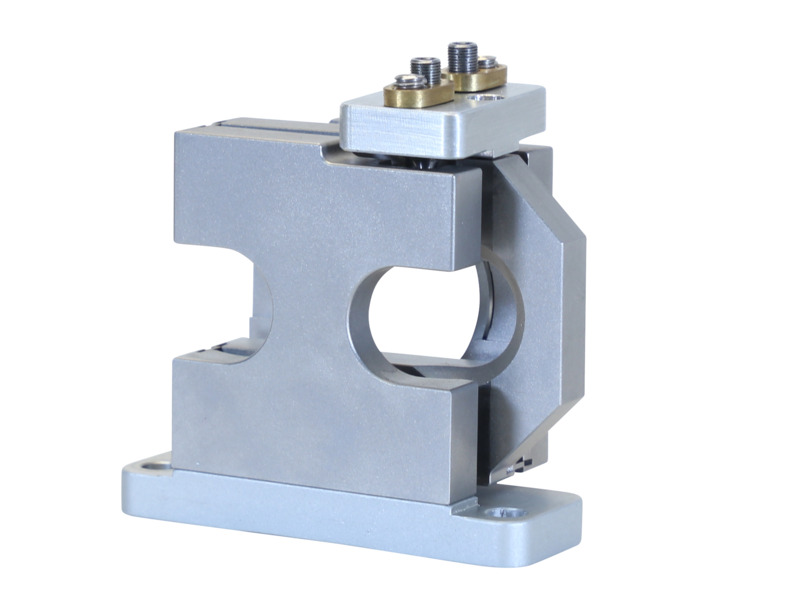

The Clear Edge design enables unobstructed 45° beam transmission through the mount, making it ideal for beam-splitting or beam-combining applications where maintaining a clean optical path is critical. By removing material along the beam path, this design allows the transmitted beam to pass freely without clipping or distortion, even in compact setups. The new bi-directional MFM series supports bi-directional use, offering flexibility, and is especially beneficial in applications requiring precise alignment and minimal interference with the optical axis.
Keep Your Hands Out of Harm's Way

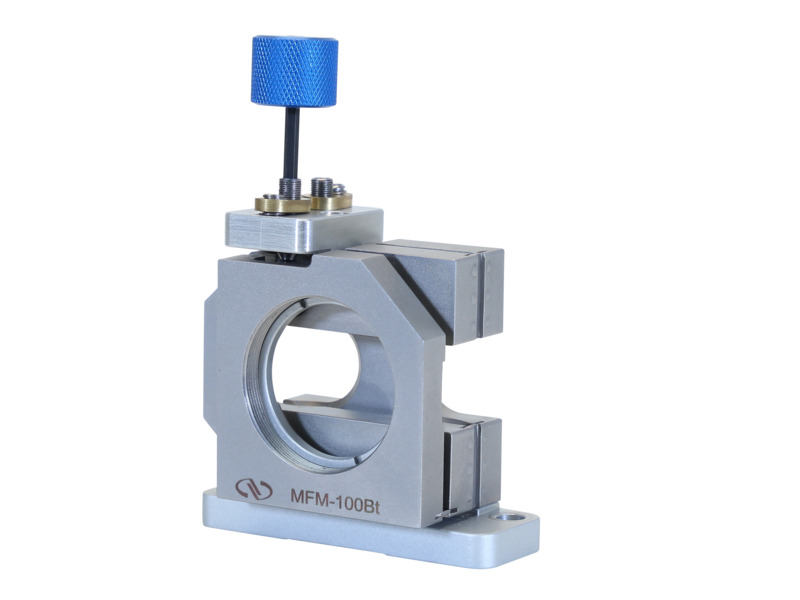

Top-adjust mirror mounts are designed with their adjustment screws positioned on the top of the mount instead of behind it. This allows users to make precise angular changes without reaching into the beam path, improving safety by keeping hands and tools away from active optical paths. The top-access design also enables tighter packing of mounts where compact setups are required. Adjustment in image shown using 2 mm hex knob.
Resources & Downloads
2D Product Drawings
MFM-050BW Drawing(87.1 kB, PDF)
Other
Bi-Directional MFM-B RoHS Certificate(290 kB, PDF)
