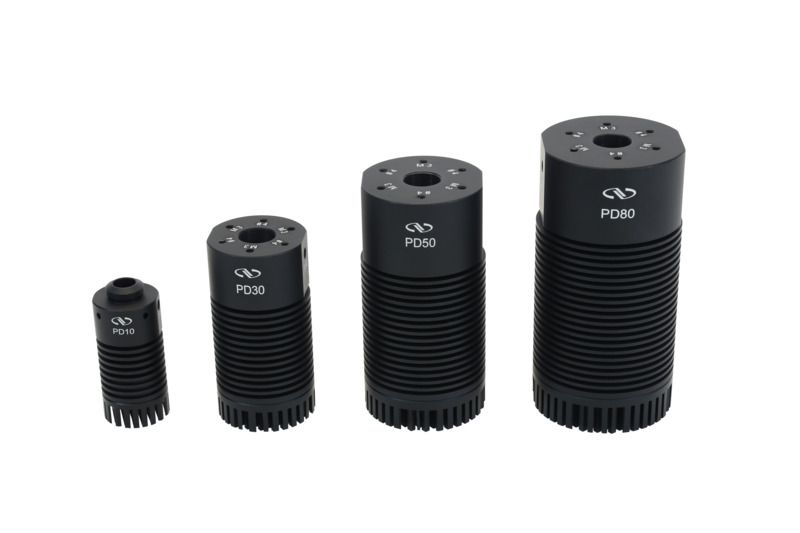

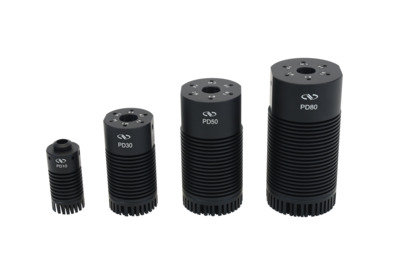

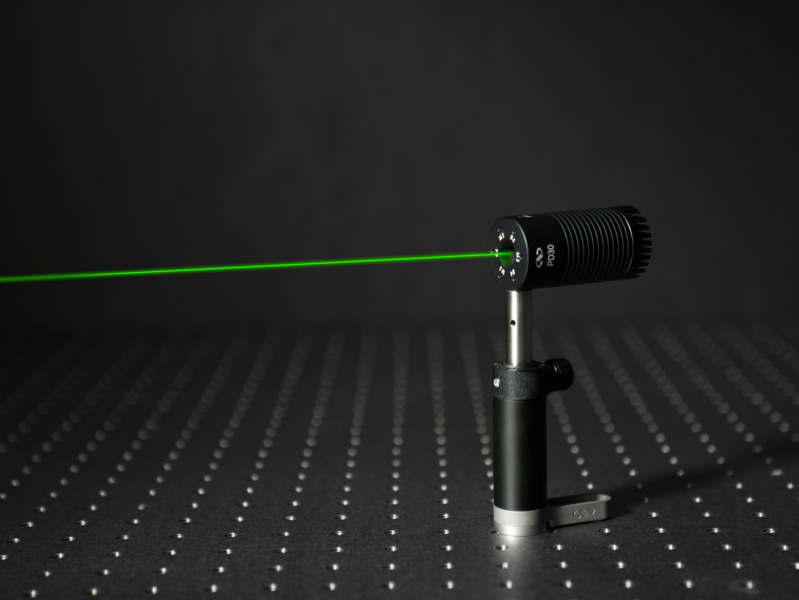

PD Series laser beam dumps feature a patent-pending structure designed to absorb incident light and passively dissipate heat through natural convection. Laser beam dumps are used to capture unwanted and stray beams or contain a beam within a portion of an instrument.
- Absorbs incident laser beams
- Patent pending design minimizes backskatter
- Up to 80 W maximum power
- Multiple imperial and metric mounting options built-in See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

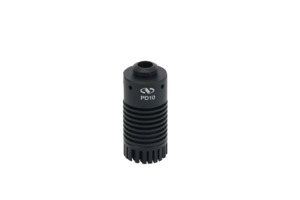

 | PD10Laser Beam Dump, 10 W Max Average Power, 200-3000 nm | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

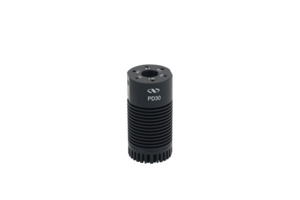

 | PD30Laser Beam Dump, 30 W Max Average Power, 200-3000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

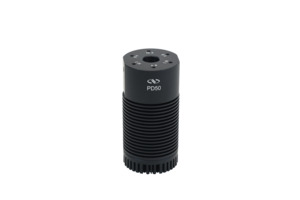

 | PD50Laser Beam Dump, 50 W Max Average Power, 200-3000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

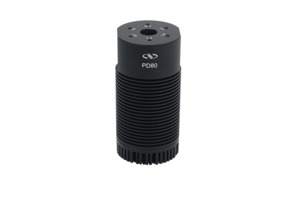

 | PD80Laser Beam Dump, 80 W Max Average Power, 200-3000 nm | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

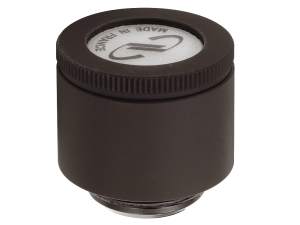

 | PL15Laser Beam Dump, 30 W/cm2 Max Power Density, RMS Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
| Models | | | | | | |
|---|---|---|---|---|---|---|
| Laser Type | CW and Pulsed | CW and Pulsed | CW and Pulsed | CW and Pulsed | CW | |
| Wavelength Range | 200-3000 nm | 200-3000 nm | 200-3000 nm | 200-3000 nm | ||
| Maximum Average Power | 10 W | 30 W | 50 W | 80 W | ||
| Maximum Peak Power Density1 | 25 kW/cm2 | 25 kW/cm2 | 25 kW/cm2 | |||
| Maximum Average Power Density | 30 W/cm2 | 60 W/cm2 | 125 W/cm2 | 150 W/cm2 | 30 W/cm2 | |
| Maximum Energy Density | 10 J/cm2 | 30 J/cm2 | 40 J/cm2 | 40 J/cm2 | ||
| Backscatter2 | 5.46 x 10−4 @ 633 nm | 4.62 x 10−4 @ 633 nm | 5.80 x 10−4 @ 633 nm | 5.80 x 10−4 @ 633 nm | 1.0 x 10−4 @ 633 nm | |
| Entrance Aperture | Ø8 mm | Ø11 mm | Ø11 mm | Ø11 mm | Ø15 mm | |
| Acceptance Angle | ±5° | ±5° | ±5° | ±5° |
Notes:
General Notes:
- To help identify the appropriate beam dump, utilize the Ophir Power Density Calculator to determine your specific power density or energy density requirements.
- Caution: Beam dumps may become hot to the touch when operated near their maximum power rating.
- At 355 nm, 500 kHz, 10 ns
At 633 nm
Features
Enhanced Laser Safety with Backscatter Control

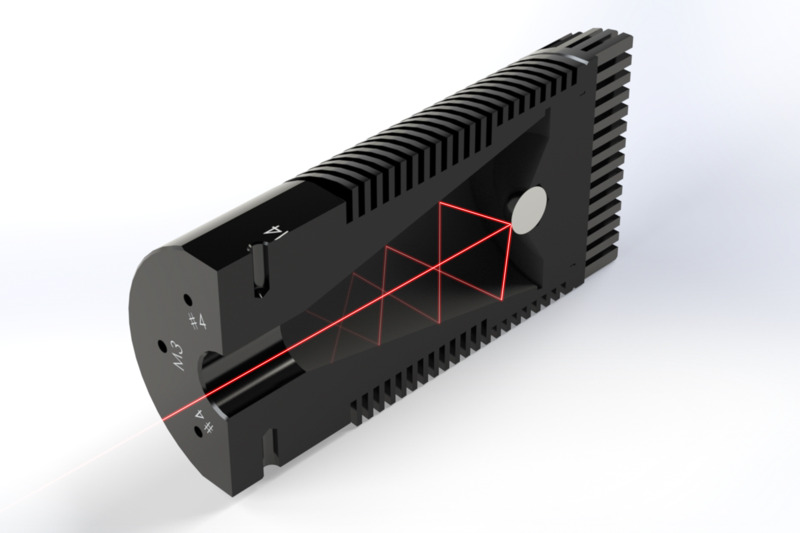

The PD Series Beam Dumps feature an innovative patent-pending structure designed to absorb incident light and passively dissipate heat through natural convection. The interior incorporates a Silicon Carbide scattering surface, effectively able to suppress and reduce backscatter of incident CW and Pulsed beams. As a result, laser safety for personnel and equipment is greatly enhanced.
Versatile Mounting Options
These beam dumps are designed to be post-mountable and feature an 8-32 and M4 threaded holes on opposing sides. This configuration allows for direct mounting onto a variety of our posts and pedestals. The
Easily Integrate with 30 mm Cage System
The
Accessories
PD10 and PD30 Optic Cage Mounts
PL15 Mounts
