Wafer Positioning Stage, Integrated Vertical and DC Rotation Stage

ZVR Integrated Vertical and Rotation Stages

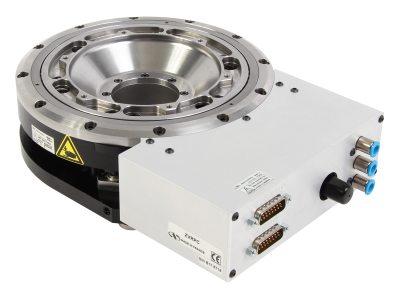

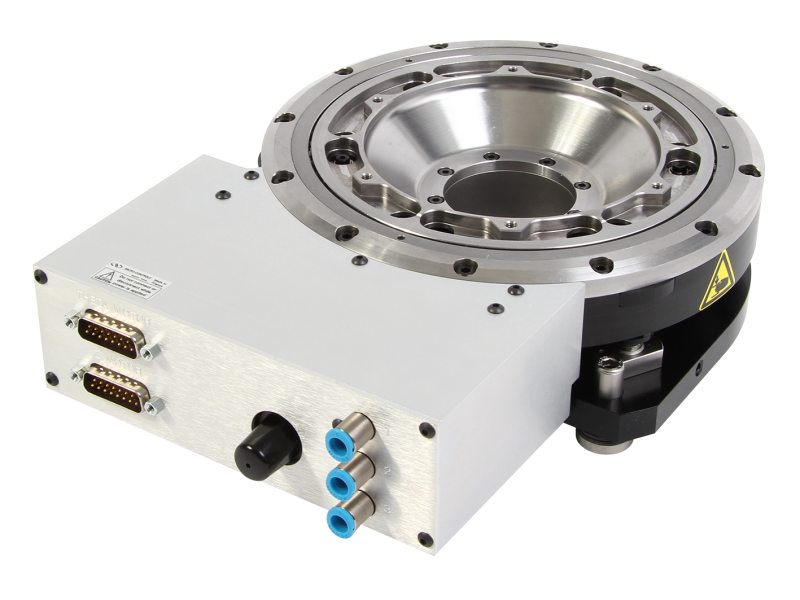

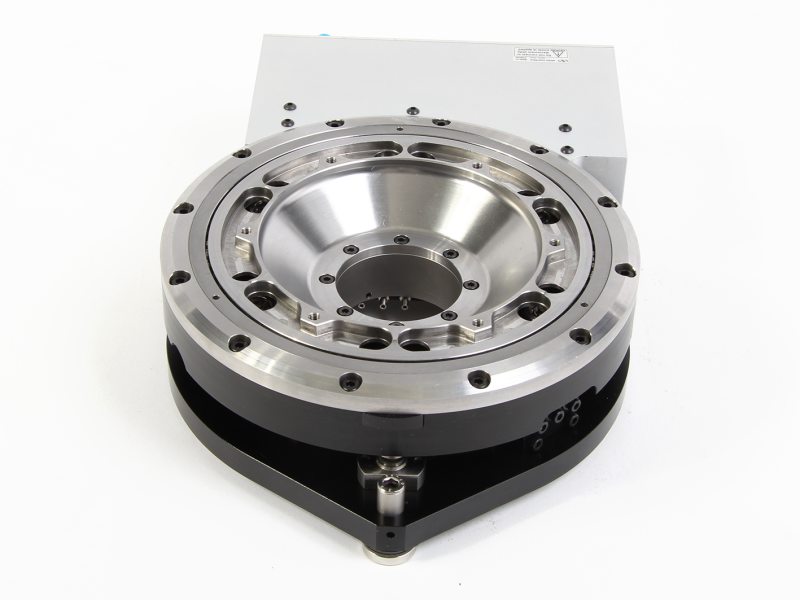

Newport’s new ZVR-PC is an integrated Z-vertical and DC Servo Theta-rotation positioning stage designed to precisely elevate and rotate 200 mm and/or 300 mm diameter wafer chucks. The ZVR-PC offers precise 10 mm vertical and continuous 360 degree angular travel in a very low profile design. Utilizing a DC Servo motor, and integrated rotary encoder in the theta stage, the ZVR-PC is capable of high speed, high performance positioning. With integrated vacuum and electrical lines accessed at a single point, and a three point mounting interface, the ZVR-PC offers convenient, stable, and high performance capability for applications such as wafer positioning. Please refer to the datasheet for the complete specifications on the rotational and vertical motion capabilities of the ZVR-PC.

Specifications

Technical Specs

Travel Range
10 mm
Angular Range
360°
Maximum Speed
80°/s
Maximum Linear Speed
10 mm/s
Minimum Incremental Motion
2.0 mdeg
Minimum Incremental Motion, Linear
0.05 µm

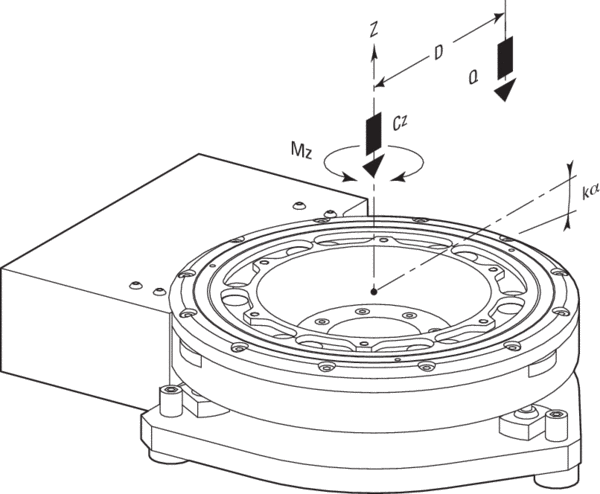

Maximum Torque
1 Nm
Centered Load Capacity
100 N
Uni-directional Repeatability, Typical
±0.50 mdeg, ±0.2 µm (linear)
Uni-directional Repeatability, Guaranteed
±1.5 mdeg, ±1.0 µm (linear)
Bi-directional Repeatability, Typical
±1.3 mdeg
Bi-directional Repeatability, Guaranteed
±3.0 mdeg
Bi-directional Repeatability, Linear
±1.2 (typical) ±2.0 (guaranteed) µm
Accuracy, Typical
Rotary: ±10 mdeg - Linear: ±0.5 µm

Accuracy, Guaranteed
Rotary: ±15 mdeg - Linear: ±2.0 µm
Wobble, Typical
±22 µrad
Wobble, Guaranteed
±40 µrad
Eccentricity, Typical
±2.2 µm
Eccentricity, Guaranteed
±4.0 µm
Origin Repeatability
Rotary: ±7.5 mdeg
Linear: ±2.5 µm
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Aperture Diameter
50 mm
Thread Type
M4
Weight
4.2 kg
Compliance
RoHS 3, CE

Travel Range
10 mm
Angular Range
360°
Maximum Speed
80°/s
Maximum Linear Speed
10 mm/s
Minimum Incremental Motion
2.0 mdeg
Minimum Incremental Motion, Linear
0.05 µm
Maximum Torque
1 Nm
Centered Load Capacity
100 N
Uni-directional Repeatability, Typical
±0.50 mdeg, ±0.2 µm (linear)
Uni-directional Repeatability, Guaranteed
±1.5 mdeg, ±1.0 µm (linear)
Bi-directional Repeatability, Typical
±1.3 mdeg
Bi-directional Repeatability, Guaranteed
±3.0 mdeg
Bi-directional Repeatability, Linear
±1.2 (typical) ±2.0 (guaranteed) µm
Accuracy, Typical
Rotary: ±10 mdeg - Linear: ±0.5 µm

Accuracy, Guaranteed
Rotary: ±15 mdeg - Linear: ±2.0 µm
Wobble, Typical
±22 µrad
Wobble, Guaranteed
±40 µrad
Eccentricity, Typical
±2.2 µm
Eccentricity, Guaranteed
±4.0 µm
Origin Repeatability
Rotary: ±7.5 mdeg
Linear: ±2.5 µm
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Aperture Diameter
50 mm
Thread Type
M4
Weight
4.2 kg
Compliance
RoHS 3, CE
