Cable Kit, For Stages IMS-LM-S, and XPS-EDBL Driver
Cable Kit, For Stages IMS-LM-S, and XPS-EDBL Driver
Model: XPS-DK24
In Stock
Product Series Overview

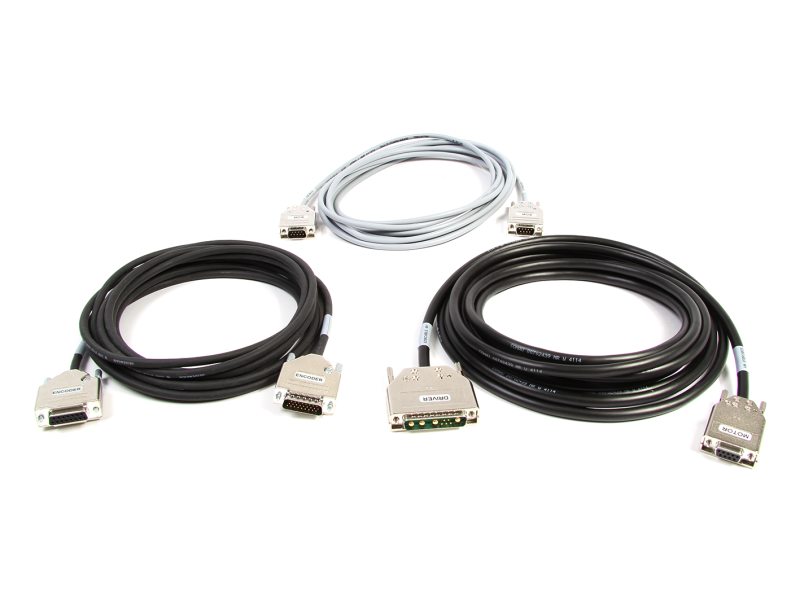

XPS Motion Controller to Stage Cable KitsThe XPS-DK24 cable kit includes a 5 meter long E5775x encoder cable with a SUB-D15F stage side connector and a SUB-D26HDM controller side connector. This kit also includes a 5 meter long EDBCABLE-M1 motor cable with a SUB-D9M stage side connector and a DB9W4M controller side connector; as well as a 5 meter long EDBCABLE-E1 end-of-run cable with a SUB-D9M stage side connector and a SUB-D9M controller side connector.
Resources & Downloads
Manuals
Cable Kits User's Manual.pdf(1.9 MB, PDF)
Related Products
Similar Cables
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-DK22Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV11 Driver | In Stock |
Compatible Stages
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | IMS1000LM-SMotorized Linear Stage, Linear Motor, 1000 mm Travel, 1/4-20, No Cable | In Stock | ||||
 | XML210-SMotorized Linear Stage, Linear Motor, 210 mm Travel, 300 N Load, M4 and M6 | In Stock | ||||
 | XMS100-SMotorized Linear Stage, Linear Motor, 100 mm Travel, 100 N Load, M4 and M6 | In Stock |
