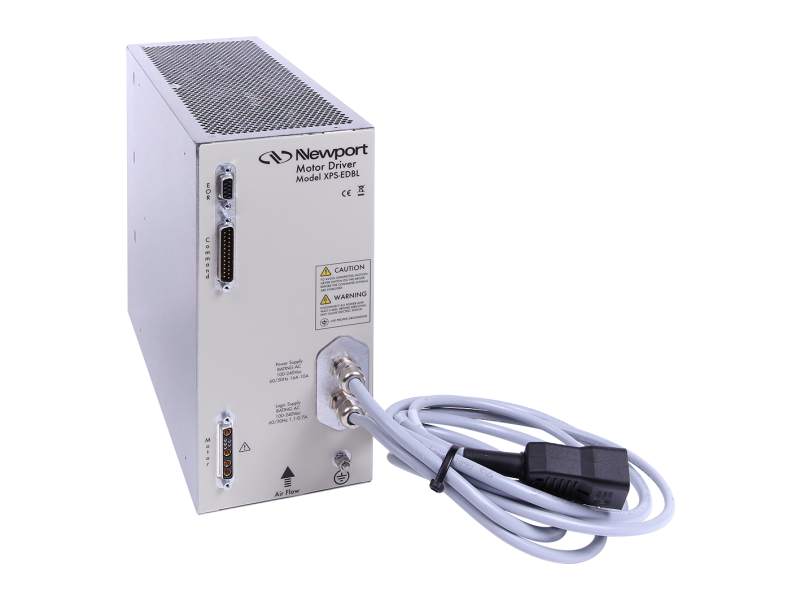

High-power, 3-Phase, Sinusoidal DC Brushless Motor Driver

Designed for DC brushless motors, the XPS-EDBL is a 3-phase sinusoidal motor driver (amplifier) which features 25 A peak current and +96 VDC voltage, up to 1,000 watts of permanent power when optional fans are mounted. The high power, enables the XPS-EDBL to fully utilize the motor further maximizing the stage performance. The XPS-EDBL high-power driver is also well suited for use in an Industrial Environment. The driver is fully protected with a 150 W power resistor to dissipate regeneration energy (back EMF) and two optional fans limit the temperature increase.

Included are the following components:

• 1×XPS-EDBL driver
• 1×XPS-DRV00P pass-through driver card
• 1×1 m Command cable - 25-pin male/female - DB25
