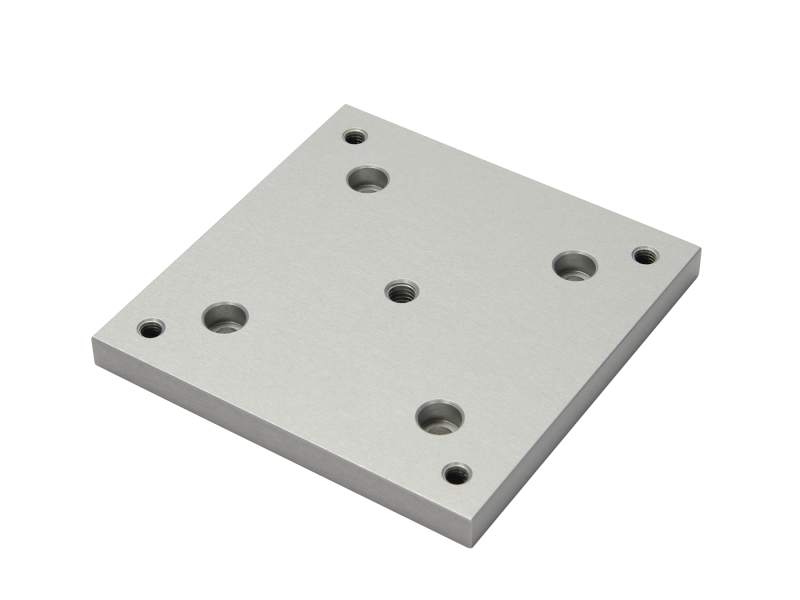

Mounting Plate, SLM-3A and RB335 to X95 Series Structural Rails
Mounting Plate, SLM-3A and RB335 to X95 Series Structural Rails
Model: X95-AP3
3 Weeks
Product Series Overview
X95 Structural Optical Rails and CarriersThe X95-AP3 Mounting Plate is used for mounting a SLM-3A or RB335 to a X95 Series Structural Rail.
Resources & Downloads
Literature
X95 Brochure(1.8 MB, PDF)
2D Product Drawings
X95-AP3(70.3 kB, PDF)
