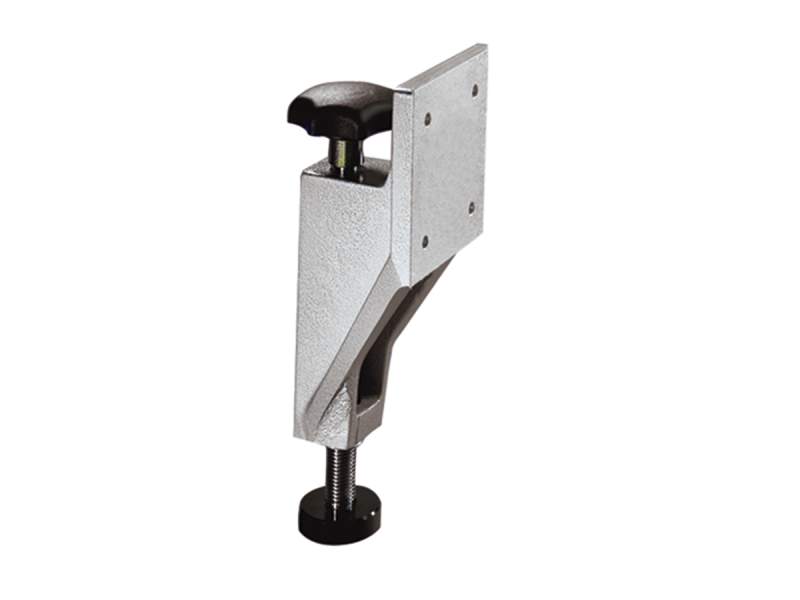

Side Mounted Leveling Foot, 240 lb. (110 kg) Maximum Load, X95 Series

X95 Structural Optical Rails and Carriers

The VS95 Side Mounted Leveling Foot can support a maximum load of 240 lb (110 kg).

Specifications

Technical Specs

Thread Type
M6 CLR
Load Capacity
110 kg

Thread Type
M6 CLR
Load Capacity
110 kg

Resources & Downloads

Literature

X95 Brochure(1.8 MB, PDF)

2D Product Drawings

VS95 DWG-S(74 kB, PDF)

Other

VS95 RoHS Certificate(282.9 kB, PDF)
