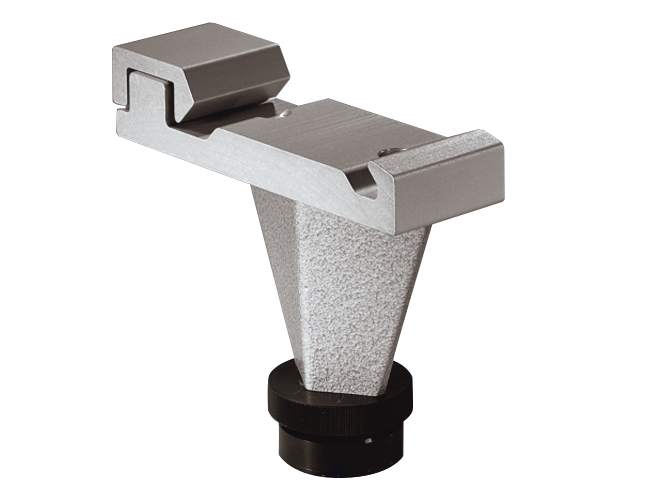

Single Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series

X95 Structural Optical Rails and Carriers

The BCX95S Span Support for X95 Series Structural Rails has a single bench leg, and a maximum load of 240 lb. (110 kg).

Specifications

Technical Specs

Length
50 mm
Load Capacity
240 kg

Length
50 mm
Load Capacity
240 kg

Resources & Downloads

Literature

X95 Brochure(1.8 MB, PDF)

2D Product Drawings

BCX95S-BCX95D DWG-S(78.7 kB, PDF)

Other

BCX95S_RoHS2021.pdf(684.8 kB, PDF)
