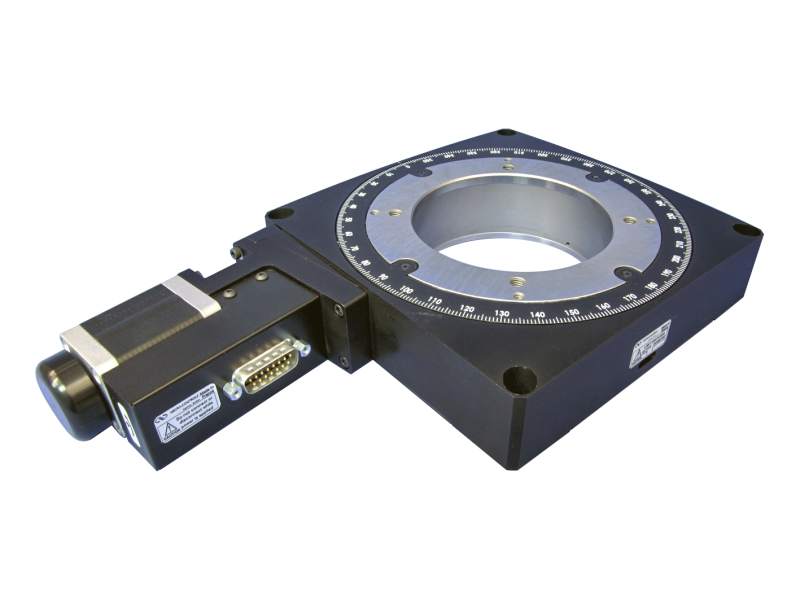

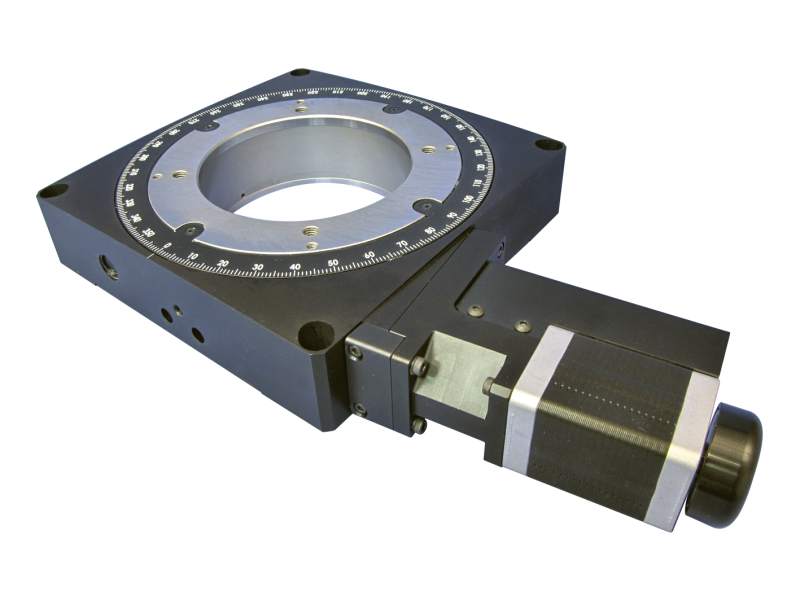

Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS150

URS Precision Stepper Motor Rotation Stages

The URS150BPP Rotation Stage provides precision 360° continuous motion in a low profile package. It meets the requirements of numerous research and industrial applications and is directly compatible with our XM, GTS, IMS and other series of linear stages. This 2 N·m maximum torque stepper motor version is a more economical for less demanding applications. All URS rotation stages feature a proprietary 4-point contact ball bearing. The unique, 2-piece design of the URS provides a low-profile compact stage with exceptional stiffness, high reliability and outstanding wobble and eccentricity.

Tilted Worm Screw

The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS-B stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to minimize backlash during operation.

URS50CPP Top View

Economical Micro-stepping Stepper Motor

The stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS or ESP30x, low noise operation and very small incremental motions are guaranteed. The stepper motor versions do not use encoder feedback, but reach a position by the number of commanded steps and microsteps. For this purpose, the stepper motor is directly attached to the worm screw using a proprietary bellows coupling that has a high torsional stiffness, eliminating the need for a gear or belt drive. The high output torque of the stepper motor minimizes the risk of lost steps and provides good linearity between commanded microsteps and the actual motion of the stage.

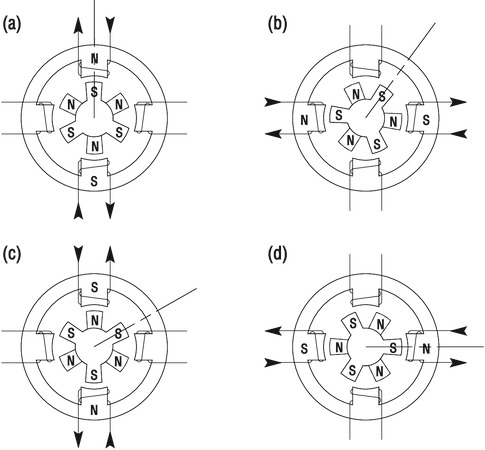

Basic working operation of a micro-stepping stepper motor

Proprietary Ball Bearings

All URS-B rotation stages feature a proprietary ball bearing to provide a low-profile compact stage with exceptional stiffness, high reliability and low wobble and eccentricity.

Limit Switches

Except for the URS50 version, all URS stages feature adjustable limit switches to prevent over travel.

Specifications

Technical Specs

Angular Range
360°
Maximum Speed
40°/s
Minimum Incremental Motion
0.20 mdeg
Maximum Torque
2 N·m

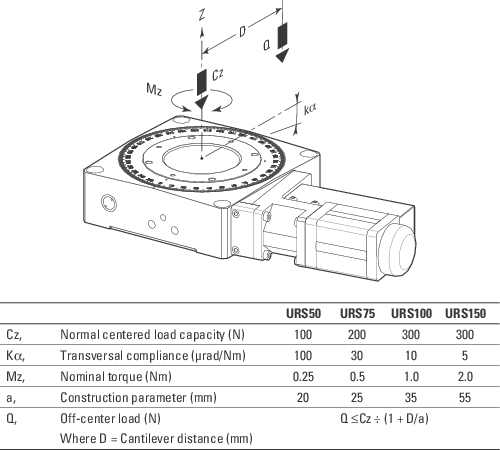

Centered Load Capacity
300 N
Uni-directional Repeatability, Typical
±0.35 mdeg
Uni-directional Repeatability, Guaranteed
±1.0 mdeg
Bi-directional Repeatability, Typical
±4.4 mdeg
Bi-directional Repeatability, Guaranteed
±6.0 mdeg
Accuracy, Typical
±8.0 mdeg
Accuracy, Guaranteed
±15 mdeg
Wobble, Typical
±12 µrad
Wobble, Guaranteed
±25 µrad

Eccentricity, Typical
±0.50 µm
Transversal Compliance
5 µrad/N·m
Origin Repeatability
±20 mdeg
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Aperture Diameter
90 mm
Thread Type
M6
Maximum Power Consumption
20 W
Weight
3.4 kg
Compliance
RoHS 3, CE

Angular Range
360°
Maximum Speed
40°/s
Minimum Incremental Motion
0.20 mdeg
Maximum Torque
2 N·m
Centered Load Capacity
300 N
Uni-directional Repeatability, Typical
±0.35 mdeg
Uni-directional Repeatability, Guaranteed
±1.0 mdeg
Bi-directional Repeatability, Typical
±4.4 mdeg
Bi-directional Repeatability, Guaranteed
±6.0 mdeg
Accuracy, Typical
±8.0 mdeg
Accuracy, Guaranteed
±15 mdeg
Wobble, Typical
±12 µrad
Wobble, Guaranteed
±25 µrad

Eccentricity, Typical
±0.50 µm
Transversal Compliance
5 µrad/N·m
Origin Repeatability
±20 mdeg
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Aperture Diameter
90 mm
Thread Type
M6
Maximum Power Consumption
20 W
Weight
3.4 kg
Compliance
RoHS 3, CE
