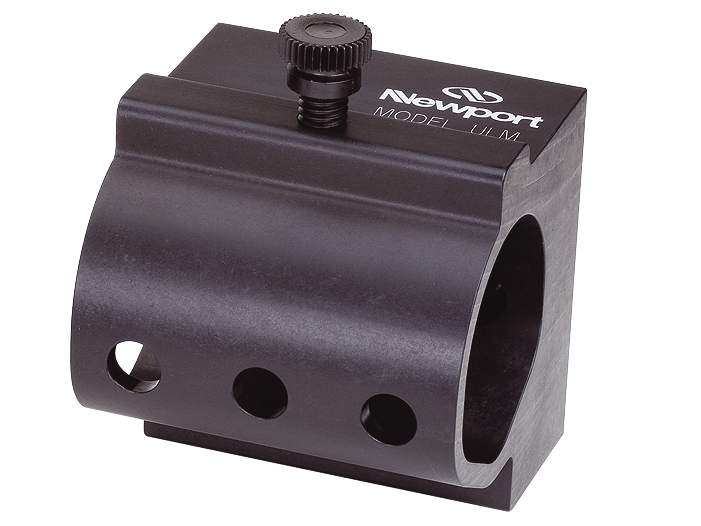

Cylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed
Cylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed
Model: ULM
Product Series Overview
Cylindrical Laser Rod MountsThe ULM Cylindrical Laser Mount is a fixed, non-adjustable laser mount that may be bolted to other components via three horizontal clearance holes. This laser is clamped in the same way as the ULM-TILT. ULM Series Cylindrical Laser Mounts attach to 340-RC and 370-RC Rod Clamps and provide a convenient way to attach any 1 to 1.75 in. (25.4 to 44.5 mm) diameter cylindrical laser to Newport positioners and tables. To prevent wobble, the laser head is held securely by a nylon thumbscrew against two full-length contacts formed by a V-groove.
Fixed Cylindrical Laser Mounts
The ULM is a fixed, non-adjustable laser mount that may be bolted to other components via three horizontal clearance holes.
Rod Mount a HeNe Laser
All the ULM Cylindrical Laser Mounts can be mounted to optical rod clamps, other Newport mounts or positioners via the clearance-mounting holes.
Secure V-Groove Contacts
To prevent wobble, the laser head is held securely by a nylon thumbscrew against two full-length line contacts formed by a V-groove.
Resources & Downloads
2D Product Drawings
ULM DWG-S(77 kB, PDF)
Other
ULM RoHS Certificate(278.3 kB, PDF) ULM_RoHS2021.pdf(680.7 kB, PDF)
