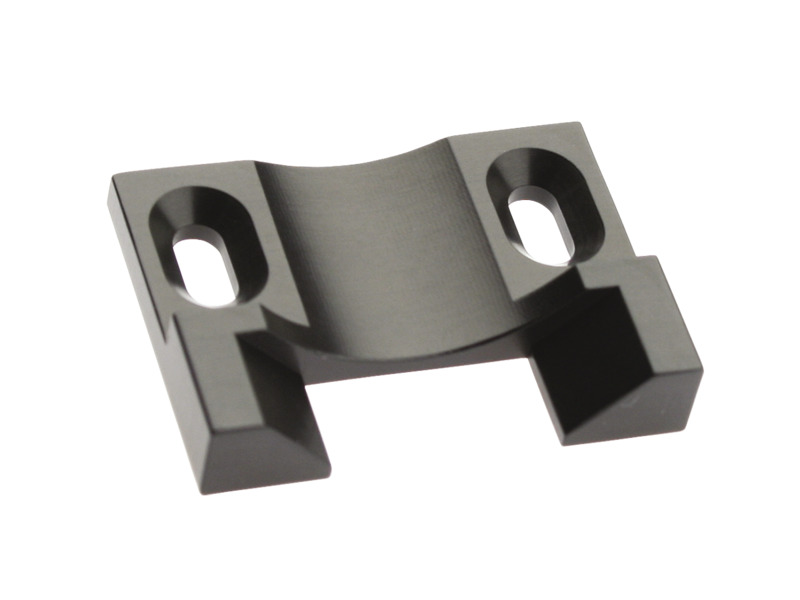

UGP Adapter Kit, 1in. (25.4mm) Spherical Optics
UGP Adapter Kit, 1in. (25.4mm) Spherical Optics
Model: UGP-KIT-3
Product Series Overview

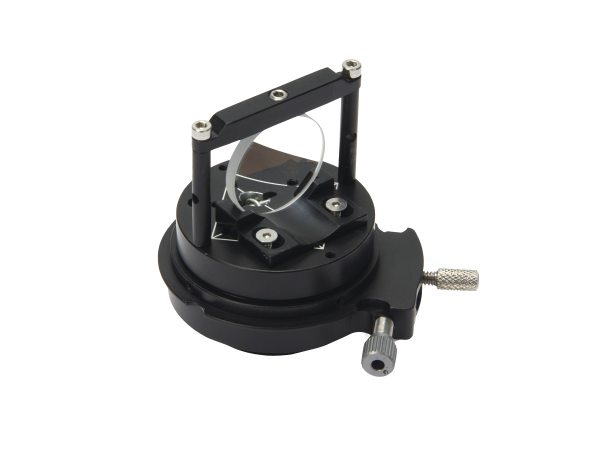

Gimbaled Three-Axis Optic Tilt MountsSpherical Optics Adapter Kit for UGP-1 ULTIMA® Gimbal Tilt Mount and OC1-CM-A OpticsCage+ Adjustable Cube Mount. Three M2.5 flat head screws are included.
Resources & Downloads
2D Product Drawings
UGP-KIT-3-258(157.4 kB, PDF)
Other
UGP-KIT-3_RoHS2021.pdf(681.7 kB, PDF)
