Motorized Actuator, Miniature, 6 mm Travel, Stepper, 25-pin D-Sub

The TRA6PPD Miniature Stepper Motor Actuator provides 6 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. 25-pin D-Sub connector.

Slim Design

TRA6 and TRA12 models provide 6 mm or 12 mm of travel in a slim, 15 mm diameter housing. The TRA25 provides 25 mm travel in a slightly larger 18 mm housing. The slim design minimizes the space used when upgrading a manual stage or optical mount to a motorized solution.

Replaces Micrometer Drives on Manual Stages

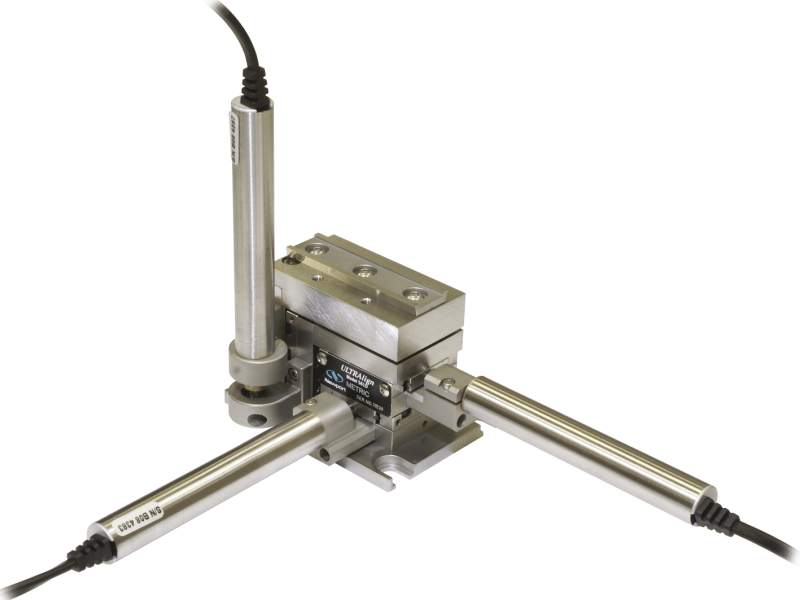

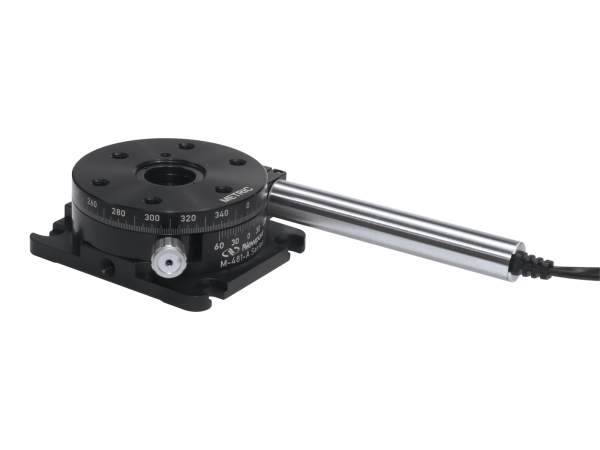

TRA actuators offer a similar form-factor as micrometer drives, allowing them to be used to upgrade manual stages with ease. The TRA6 models provide 6 mm travel and are the recommended choice for motorizing 561 Series linear stages, and 481 and RS65 rotation stages. The TRA12 models provide 12 mm travel and are compatible with Suprema and Ultima mirror mounts, ULTRAlign, and 460A Series linear stages. The TRA25 provides 25 mm travel in a slightly larger package and is the recommended choice for motorizing longer travel devices. Additionally, TRA actuators are mechanically compatible with other Newport mechanical products – for more details refer to the TRA and TRB Series Compatibility guide.

Hard Coated Actuator Tip

TRA actuators also feature a hard-coated steel ball tip that minimizes contact surface wear compared to other designs that use regular steel ball tips.

Integrated Optical Limit Switches

All TRA actuators include integrated optical limit switches. These highly reliable switches not only protect investments from over travel damage, they also provide a method for repeatable referencing/homing, for instance after shut-downs.

Specifications

Technical Specs

Travel Range
6 mm
Maximum Speed
0.4 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
60 N
Accuracy, Typical
±1.5 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.15 µm
Bi-directional Repeatability, Guaranteed
±1.25 µm
Uni-directional Repeatability, Typical
±0.10 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Drive Screw Pitch
0.5 mm
Reduction Gear
1:256

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Limit Switches
Optical switches, both ends
Cable Length
3 m
Connector Type
DB25 - Male
Power Consumption
5 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
6 mm
Maximum Speed
0.4 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
60 N
Accuracy, Typical
±1.5 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.15 µm
Bi-directional Repeatability, Guaranteed
±1.25 µm
Uni-directional Repeatability, Typical
±0.10 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Drive Screw Pitch
0.5 mm
Reduction Gear
1:256

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Limit Switches
Optical switches, both ends
Cable Length
3 m
Connector Type
DB25 - Male
Power Consumption
5 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE
