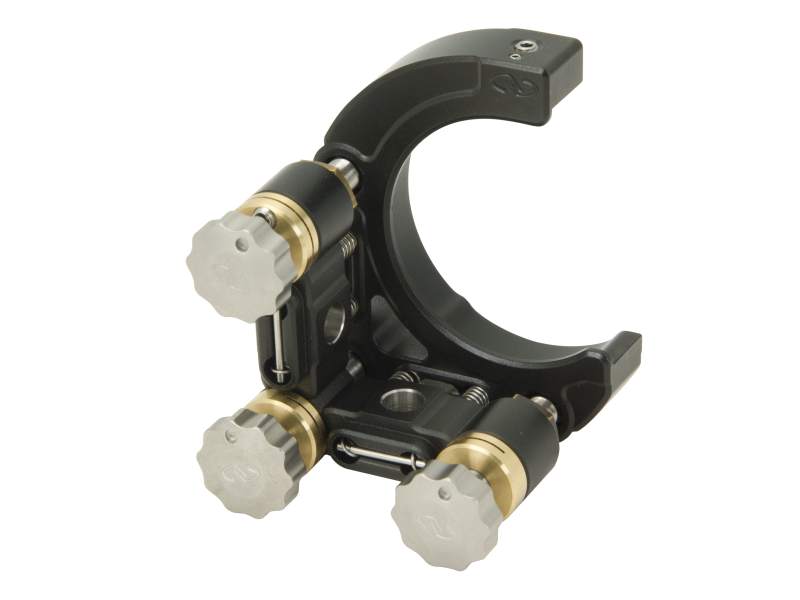

Mirror Mount, Suprema^® XTE, Clear Edge, 2.0 in., (3) 127-TPI Locking Hex

Model: SX200-F3K-127

Mirror Mount, Suprema^® XTE, Clear Edge, 2.0 in., (3) 127-TPI Locking Hex

Model: SX200-F3K-127

Clearance
Save 50% Off on Limited Stock Clearance Products!
Learn More

$363

Show

Add to List

Compare

Add to List

Overview

The new Suprema^® XTE is the highest performing mount in the Suprema family owing to new actuators, materials, and configuration. 127-TPI adjustment screws provide a 20% sensitivity advantage over the standard adjusters while the new stainless steel alloy gives a 38% lower Coefficient of Thermal Expansion (CTE). The Suprema XTE also has an optically black finish to reduce stray light reflections. SX200 mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This three actuator configuration has tip and tilt adjustability over a range of +/- 7 degrees as well as translation. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Product Series Overview

Suprema^® High Resolution - Low CTE Mirror Mounts

Technical Specs

Mechanism

Kinematic
Optic Diameter

50.8 mm
Number of Actuators

3
Adjustment Screw Thread

127 TPI
Adjustments

z, θx, θy
Sensitivity

3.0 arc sec

Angular Range

±7°
Material

Stainless Steel
Drive Type

Knob, locking
Thread Type

8-32 (M4) CLR
Special Features

Low Drift

Technical Specs

Mechanism

Kinematic
Optic Diameter

50.8 mm
Number of Actuators

3
Adjustment Screw Thread

127 TPI
Adjustments

z, θx, θy
Sensitivity

3.0 arc sec

Angular Range

±7°
Material

Stainless Steel
Drive Type

Knob, locking
Thread Type

8-32 (M4) CLR
Special Features

Low Drift

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SN200-F (272.4 kB, PDF)

Other

SX200-F3K-127 RoHS Certificate (263 kB, PDF)

Mirror Mount, Suprema^® XTE, Clear Edge, 2.0 in., (3) 127-TPI Locking Hex

Model: SX200-F3K-127

Clearance
Save 50% Off on Limited Stock Clearance Products!
Learn More

$363

Show

Compare

Add to List
