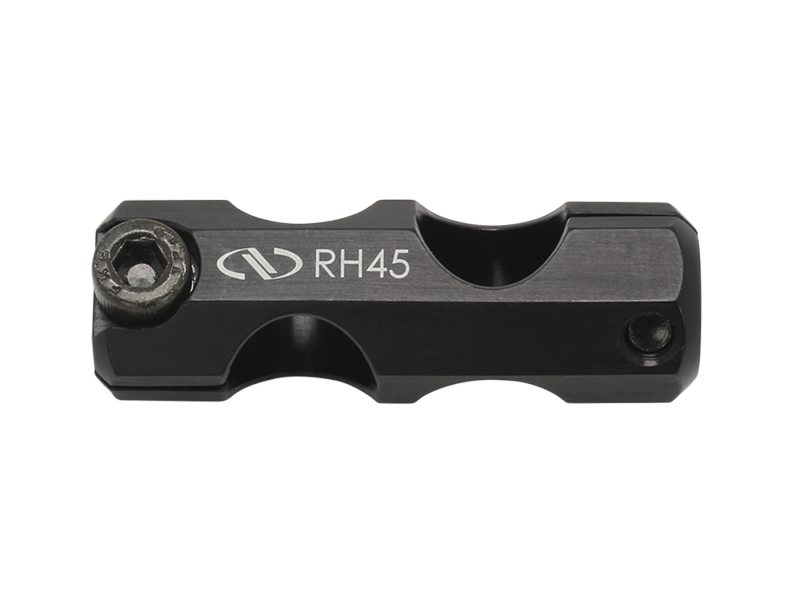

Optical Post Clamp, 45 Degree Right hand, 0.5 in Diameter Posts

Post-Joining Angle Clamps

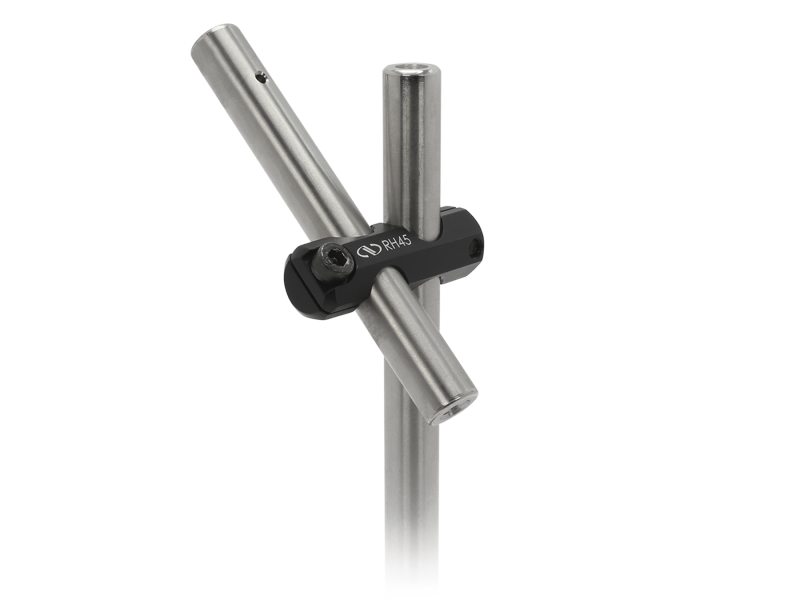

The RH45 optical post clamp is used to mount two 0.5 inch posts at a 45 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.

Specifications

Technical Specs

Type
45-Degree Post Clamp
Post Joining Angle
45°
Post Diameter
12.7 to 12.7 mm

Pack Quantity
1

Type
45-Degree Post Clamp
Post Joining Angle
45°
Post Diameter
12.7 to 12.7 mm

Pack Quantity
1

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

RH45.pdf(34.8 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9935Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$31
		CA-1Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
		CA-2Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$36

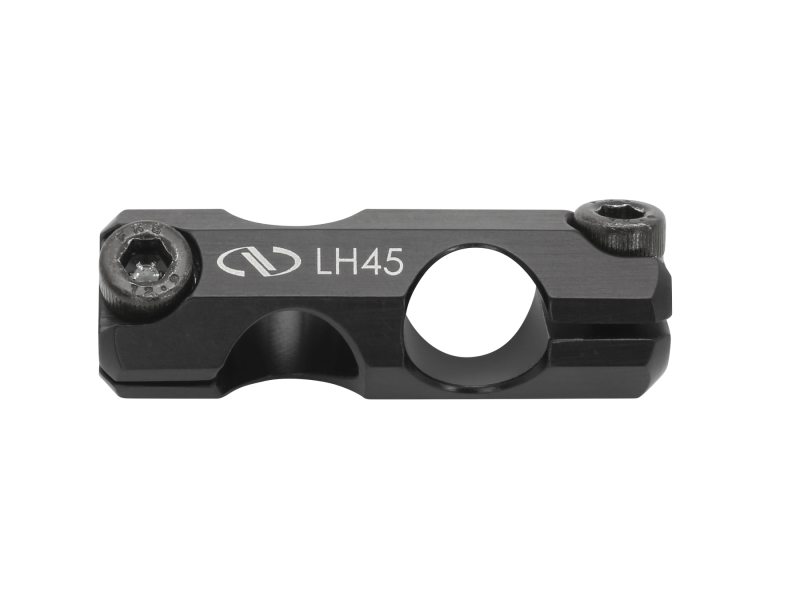

		LH45Optical Post Clamp, 45 Degree Left Hand, 0.5 in Diameter Posts	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$15.20
