Optical Post Clamp, Right-Angle, 1.0 in to 1.0 in Diameter Posts
Optical Post Clamp, Right-Angle, 1.0 in to 1.0 in Diameter Posts
Model: RA-1010
Product Series Overview

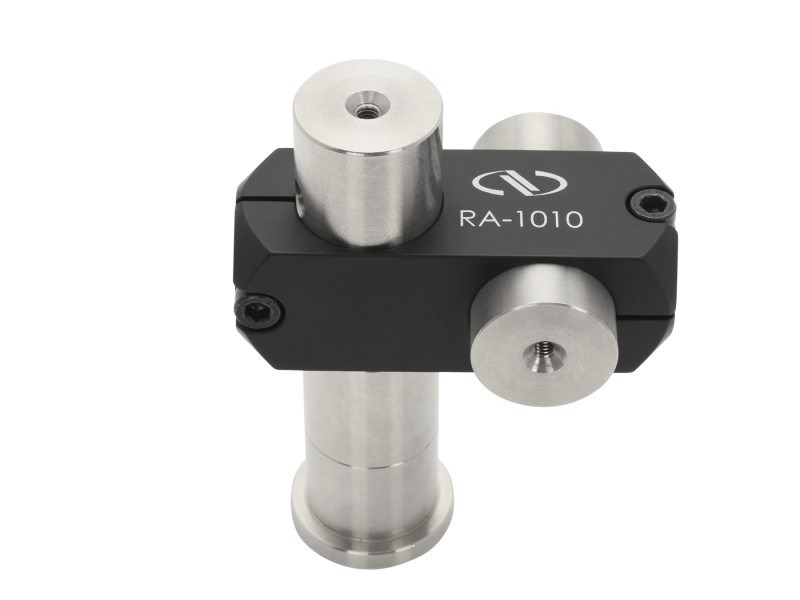

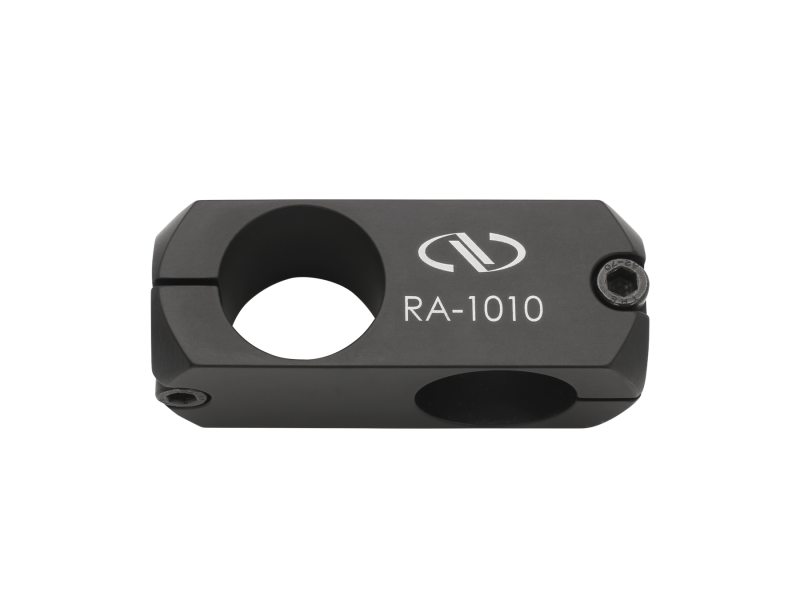

Optical Post Joining Flexure ClampsThe RA-1010 optical post clamp is used to mount two 1.0 inch posts at a 90 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.
Resources & Downloads
2D Product Drawings
RA-1010.pdf(37.1 kB, PDF)
Other
MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
