PVIV Probe Kit, PVIV and QE Systems

Oriel I-V Test Station

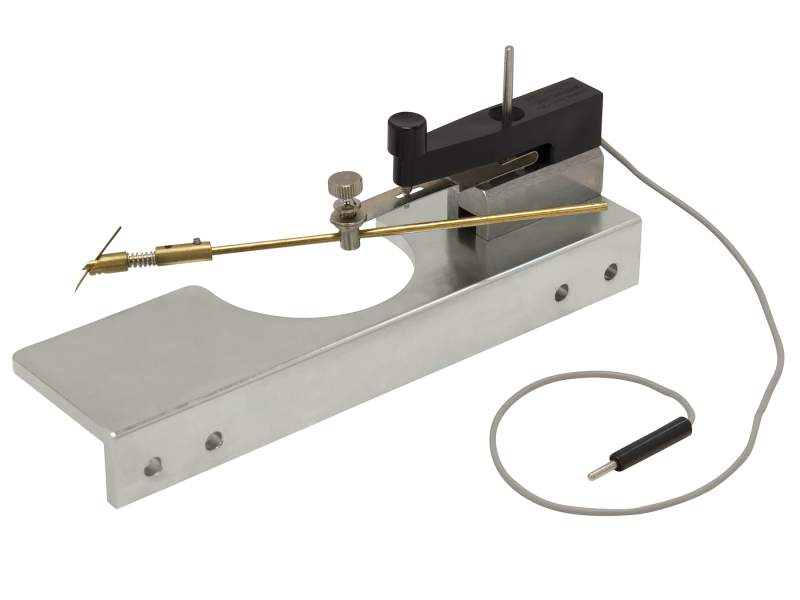

The PVIV-PROBE-KIT provides an electrical contact probe for use with the Oriel Instruments’ Quantum Efficiency and PVIV measurement systems. A convenient adapter plate allows the probe to mount easily onto a temperature controlled vacuum chuck.

Specifications

Technical Specs

Dimensions
3.75 In. high x 0.44 In. wide x 5 In. long at maximum arm extension
Weight
1 lbs.

Dimensions
3.75 In. high x 0.44 In. wide x 5 In. long at maximum arm extension
Weight
1 lbs.
