Water Chiller, Circulating Bath

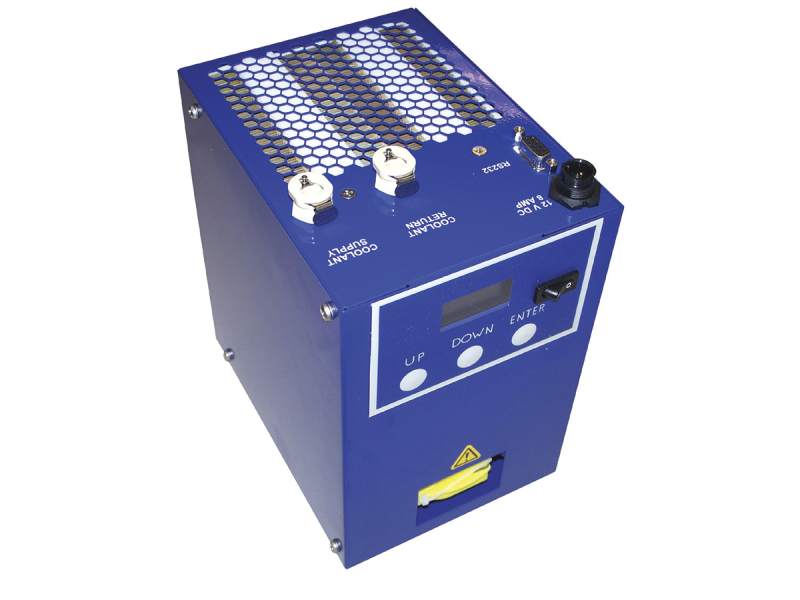

The PVIV-CHILLER is a circulating water bath heater and chiller, compatible with Oriel I-V test stations and Quantum Efficiency Measurement Systems. This chiller enables temperature control and stability of the sample under test when these test stations and measurement systems are used. It is mandatory to integrate this chiller with a TC-VAC mounting chuck, such as the PVIV-TC-VAC or IQE-200B-TC-VAC.

Simply add the required propylene/ethylene glycol and water mixture or just water to control the temperature of the sample mounting stage from 2 to 45˚C, when used in normal room temperature condition. All necessary tubing for connection to the sample stage is included and easy to setup.

Specifications

Technical Specs

Precision
< 0.1 °C with a constant load
Noise
<65 dB at 3 ft.
Communication Interface
Top panel or RS232
Operating Temperature Range
2 to 45°C
Operating Mode
Cool, Heat, Cycle
Power Requirements
13.5 VDC, 15 A - AC Adaptor included
Connection
1/8 in. CPC with shut-off valves
Coolant
25% propylene glycol/water preferred, ethylene glycol/water or water acceptable

Cooling Capacity
160 W at 20°C (20°C ambient)
Pump
0.5 lpm gear pump at 10 psi, with a magnetically-coupled brushless DC motor (10,000 hr MTBF)
Tank Volume
75 ml, additional coolant needed to fill hoses and cold plate.
Dimensions
7.5 inch x 5 inch x 7 inch [190 mm x 127 mm x 178 mm]
Weight
8.1 lbs. [3.7 kg]

Precision
< 0.1 °C with a constant load
Noise
<65 dB at 3 ft.
Communication Interface
Top panel or RS232
Operating Temperature Range
2 to 45°C
Operating Mode
Cool, Heat, Cycle
Power Requirements
13.5 VDC, 15 A - AC Adaptor included
Connection
1/8 in. CPC with shut-off valves
Coolant
25% propylene glycol/water preferred, ethylene glycol/water or water acceptable

Cooling Capacity
160 W at 20°C (20°C ambient)
Pump
0.5 lpm gear pump at 10 psi, with a magnetically-coupled brushless DC motor (10,000 hr MTBF)
Tank Volume
75 ml, additional coolant needed to fill hoses and cold plate.
Dimensions
7.5 inch x 5 inch x 7 inch [190 mm x 127 mm x 178 mm]
Weight
8.1 lbs. [3.7 kg]

Resources & Downloads

Literature

Oriel PVIV Test Solution Datasheet(570.7 kB, PDF)
Oriel QuantX-300 Quantum Efficiency System Datasheet(2.8 MB, PDF)
Oriel IQE-200B Quantum Efficiency System Datasheet(1 MB, PDF)

Manuals

Oriel PVIV-TC-VAC Temperature Controlled Chuck User Manual(617.3 kB, PDF)
Oriel IQE-200B-TC-VAC Temperature Control Vacuum Chuck User Manual(509.5 kB, PDF)
