High-Energy Pinhole, Molybdenum, 20 µm, Unmounted

High Energy Unmounted Molybdenum Pinholes

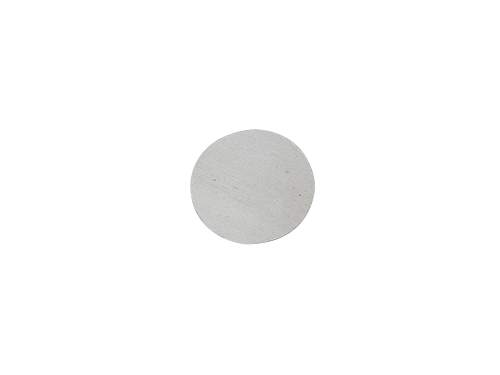

The PH-20 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 20 ± 2 µm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is unmounted.

Specifications

Technical Specs

Type
High Energy Pinhole
Mounting
Unmounted
Aperture Diameter
20 µm
Aperture Diameter Tolerance
±2 µm
Material
Molybdenum
Diameter
9.525 mm

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
or Pinhole Mounts

Type
High Energy Pinhole
Mounting
Unmounted
Aperture Diameter
20 µm
Aperture Diameter Tolerance
±2 µm
Material
Molybdenum
Diameter
9.525 mm

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
or Pinhole Mounts

Resources & Downloads

Other

PH-20 RoHS Certificate(263 kB, PDF)
PH-20_ROHS2-2021.pdf(278.7 kB, PDF)

2D Product Drawings

PH Series Drawing(73 kB, PDF)
