High Energy Pinhole Mount, Requires Unmounted Pinhole
High Energy Pinhole Mount, Requires Unmounted Pinhole
Model: 900P-MNT
Product Series Overview

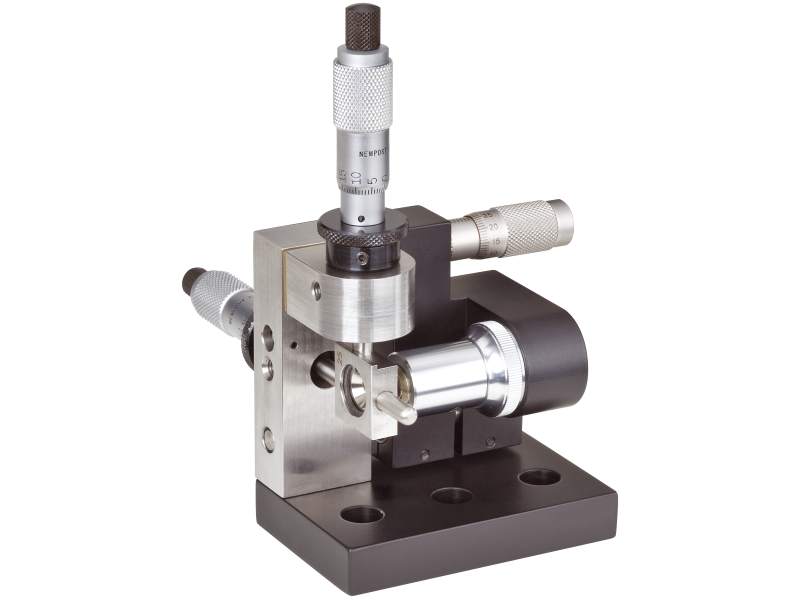

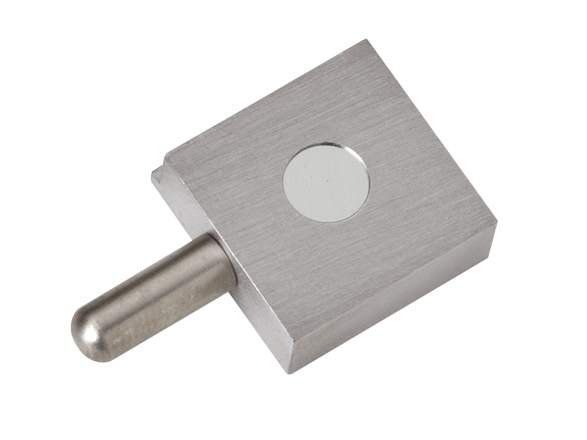

900 Series High Energy Mounted Molybdenum PinholesThe 900P-MNT Pinhole Mount is magnetically registered against the machined faces of the non-rotating X-Y adjustment spindles on a 900 Three-Axis Spatial Filter. A precision-machined slot in the pinhole mount mates repeatably to the spindle face, resisting accidental motion of the mount while permitting fine adjustment. Does not include pinhole.
Resources & Downloads
Other
900P-MNT RoHS Certificate(262 kB, PDF) 900P-MNT_RoHS2021.pdf(681.3 kB, PDF)
2D Product Drawings
900P-MNT DWG.pdf(207 kB, PDF)
