Pockels Cell Positioner, 80 TPI Hex Head Screws
Pockels Cell Positioner, 80 TPI Hex Head Screws
Model: PCH-1
Product Series Overview

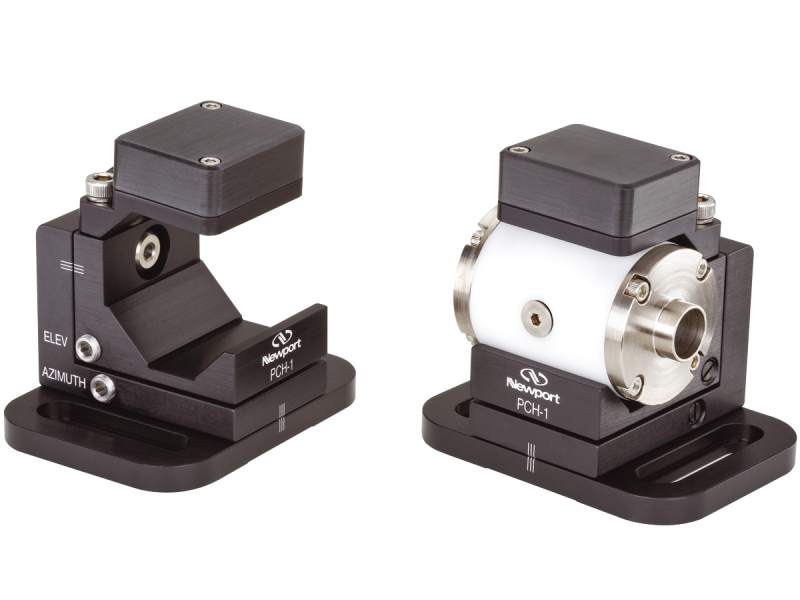

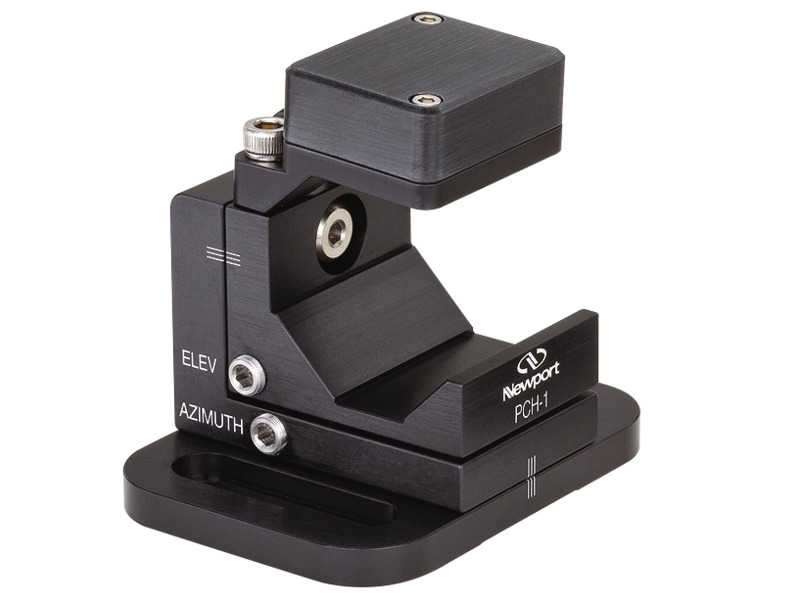

Pockels Cell PositionerNewport’s PCH-1 is the first commercially available device to accurately and repeatedly position various electro-optical devices, such as pockels cells. The compact size allows integration of the PCH-1 in optical systems where space is at a premium. Angular adjustments are accomplished using two high precision 80 TPI hex head screws. Special opposing screws are provided for locking the position. The addition of kinematic contact pads provide rock stable translation. Rotation is accomplished by rotating the device prior to securing the insulating Delrin retaining cap. Height adjustments can be made in increments of 0.125 in. by using spacers.
Resources & Downloads
2D Product Drawings
PCH-1 DWG-S(93.4 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-TAThread Adaptor Set, English | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | ULM-TILTCylindrical Laser Mount, 1.0-1.75 in., High-Resolution AJS Adjusters | In Stock | ||||

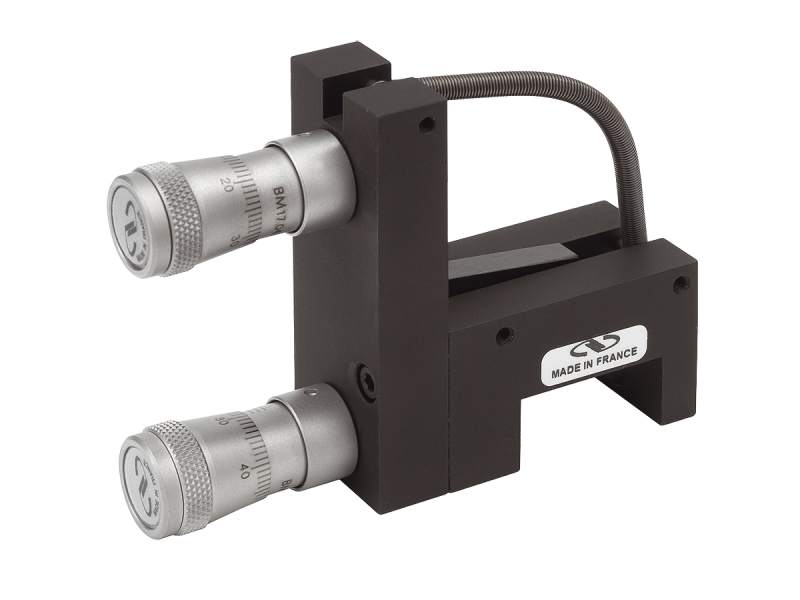

 | CT26.35BMCylindrical Laser Mount, 1.38 in. (35 mm), BM micrometers | |||||
 | ULMCylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | VB-2Cylindrical Device Mount, V-Block, 5 in. Length | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

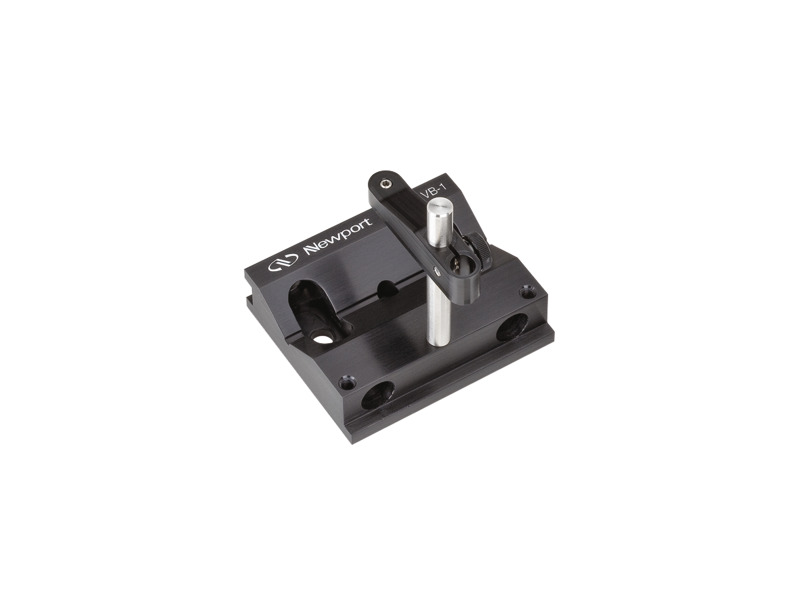

 | VB-1Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
