Adjustable Cube Mount, Optics Cage Plus

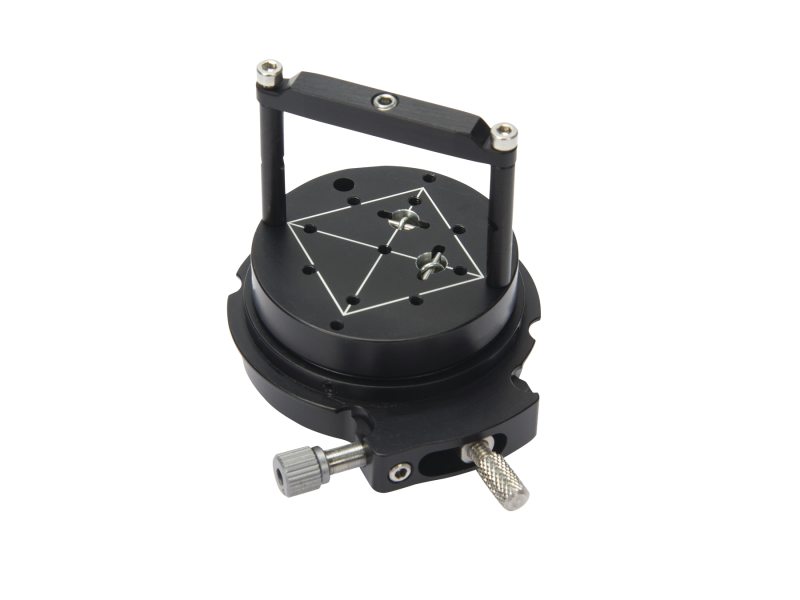

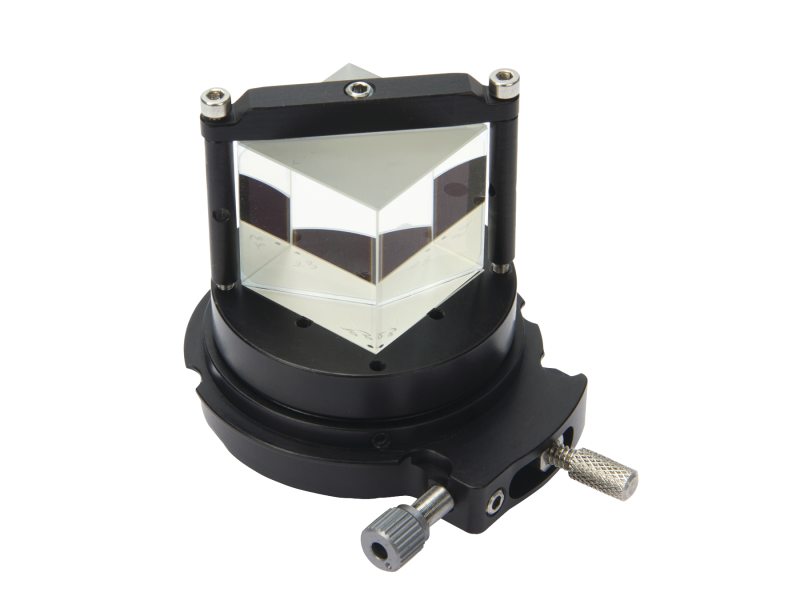

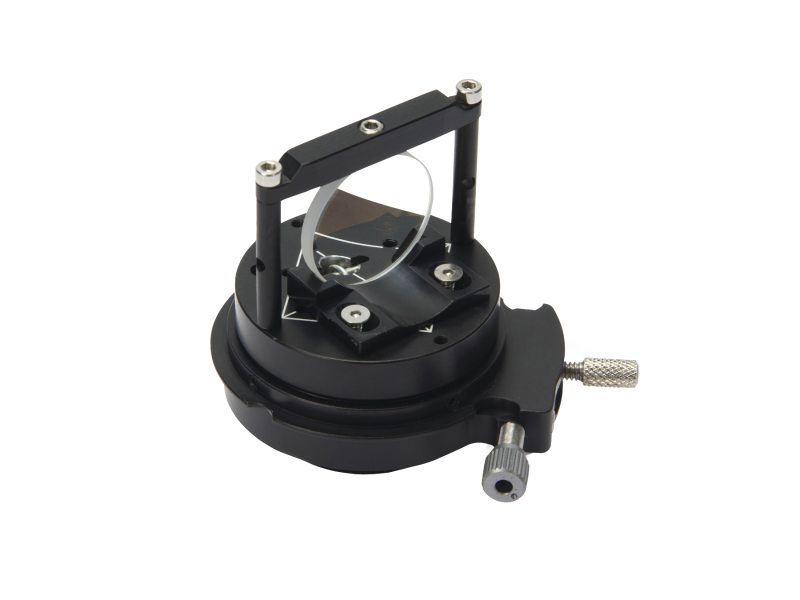

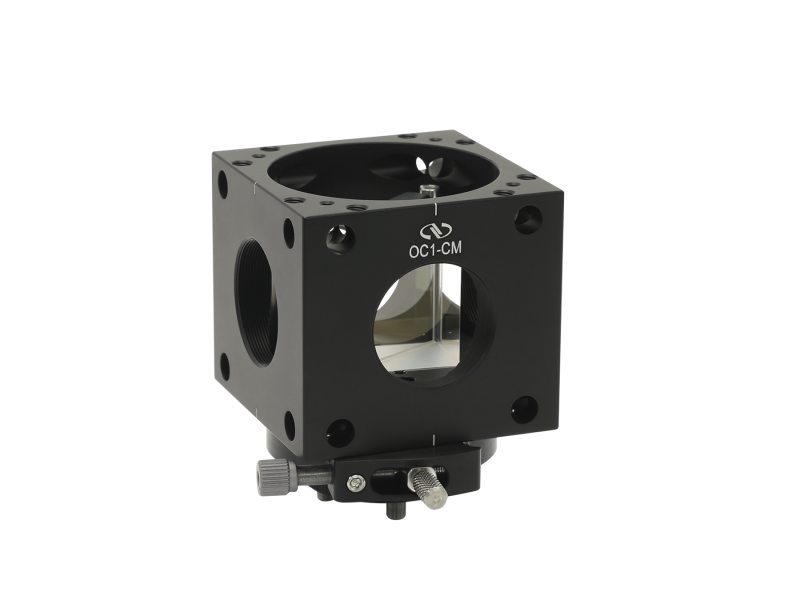

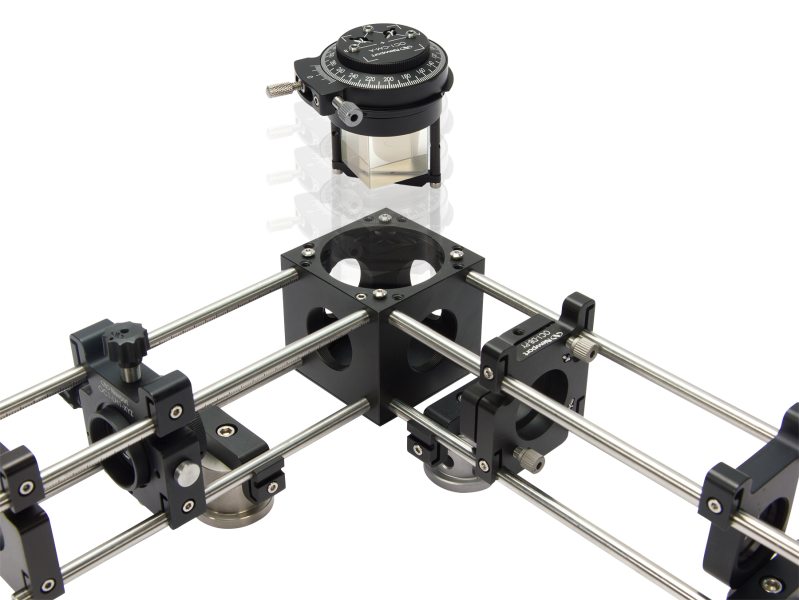

The OC1-CM-A Adjustable Cube Mount is designed to hold and align a variety of 1-in. cubes, prisms and other optical elements within the OpticsCage+™ OC1-CM Mounting Cube.  This mount is designed to provide easy access to its pitch, yaw and roll angular adjustment from above the cube mount rather than below. A series of laser-marked graphics are provided for proper cube mounting as well as revealing its orientation and axes of rotation while inside the cube. Additional types of optics can be mounted to the OC1-CM-A using the UGP-KIT series adaptors.  Note that the OC1-CM-A is meant to be mounted in the OC1-CM Mounting Cube; it cannot  be post-mounted on its own.
