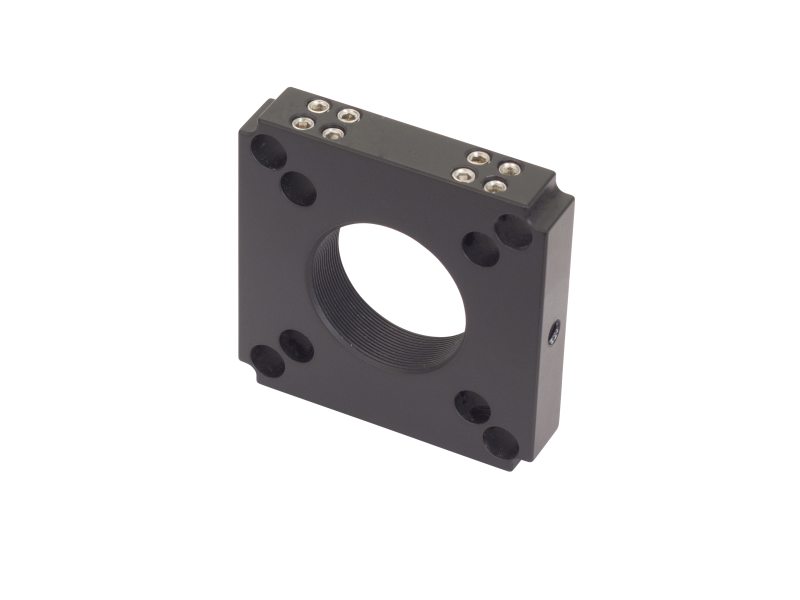

Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus

Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus

Model: OC1-A30

$44

Show

Compare

Add to List

Product Series Overview

Optics Cage Plus Fixed Optic Mounts

Optics Cage 30 mm Cage Adaptor, 1 in. OpticsCage+

Specifications

Technical Specs

Type

30 mm Cage Adapter
Clear Aperture

23.9 mm
Thread Type

1.035-40
Optic Diameter

25.4 mm

Optic Thickness

6.4 mm
Material

Aluminum

Type

30 mm Cage Adapter
Clear Aperture

23.9 mm
Thread Type

1.035-40
Optic Diameter

25.4 mm

Optic Thickness

6.4 mm
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

OC1-A30 AND OC1-LH1-S-save (136.1 kB, PDF)

Other

OC1-A30 RoHS Certificate (278.6 kB, PDF)
OC1-A30_RoHS2021.pdf (683 kB, PDF)
