Cube Mount Base, Optics Cage Plus
Cube Mount Base, Optics Cage Plus
Model: OC1-CM-B
Product Series Overview

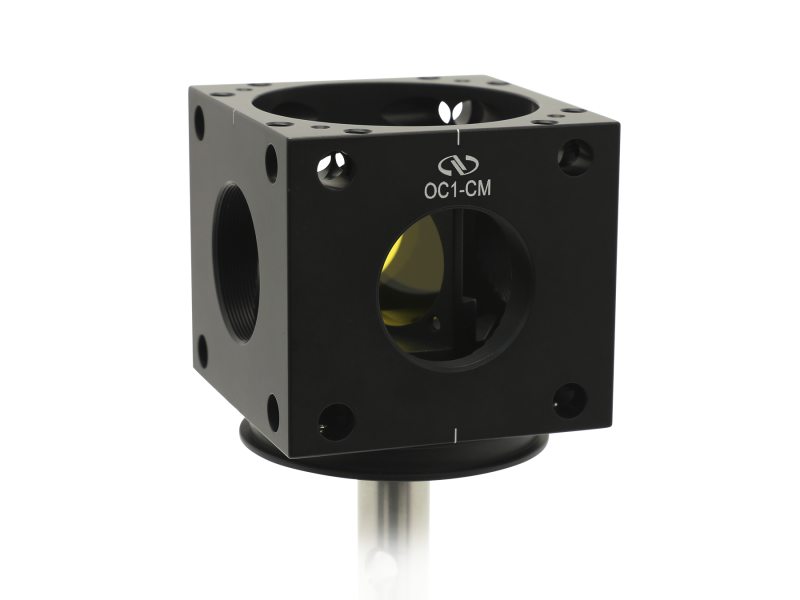

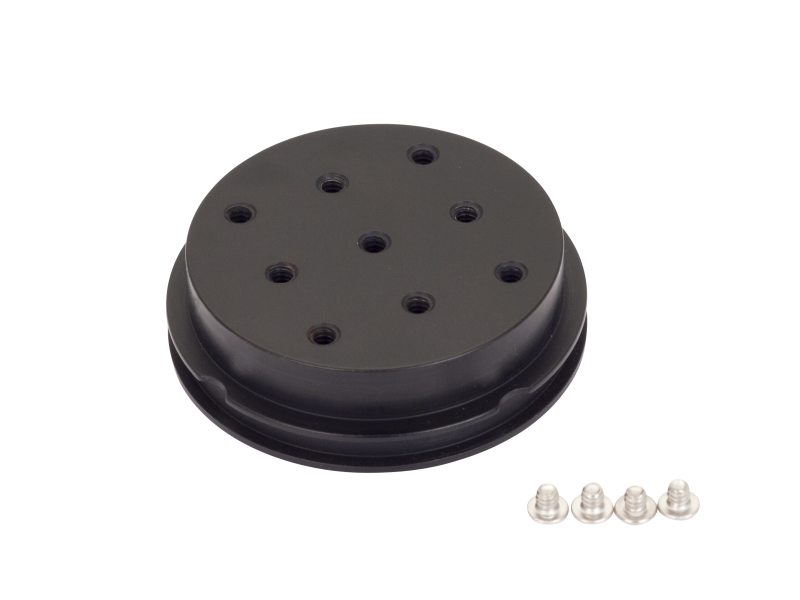

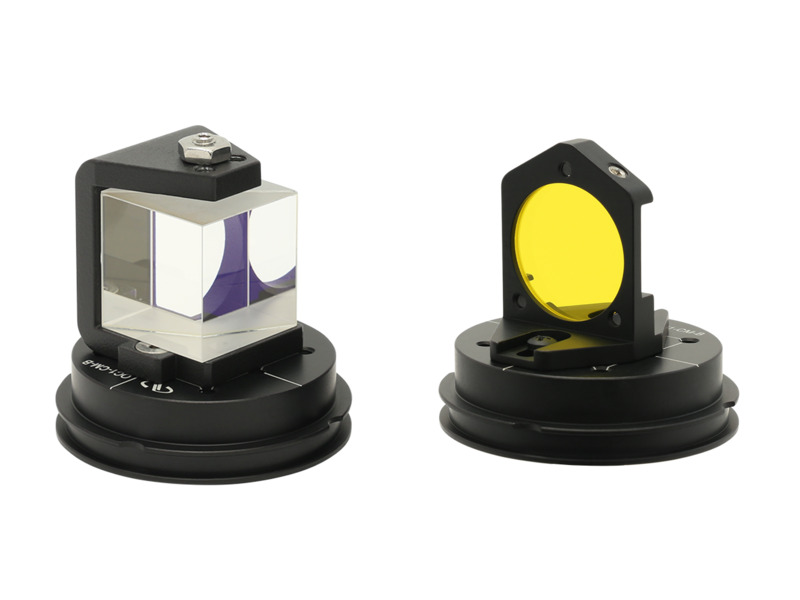

Optics Cage Plus Mounting CubeOC1-CM-B Cube Mount Base is designed to support OC1-CM-P prism mount, OC1-CM-F beamsplitter mount, or OC1-CM-D dichroic filter mount within the OC1-CM mounting cube. It features an 8-32 threaded hole at the bottom for post mounting.
Resources & Downloads
2D Product Drawings
OC1-CM-B-334(121.2 kB, PDF)
Other
OC1-CM-B RoHS Certificate(277.5 kB, PDF)
