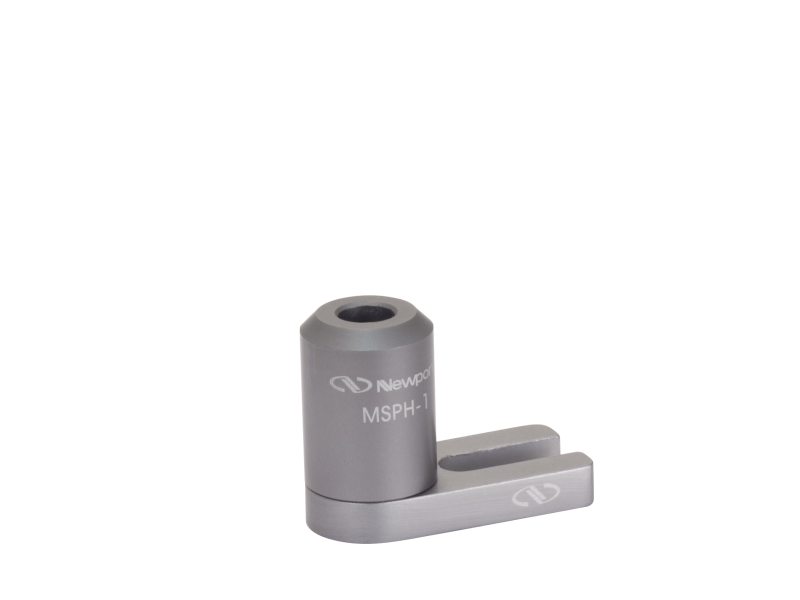

Optical Post Holder, 1.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base

Model: MSPH-1

$14

In Stock

Compare

Add to List

Product Series Overview

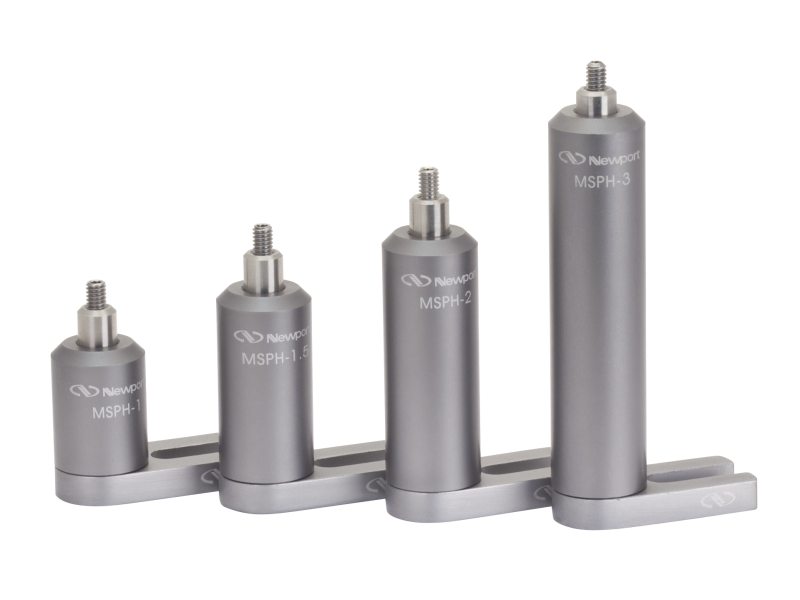

Miniature Slotted Base Optical Post Holders

The MSPH-1 is a low-cost, slotted-base post holder for miniature 5/16 in. diameter MSP-Series posts. The 1/4-20 (M6) slotted base allows this post holder to be used on standard optical tables right along side standard-sized post holders and pedestals. The MSPH post holders facilitate the creation of more compact setups through the use of smaller sized optical mounts.

Specifications

Technical Specs

Type

Optical Post Holder
Height

1.25 in. (31.8 mm)
Thread Type

1/4-20 (M6) Slot

Material

Aluminum
Diameter

7.9 mm

Type

Optical Post Holder
Height

1.25 in. (31.8 mm)
Thread Type

1/4-20 (M6) Slot

Material

Aluminum
Diameter

7.9 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MSPH (158.5 kB, PDF)

Other

MSPH-1 RoHS Certificate (279.6 kB, PDF)
MSPH-1_RoHS2021.pdf (686.9 kB, PDF)
