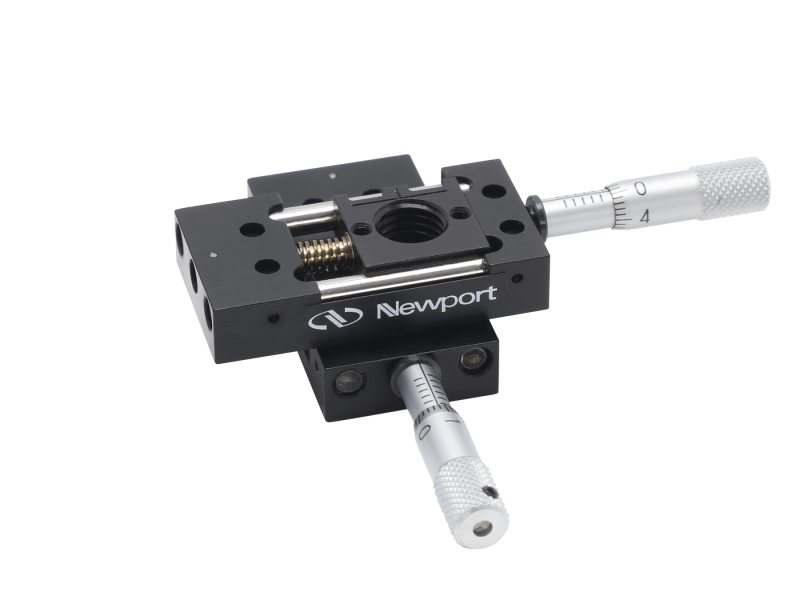

XY Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load

  • Axes of Travel
    X, Y
  • Maximum Stage Travel
    5 mm
  • Centered Normal Load Capacity
    3.3 N
  • Return Force
    170–567 g
  • Recommended Actuators
    Included
  • Sensitivity
    2 µm
  • Angular Deviation
    <200 µrad
  • Wobble, Guaranteed
    0.01 mrad
  • Material
    Aluminum
  • Bearings
    Dowel Pin Bearing
  • Drive Location
    Center drive
  • Dimensions
    36.3 x 19.1 x 7.6 mm
  • Thread Type
    2-56 and 5/16-24
