XY Linear Stage, 1.0 in. Travel, 8-32 and 1/4-20, Vacuum, Left-Handed

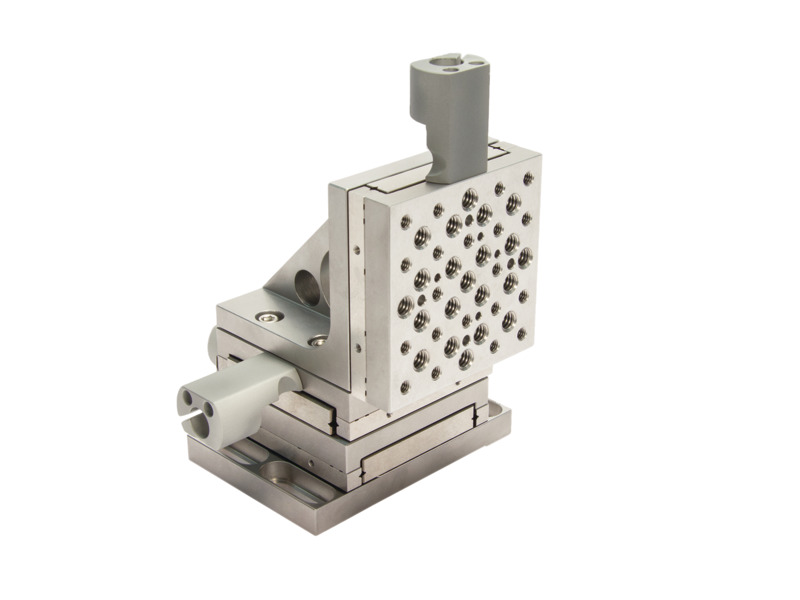

1.0 in. Travel Vacuum Compatible Crossed Roller Bearing Linear Stages

The 9067-XY-L-V Vacuum Compatible Left-Handed Configured Stainless Steel Crossed-Roller Bearing Linear Translation Stage is a 1.0 inch (25.4 mm) travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. These stages are clean assembled and utilize low vapor pressure grease appropriate for vacuum and clean environments. 9067 series stages feature a generous pattern of twenty 8-32 and twenty one 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8302-V vacuum compatible picomotor actuator for vacuum applications.

Specifications

Technical Specs

Axes of Travel
X, Y

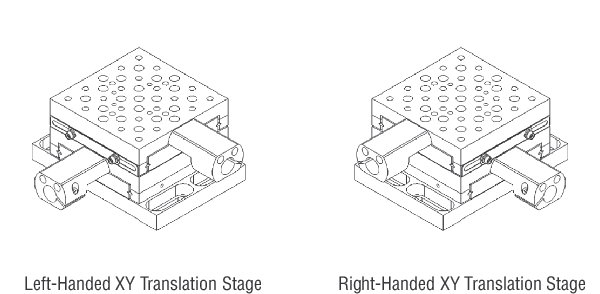

Orientation
Left-Handed
Maximum Stage Travel
25.4 mm
Centered Normal Load Capacity
222 N
Vertical Axial Load Capacity
80 N
Angular Deviation
150 µrad
Material
Stainless Steel

Bearings
Crossed-Roller Bearings
Thread Type
8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8302-V

Axes of Travel
X, Y
Orientation
Left-Handed
Maximum Stage Travel
25.4 mm
Centered Normal Load Capacity
222 N
Vertical Axial Load Capacity
80 N
Angular Deviation
150 µrad
Material
Stainless Steel

Bearings
Crossed-Roller Bearings
Thread Type
8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8302-V

Resources & Downloads

2D Product Drawings

9067-XY(121.4 kB, PDF)
9067-XYa-Drawing.pdf(185.8 kB, PDF)
