Linear Stage, 1.0 in. Travel, 8-32 and 1/4-20, Vacuum, No Baseplate
Linear Stage, 1.0 in. Travel, 8-32 and 1/4-20, Vacuum, No Baseplate
Model: 9067-COM-V
Product Series Overview

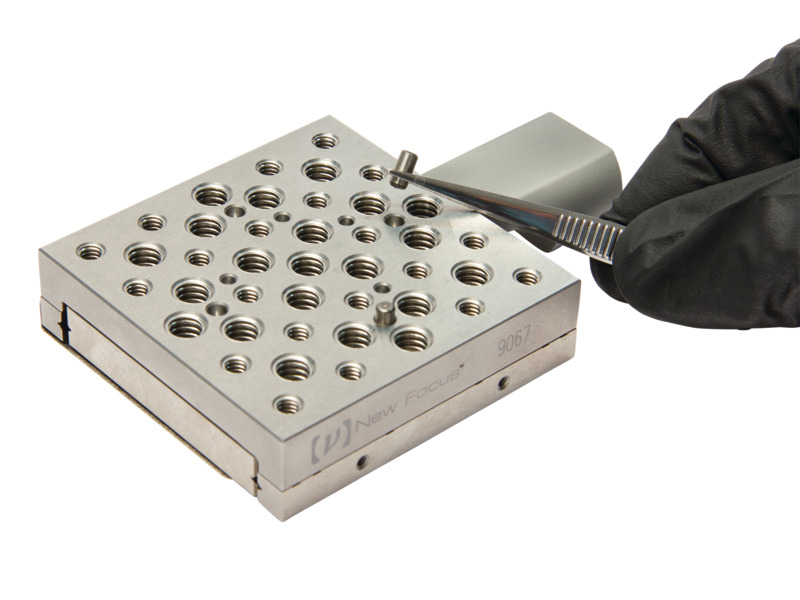

1.0 in. Travel Vacuum Compatible Crossed Roller Bearing Linear StagesThe 9067-COM-V Vacuum Compatible Stainless Steel Commercial Stages is a 1.0 inch (25.4 mm) travel linear translation stage designed to fit directly into your system. This stage has a reduced profile by eliminating the mounting plates. 9067 series stages feature a generous pattern of twenty 8-32 and twenty one 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8302-V vacuum compatible picomotor actuator for vacuum applications.
Resources & Downloads
2D Product Drawings
9067-COMb-Drawing.pdf(131.3 kB, PDF) 9067-COM.pdf(101.2 kB, PDF)
