Motorized Vertical Stage, 50 mm Travel, Linear Motor, 5 N Load
Motorized Vertical Stage, 50 mm Travel, Linear Motor, 5 N Load
Model: MLT50-Z
8 Weeks
Product Series Overview

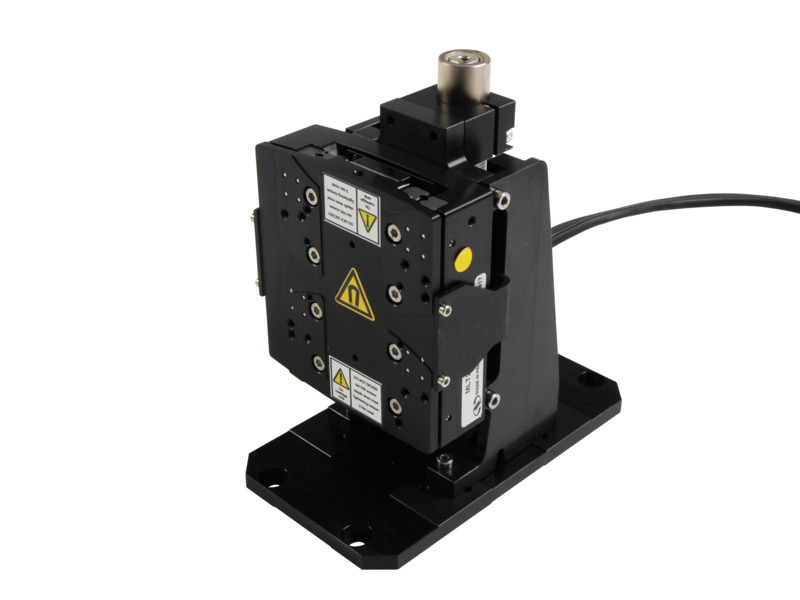

Ultra-High Precision, Linear Motor Vertical Stages, MLT-Z SeriesThe MLT50-Z is a high performance linear vertical stage, that offers 50 mm travel. It features a magnetic spring balancing system, sized to compensate up to 0.5kg load. The MLT50-Z is delivered with 4 countermass plates (0.1 kg each), which quantity should be adjusted based on customer payload when in use.
Specifications
- Travel Range50 mm
- Minimum Incremental Motion5 nm
- Maximum Speed500 mm/s
- Maximum Acceleration0.5 g
- Maximum Continuous Force3 N
- Centered Load Capacity5 N
- Accuracy, Guaranteed±0.7 µm
- Bi-directional Repeatability, Guaranteed±0.15 µm
- Drive TypeIronless Motor
- Feedback1 Vpp 20 µm pitch
- Pitch, Guaranteed±75 µrad
- Yaw, Guaranteed±75 µrad
- Flatness, Guaranteed±2 µm
- Straightness, Guaranteed±2 µm
- Cable Length2.9 m
- Weight3.2 kg
- MTBF20,000 h (100% load, 60% duty cycle)
- ComplianceRoHS 3, CE
Resources & Downloads
3D Product Models
2D Product Drawings
MLT-Z Dimensions(685.6 kB, PDF)
Other
MLT EU27 Dec of Conf.pdf(240.4 kB, PDF)
Related Products
Compatible Controllers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver1XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver2XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver |
Notes:
- Requires XPS-DRV11 Driver Module.
Requires XPS-DRV11 Driver Module. Not compatible with XPS-RLDM
