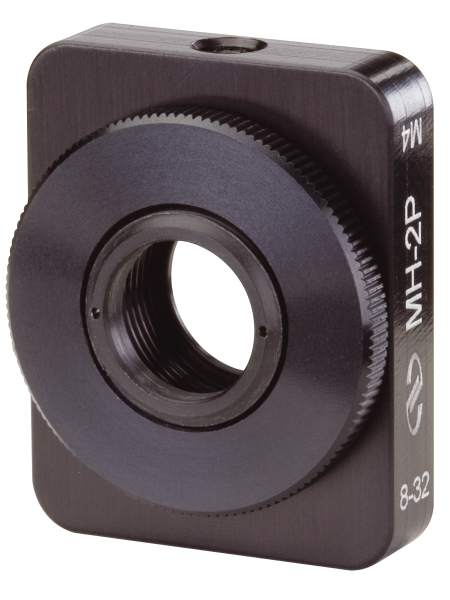

Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter
Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter
Model: MH-2P
Product Series Overview

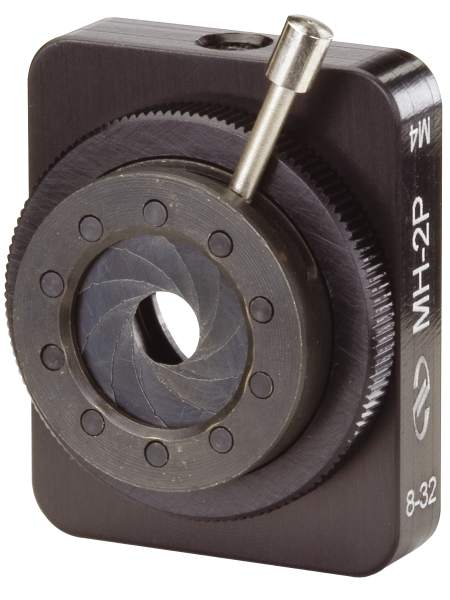

0.75 Inch Fixed Lens MountThe MH-2P Fixed Position Lens Mount securely holds 0.75 in. (19.1 mm) optics and is ideal for use with post systems as well as our MRL Series mini rails and MT Series compact linear stages. The MH-2P accommodates 0.75 in. (19.1 mm) optics directly or 0.5 in. (12.7 mm) optics using an A-75-50 adaptor. When combined with MLH-0.5 optic adapter, 0.5 in. polarizers can be integrated into your optical system. The MH-2P is designed for direct attachment to MCF rail carriers with an adaptor washer, and using one half of an MT-AB2 bracket as an adaptor plate, on MT Series linear stages.
Resources & Downloads
2D Product Drawings
MH-2P-248(138 kB, PDF)
Other
MH-2P RoHS Certificate(277.7 kB, PDF) MH-2P_RoHS2021.pdf(685.6 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | ID-0.5Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | U100-A2KMirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PS-F-1.0Clamping Fork, 1.0 in. Diameter Pedestal, 1.0 in. Slot Length, 1/4-20 (M6) Slot | 2 Weeks | ||||
 | PS-1Optical Pedestal, 1.0 in. Height, 1.0 in. Diameter, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PS-0.125Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PX-FM1Fixed Mirror Mount, PX Series, 1 in., Stainless Steel | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | ID-0.5-PKIris Diaphragm Pack, 1 - 11 mm Aperture Range, 8-32, 10 Leaves, Qty 6 | In Stock | ||||
 | HVM-1iMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

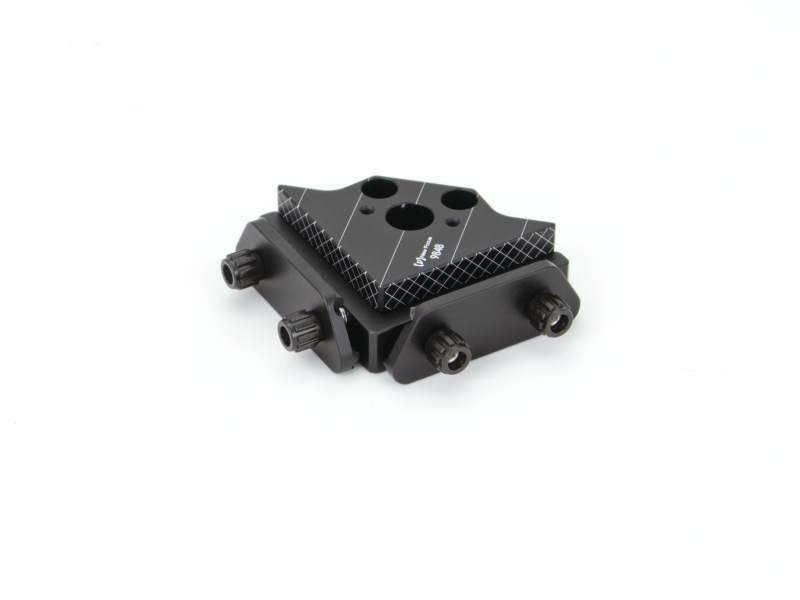

 | 9848Mirror Mount, Optical Delay Line | In Stock | ||||
